Overview

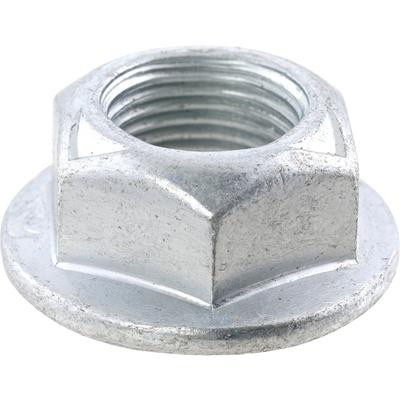

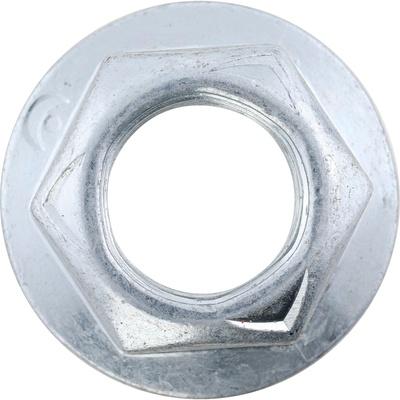

The Dana Spicer D/S50560 is a differential pinion shaft nut for the rear Dana 44 axle on Jeep Wrangler TJ and LJ models. It is a hex head nut with 3/4-16UNF threads and a thickness of 0.655.
It fits 1997–2006 Jeep Wrangler TJ and 2004–2006 Wrangler LJ Unlimited models in several trims, which are covered below.
Key features
- Hex head design, hex size 1.107
- 3/4-16UNF thread
- Thickness 0.655
- Rear differential position
Pinion nut and axle service
The pinion shaft nut is part of the pinion bearing assembly, so its condition affects the whole gear set. On older Wrangler TJ and LJ rear axles, the nut and the pinion yoke or flange should be inspected together for wear, thread damage or flattened areas, because loose parts can cause clunks and gear damage.
When an axle is opened, clean the threads and sealing surfaces and use fresh gear oil that suits the axle. Ask a technician to check the pinion bearing preload and the ring and pinion pattern, since small changes after service can affect noise and wear. Driving with a loose pinion nut should be avoided.
- Inspect thread and yoke or flange
- Check for leaks at the pinion seal
- Replace worn parts during axle service
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | D/S50560 |
| Position | Rear differential |
| Axle | Dana 44 (TJ and LJ) |
| Head style | Hex head |
| Hex head size | 1.107 |
| Thread | 3/4-16UNF |
| Thickness | 0.655 |
Vehicle fitment
It fits 1997–2006 Jeep Wrangler (TJ) in the 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X trims, and 2004–2006 Jeep Wrangler (LJ) in the Unlimited and Unlimited Rubicon trims.
Wrangler JK and JL models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The pinion nut sets the preload of the pinion bearings, so an experienced axle technician should install it and check the setup.
What’s included
One pinion shaft nut is included. Check the package contents against your installation before starting.
