Overview

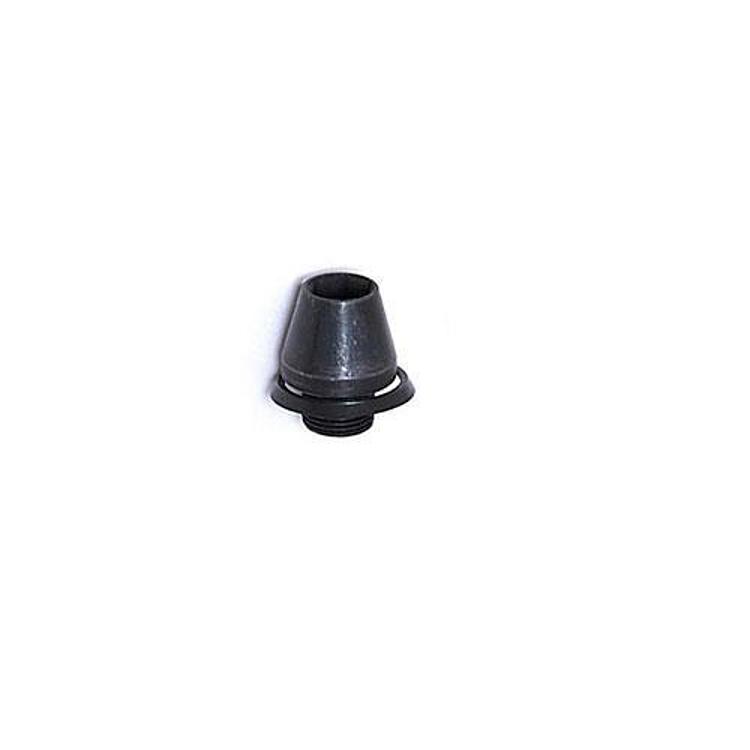

The Dana Spicer 37302 is an upper king pin bushing for the Dana 60 front axle. It rides on the upper king pin inside the knuckle, is sold for one side only, and helps tighten up a sloppy knuckle.
No truck, Jeep or model year is named for this part. Its fit is described by axle type and location: front Dana 60 and Dana 61 axles, which makes it an axle-specific component rather than a part for one vehicle.
Key features
- Upper king pin bushing that rides on the king pin
- Helps reduce looseness at the knuckle
- Single side only
- Made for front Dana 60 and Dana 61 axles
Fitting a king pin bushing
The king pin bushing supports the upper pin inside the knuckle, keeping the steering pivot aligned. As it wears, the knuckle can rock on the pin, causing a loose steering feel, play at the top of the wheel, or a knocking sound over bumps. Replacing a worn bushing restores the pivot’s fit before other parts are affected.
Before pressing in a new bushing, measure the king pin bore and check for scoring or elongation. A bore that is worn oversize may need repair rather than a bushing alone. Clean the bore, use the right driver to avoid crushing the bushing, and make sure the bushing sits square. Because each side is separate, service both upper bushings at the same time and check the lower joints and bearings while the knuckle is off.
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 37302 |
| UPC | 23913139322 |
| Position | Upper king pin, one side |
| Axle location | Front |
| Axle type | Dana 60, Dana 61 |
Vehicle fitment
Fitment follows the front axle type: Dana 60 or Dana 61. Confirm the axle type and location before ordering, and check the year, model and trim against your truck.
Rear axles and other front axle families fall outside the axle types given. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An upper king pin bushing is normally replaced with the knuckle off the axle. Have a shop experienced with Dana 60 front ends check the king pin bore and bushing fit.
What’s included
One upper king pin bushing for one side of the axle. No other hardware is described.
