Overview

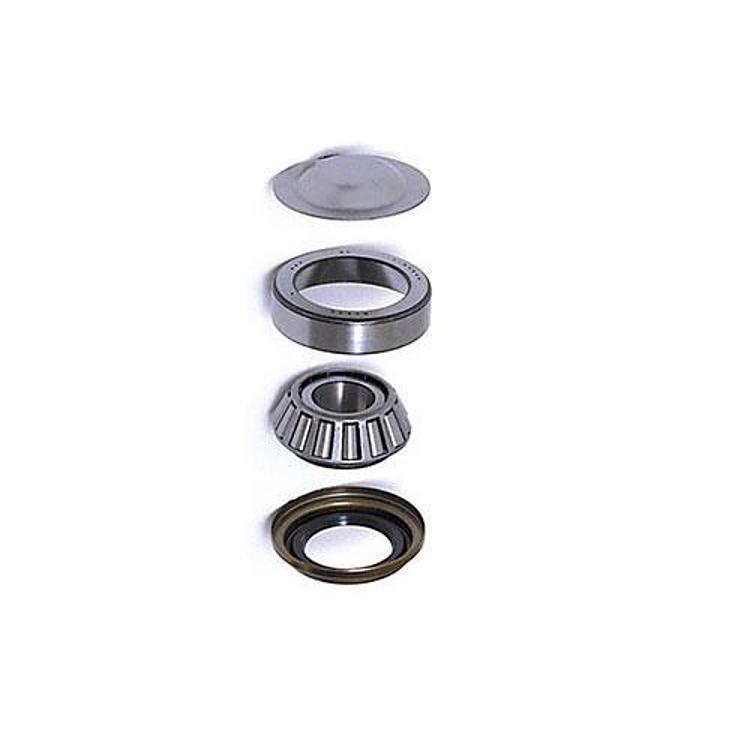

The Dana Spicer 706395X is a lower king pin parts kit for front Dana 60 and Dana 61 axles, sold for a single side. It bundles the lower king pin seal, lower bearing race, lower bearing, bearing cap and upper king pin seal used with the closed knuckle assembly.
Dana Spicer says closed knuckle and king pin parts like this are hard to find, and that the brand now sells them directly. Treat the universal fit label as secondary to the listed axle types.
Key features
- Lower king pin seal and upper king pin seal included
- Lower bearing race, lower bearing and bearing cap in one kit
- Single side per kit
- Closed knuckle and king pin parts for Dana 60 and Dana 61 axles
Knuckle and bearing setup
King pin parts sit inside the closed knuckle and carry the steering load as the wheel turns. Worn bearings or seals show up as stiff steering, a loose feel at the wheel, or grease leaking from the knuckle area. Because the bearings work under load, they are usually replaced as a set with the seals rather than one at a time.
Bearing preload is the critical step. Too much preload binds the knuckle, while too little allows play that wears the parts quickly. Clean the knuckle bore and the cups thoroughly, and inspect the bearing races for pitting. Support the knuckle and axle safely while apart, and keep any shims or spacers in order. Check steering effort and wheel play after assembly, and confirm the seal lips are seated properly.
Specifications
| Brand | Dana Spicer |
|---|---|
| Part number | 706395X |
| UPC | 23913148478 |
| Axle location | Front |
| Axle types | Dana 60, Dana 61 |
| Side | Single side |
| Kit contents | Lower king pin seal, lower bearing race, lower bearing, bearing cap, upper king pin seal |
| Fitment label | Universal fit |
Vehicle fitment
No vehicle-by-vehicle fitment list is available. The stated axle types are Dana 60 and Dana 61 front axles, so match the axle and knuckle design before installing.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
King pin work means separating the knuckle and setting bearings to correct preload, so a shop with axle rebuild tools is the usual route. Support the knuckle and axle safely while it is apart.
What’s included
Lower king pin seal, lower bearing race, lower bearing, bearing cap and upper king pin seal, for one side.
