  • Fits the 2016–2018 Toyota Tacoma per the manufacturer fitment list
  • Part number CRT56282, Curt 4-way flat wiring connector
  • Powered 3-wire to 2-wire tail light converter included
  • Fuse holder and battery connection wiring included
  • Battery connection must be fuse-protected, 10-amp max

Description

Overview

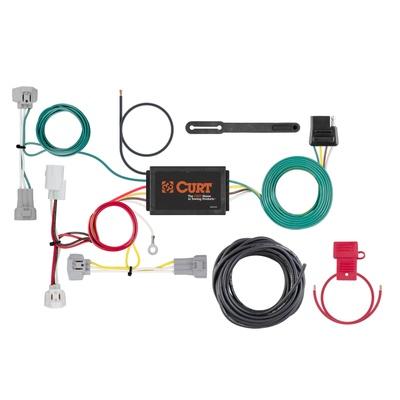

The Curt Manufacturing CRT56282 is a 4-way flat wiring connector kit for the 2016–2018 Toyota Tacoma. It gives a vehicle that lacks factory trailer wiring a standard 4-way flat trailer connection, using two or more OEM-compatible connectors that plug into the taillight assembly.

This T-connector style of custom wiring is a plug-and-play design that avoids cutting, splicing and soldering. The kit includes a powered 3-wire to 2-wire tail light converter with surface mount technology, a fuse holder, battery connection wiring and other necessary wiring components, so the trailer circuits can be fed from one assembly.

Key features

  • Plugs into the vehicle taillight assembly to provide a 4-way flat socket
  • Plug-and-play design removes the need for cutting, splicing and soldering
  • 4-way flat output connects tail lights, brake lights and turn signals
  • Powered 3-wire to 2-wire tail light converter
  • Surface mount technology circuitry for better performance and durability
  • Fuse holder, battery connection wiring and other wiring components included
  • Rubber dust cover keeps the connector clean when not in use

Battery wiring for trailer circuits

Trailer wiring kits with a battery connection need a fuse at the battery end so that a short in the trailer circuit cannot cause damage elsewhere. Keeping the fuse holder dry and mounted in a stable spot prevents corrosion and loose connections. Route the battery wire away from sharp edges and moving parts.

A powered converter takes power from the vehicle’s taillight circuits and rebuilds them for the trailer side. Because the converter handles those signals, it should be installed with its connections protected from moisture, and its function should be checked after each installation. If trailer lights flicker or stay on, inspect the connector and fuse before adjusting the wiring.

  • Confirm the fuse rating before energizing the circuit
  • Mount the fuse holder where it stays dry
  • Keep battery wire away from sharp edges
  • Recheck trailer lights after any wiring change

Specifications

Brand Curt Manufacturing
Part number CRT56282
Vehicle application Toyota Tacoma, 2016–2018 (see fitment)
Connector output 4-way flat
Converter Powered 3-wire to 2-wire tail light converter
Circuitry Surface mount technology (SMT)
Battery connection fuse Fuse-protected, 10-amp max
Dust cover Included
Warranty Limited one-year

Vehicle fitment

It fits the 2016–2018 Toyota Tacoma in Limited, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims. It is a direct fit for these model years.

It fits 2016–2018 Toyota Tacoma models. Confirm fit for your vehicle’s year, model and trim before ordering, since other Tacoma generations and Toyota models need their own check.

Installation notes

Because the battery connection must be fuse-protected at 10 amps maximum, run the battery wiring through the included fuse holder and confirm the fuse rating before the circuit is energized. The connectors plug into the taillight assembly, so the vehicle’s own wiring is not cut or spliced. Disconnect the battery before working on the battery connection, and have it checked by someone experienced with vehicle wiring if needed.

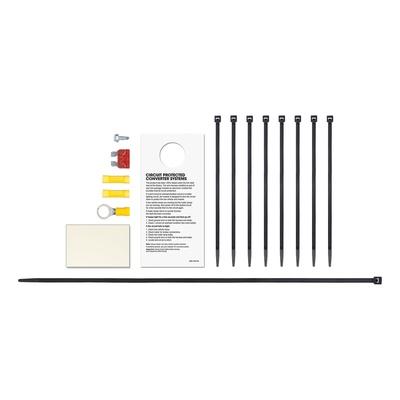

What’s included

The kit includes the wiring connectors, the powered 3-wire to 2-wire tail light converter, the fuse holder, battery connection wiring, other necessary wiring components and a dust cover. It carries a limited one-year warranty.

Fitment

VehicleYearsTrims
Toyota Tacoma2016–2018Limited, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the CRT56282 fit the 2016 to 2018 Toyota Tacoma?

Yes, the manufacturer fitment list includes the 2016–2018 Toyota Tacoma in the Limited, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims. Confirm your vehicle's year, model and trim before ordering.

Is the battery connection fused?

Yes, the battery connection must be fuse-protected at 10 amps maximum. The kit includes a fuse holder and battery connection wiring to make that connection.

What does the 3-wire to 2-wire converter do?

It is a powered tail light converter. It converts 3-wire vehicle tail light wiring to 2-wire trailer wiring, so the 4-way flat output can power tail lights, brake lights and turn signals on the trailer.

Does the converter need periodic checks?

Yes. Inspect the converter and its connections periodically, or whenever trailer lights behave oddly. Look for corrosion, loose pins or heat damage at the connector, and make sure the converter is still secure.
