Overview
The Rugged Ridge 18265.09 is a pair of HD non-greasable steel rear leaf spring shackles that provides 1 inch of lift for CJ models. Rear shackles connect the back ends of the leaf springs to the frame, so changing them alters the rear height.
The pair has no bushings and cannot be greased. It covers CJ5, CJ7 and Scrambler models.
Key features
- Heavy-duty steel body
- Adds 1 inch of lift
- Non-greaseable design
- No bushings included
- Bolt-on application
- No drilling required
- Rear position
Rear shackle basics
Rear shackles link the back ends of the leaf springs to the frame, so they affect rear ride height and how the axle moves under load. Worn rear shackles can allow the spring end to slide, causing rattles on rough roads and uneven wear on the springs. Inspect both sides together to spot differences quickly.
Bolt-on rear swaps are simpler when the vehicle is safely supported and the spring is relieved of load. Remove the old pair with care and clean the hanger holes before fitting new hardware. Check the rear brake lines and fuel lines for clearance after the change, since the spring position can shift slightly. Recheck fasteners after the first drive.
- Support the axle securely
- Clean hanger holes before fitting
- Check nearby lines for clearance
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18265.09 |
| UPC | 804314000325 |
| Material | Steel |
| Lift | 1 inch |
| Location | Rear |
| Greaseable | No |
| Bushings | None included |
| Installation | Bolt-on |
| Quantity | Sold as a pair |
Vehicle fitment
It fits the 1976 to 1983 CJ5, the 1976 to 1986 CJ7 and the 1981 to 1985 Scrambler in the trims noted for each.
Wrangler YJ and earlier CJ3 or CJ6 models are not on this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Installation is bolt-on with no drilling, though the vehicle should be supported on stands during the swap.
What’s included

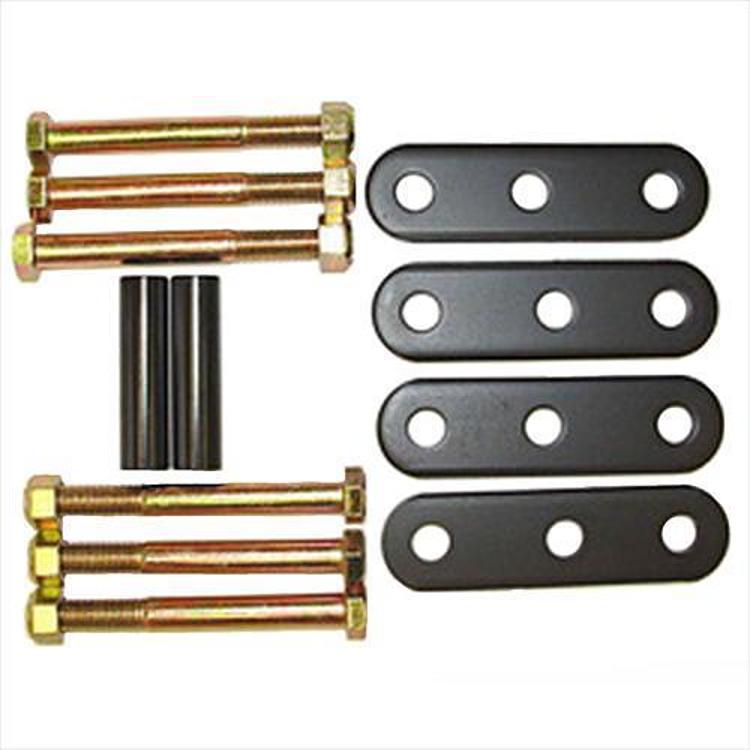

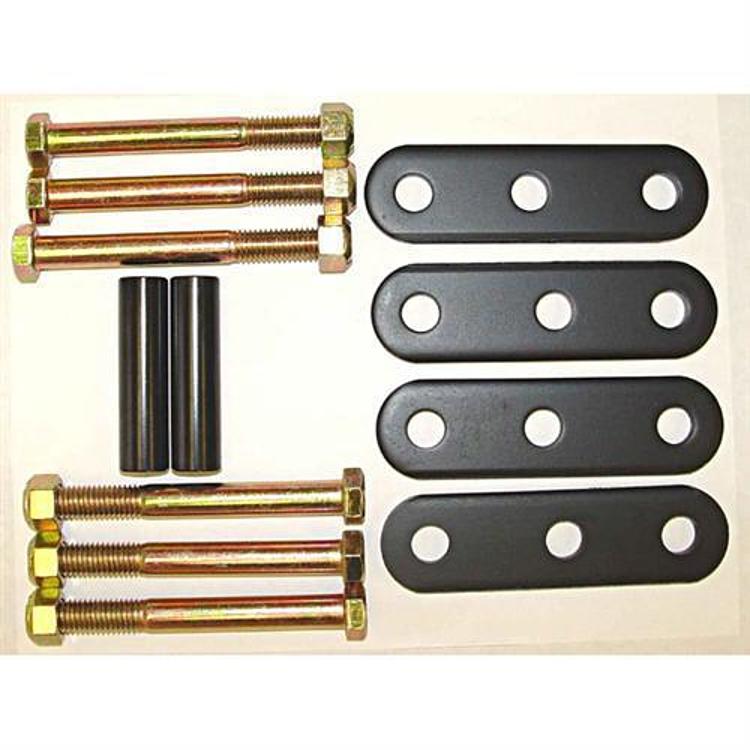

A pair of steel rear leaf spring shackles without bushings.
