Daystar 1.5″ Lift Greasable Super Shackles – KJ61006BK

Daystar

Shop Jeep CJ7 Leaf Spring Shackle Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 1.5 inch lift greaseable super shackles for CJ5, CJ7 and Scrambler
  • Fits 1976-1986 Jeep CJ models and 1981-1985 Scrambler
  • Zinc plated plate steel with a fully welded center bar
  • Greaseable polyurethane bushings and gun-drilled bolts
  • Part number KJ61006BK from Daystar

Description

Overview

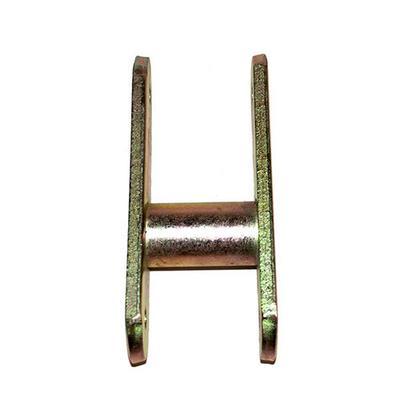

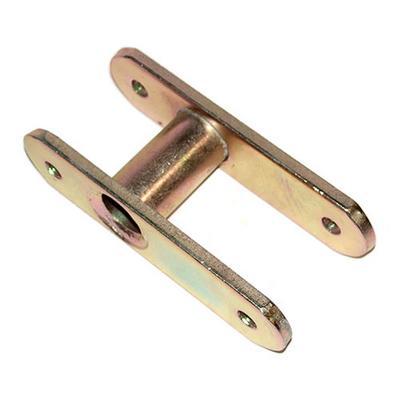

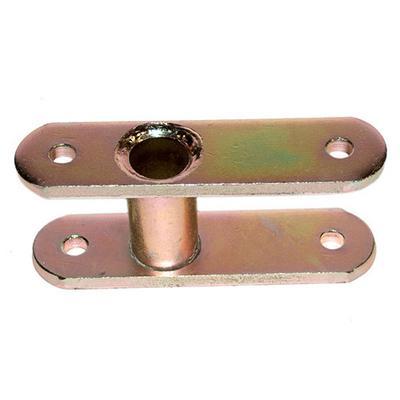

The Daystar 1.5 Inch Lift Greasable Super Shackles, part KJ61006BK, are a pair of 1.5 inch lift shackles for the 1976-1983 Jeep CJ5, the 1976-1986 Jeep CJ7 and the 1981-1985 Jeep Scrambler.

The shackle is made from heavy-duty plate steel with a fully welded center bar. The bar reduces deflection and axle shift when the vehicle corners or articulates.

The kit includes greasable polyurethane bushings and gun-drilled bolts with a grease zerk. The shackles are zinc plated.

The line includes stock replacement versions and versions that provide up to 2-1/2 inch of lift. The 1.5 inch pair sits in the middle of that range, and lift size is chosen by application. One pair covers both sides of the vehicle, and the bushings and bolts come with the pair.

Key features

  • 1.5 inch lift
  • Fully welded center bar
  • Heavy-duty plate steel construction
  • Grease-grooved polyurethane bushings
  • Gun-drilled greaseable bolts
  • Zinc plated finish

Front shackle setup

A front shackle works in a different arc than a rear shackle, so its angle and bolt location should be checked after installation. Set the shackle so the bushing sits square and the bolt is fully seated. A misaligned pivot will bind, squeak and wear the bushing faster than a correctly set one.

Because a lift shackle changes the leaf spring geometry, check steering, brake line and sway bar clearance once the shackles are in. Recheck all fasteners after the first few drives, and confirm the bushing stays centered in the sleeve. Pick a lift that suits the vehicle’s use, since larger lifts load the joints more heavily over rough terrain.

  • Confirm the bushing sits square
  • Check brake line and sway bar clearance
  • Recheck fasteners after the first drives

Specifications

Brand Daystar
Part number KJ61006BK
Position Front
Lift 1.5 inch
Bushings Grease-grooved polyurethane, black
Finish Zinc plated
Quantity Pair

Vehicle fitment

The shackles fit the 1976-1983 Jeep CJ5, the 1976-1986 Jeep CJ7 and the 1981-1985 Jeep Scrambler in the trims covered by this fitment.

The Wrangler YJ and other Jeep models fall outside this fitment. Check that your year, model and trim are covered before ordering.

Installation notes

Install the shackles with the greaseable bolts and bushings supplied. The pair is for the front position, so confirm the front or rear position on your vehicle before fitting.

What’s included

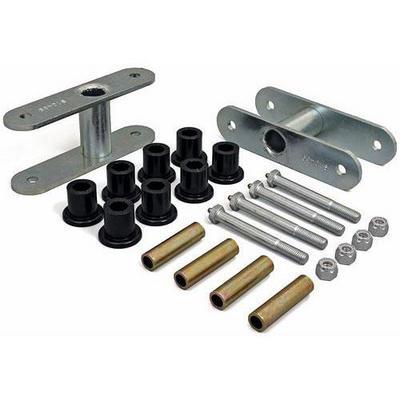

A pair of shackles with polyurethane bushings, sleeves and rifle drilled greaseable bolts.

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is this the 1.5 inch version of the Daystar super shackle?

Yes. The pair gives 1.5 inch of lift and is for the front position. Pick the size and position that match your setup before ordering.

Does KJ61006BK fit a 1981 Jeep Scrambler?

Yes. The shackles fit the 1981-1985 Jeep Scrambler, so a 1981 Scrambler is within those years. Confirm your trim before ordering.

Are the bolts greaseable?

Yes. The pair includes gun-drilled bolts with an easy-to-access grease zerk, plus greasable polyurethane bushings, so the joints can be serviced after installation.

Should the bushings be greased on a new install?

Yes. Grease the bushings and bolt before final tightening so the joint moves freely from the start. Regreasing at each service keeps the polyurethane from binding and reduces squeaks.
