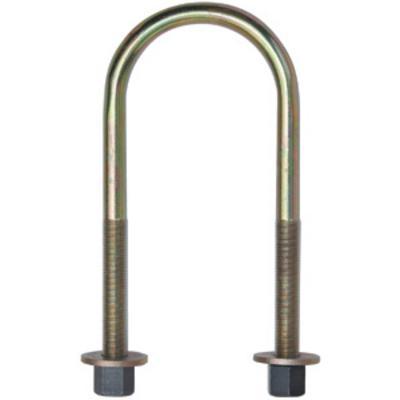

Currie 2 3/4″ Axle Tube U-Bolt – CE-9017

Currie

Shop Currie Axle U-Bolts on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Grade 8 U-bolts for 2-3/4 inch axle tubes
  • 1/2 inch by 20 fine threads
  • Nuts and case hardened washers included
  • Part number CE-9017 from Currie

Description

Overview

The Currie 2-3/4 Inch Axle Tube U-Bolt, part CE-9017, is a grade 8 U-bolt designed to fit a 2-3/4 inch axle tube. It is 7-5/8 inch deep, measured from the end of the threads to the inside of the curve of the U.

The threads are 1/2 inch by 20 fine, and the U-bolt comes with nuts and case hardened washers. The axle tube diameter is the main fitting check for this U-bolt.

Because the U-bolt clamps the axle tube to the spring, the diameter of the tube matters more than the vehicle it sits under. Measure the tube before ordering.

Key features

  • Grade 8 steel U-bolt
  • Designed for 2-3/4 inch axle tubes
  • 1/2 inch by 20 fine threads
  • Case hardened washers included

Clamping an axle tube

A U-bolt holds the axle tube against the leaf spring or spring pad, so its clamping force depends on the bolt threads, the nuts and the washers working together. Axle tube diameter matters more than the vehicle a U-bolt sits under, because a tube that is too large or too small will not seat correctly in the bend. Check the bend shape and the spring pad for alignment before tightening, since an uneven clamp can crush the tube or loosen over time.

Tighten the nuts evenly in stages, then recheck them after the first few drives. Look for stretched threads, cracks near the bend or heavy rust that has pitted the steel. Replacing nuts and washers at the same time as the U-bolts keeps the clamp consistent, and dry threads should be inspected for corrosion before installing new hardware.

Specifications

Brand Currie
Part number CE-9017
Grade Grade 8
Axle tube diameter 2-3/4 inch
Depth 7-5/8 inch, end of threads to inside of curve
Thread 1/2 inch by 20 fine
Hardware Nuts and case hardened washers

Vehicle fitment

It is sized for a 2-3/4 inch axle tube. Confirm fit for your vehicle’s year, model and trim before ordering.

Measure your axle tube before ordering to confirm it is 2-3/4 inch. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One U-bolt with nuts and case hardened washers.

Questions & Answers

What axle tube does CE-9017 fit?

The U-bolt is designed for a 2-3/4 inch axle tube. Measure your axle tube before fitting, since tube diameter is the main check for fit.

Are nuts and washers included?

Yes. The nuts and case hardened washers come with the U-bolt, so the hardware is supplied in the box alongside the bolt.

How deep is the U-bolt?

It is 7-5/8 inch deep, measured from the end of the threads to the inside of the curve of the U. The threads are 1/2 inch by 20 fine, which should be matched to your nuts.

When should U-bolts be replaced instead of reused?

Replace U-bolts that show stretched or flattened threads, cracks near the bend, or rust that has pitted the metal. Reusing a stretched bolt can lead to a loose axle clamp. New nuts and washers are a sensible addition whenever bolts are swapped.
