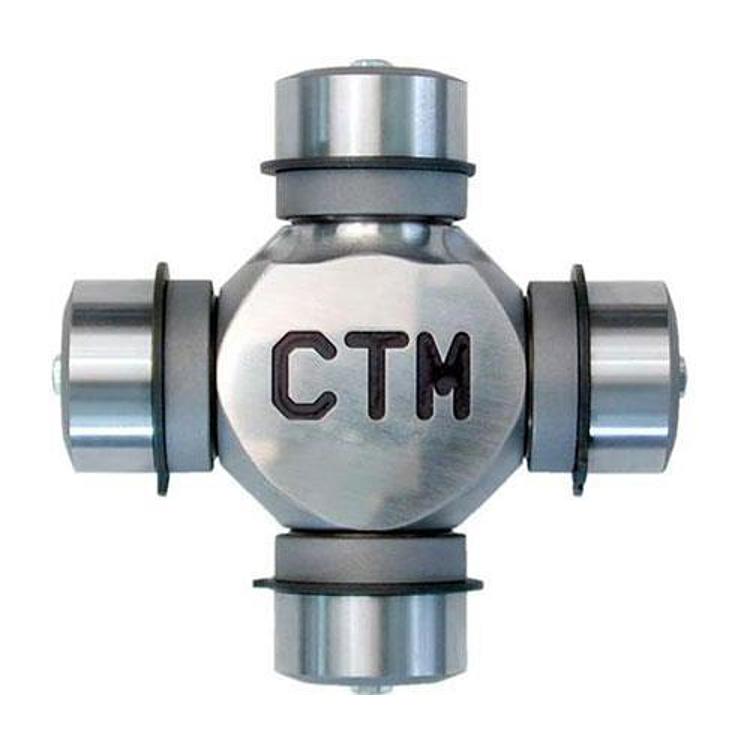

CTM Racing Dana 60 U-Joint – C-160-3750

CTM Racing

Shop CTM Racing Front Axle U-Joints on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • CTM Racing Dana 60 front axle U-joint, part number C-160-3750
  • Rebuildable and lubeable, highway rated
  • 1.375 inch cup size, 3.000 inch snap ring to snap ring size
  • Designed for full circle clips in chrome-moly axle shafts

Description

Overview

The CTM Racing C-160-3750 is a rebuildable, lubeable Dana 60 front axle U-joint with a 1.375 inch cup size and a 3.000 inch snap ring to snap ring size, rated for highway use. CTM Racing also catalogs it as CTMC-160-3750.

Seals, bushings and clips can be replaced as long as the cross and caps remain intact, so the joint can be rebuilt. The joints use a bronze sleeve that shows little or no wear. They are designed for full circle clips and belong in high quality chrome-moly axle shafts. Keep the sleeves greased using a needle adapter on a grease gun.

The C-160-3750 is built for rock crawling and trail use, and it is rated for highway use. It is a universal fit, and the Dana 60 axle it is made for determines whether it matches.

Key features

  • Rebuildable: seals, bushings and clips can be replaced
  • Bronze sleeve
  • Designed for full circle clips
  • Lubeable
  • Highway rated
  • 1.375 inch cup size
  • 3.000 inch snap ring to snap ring size

Before you rebuild

A rebuildable U-joint is worth inspecting before each trail season. Look for play at the cross, rust or pitting on the bearing caps, and seals that no longer hold grease. When the cross or caps show wear, the joint should be replaced rather than rebuilt, because the bearing surfaces are no longer reliable.

When rebuilding, replace the seals, bushings and clips as a set so the joint seats evenly. Clean the cups thoroughly and check that the clips seat fully. Grease the sleeves at regular intervals, since a dry joint wears faster under articulation and heavy loads.

  • Check cross and caps for play or pitting
  • Replace seals, bushings and clips together
  • Grease sleeves at each service interval
  • Inspect shaft yokes for wear when the joint is out

Specifications

Brand CTM Racing
Part number C-160-3750
UPC 70000416850
Product type Front axle U-joint
Also cataloged as CTMC-160-3750
Axle Dana 60
Cup size 1.375 inches
Snap ring to snap ring size 3.000 inches
Highway rated Yes
Lubeable Yes
Clip type Full circle clips
Fit type Universal fit

Vehicle fitment

This U-joint is sized for the Dana 60 axle, so the axle shaft and yoke, not the vehicle model, determine the match. Confirm the cup size and snap ring to snap ring size against your axle shafts before ordering.

No vehicles are named. Confirm the cup size and snap ring to snap ring size against your axle shafts. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The joints use full circle clips and must go into high quality chrome-moly axle shafts. Keep the bronze sleeves greased with a needle adapter on your grease gun.

What’s included

One U-joint. Check the package contents against your installation before starting.

SKU: CTMC-160-3750 Category:

Specification

Shipping weight 2.50 lbs
Package dimensions 4.60 × 4.20 × 4.00 in
brands

Questions & Answers

Is the CTM C-160-3750 rebuildable?

Yes. CTM says seals, bushings and clips can be replaced indefinitely as long as the cross or caps are intact.

What size is the C-160-3750?

The cup size is 1.375 inches and the snap ring to snap ring size is 3.000 inches. It is made for the Dana 60.

Is the C-160-3750 highway rated?

Yes. It is rated for highway use and is lubeable, so it can be used on the street and greased through its fitting.

What axle shafts does the C-160-3750 need?

It is designed for full circle clips, so it should be installed in high quality chrome-moly axle shafts built for that clip type.

How do you tell when a U-joint needs replacing?

Replace it when the cross or caps show wear, when play develops at the joint, or when grease no longer purges through the seals during service. Check the joints at each service and after hard trail runs, since heavy articulation accelerates wear.
