Overview

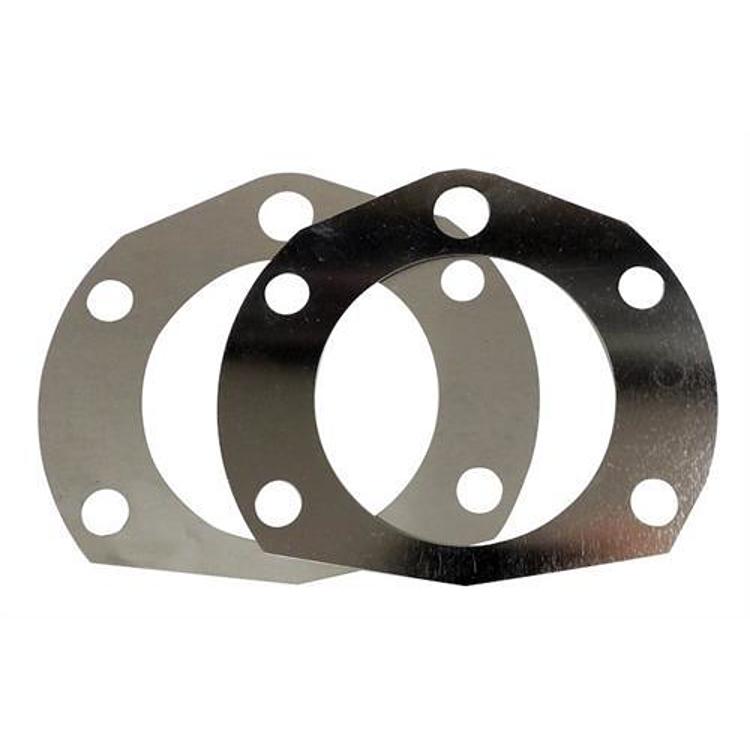

The Crown Automotive 3141319K is a wheel bearing shim set for the AMC 20 rear axle on the 1976–1986 Jeep CJ5, CJ7 and Scrambler.
Wheel bearing shims are thin spacers that help set bearing position and end play at the axle. The set holds two shims, one .003-thick and one .010-thick, measured in inches.
The set is for the AMC 20 rear axle and is a rear position part.
On the AMC 20, shims adjust the position of the axle shaft bearing or the end play, and a small thickness change makes a measurable difference. Crown Automotive offers this set with two thicknesses so the person doing the work can choose. Crown does not provide material or diameter information, so compare the shims with those you remove. The same Model 20 rear axle is covered by the single shim J3141320, sold separately.
Key features
- Wheel bearing shim set
- Contains one .003 shim and one .010 shim
- For the AMC 20 rear axle
- Rear position
- Direct fit
Setting bearing end play
Shims set how far the axle bearing sits in its bore, and the end play they leave determines whether the bearing runs smoothly. Because the shim thickness changes end play in small steps, the right stack is found by measuring rather than guessing. Keep the old shim stack together as you remove it so the starting point is recorded before any change.
Clean every shim and the bearing surfaces before reassembly, since a bit of grit can shift the measurement. Stack the thicknesses to reach the needed value, then recheck end play after the final assembly. Bearings, seals and axle hardware are not part of this set, so plan to buy them separately.
- Measure the old stack before removing it
- Keep shims clean and flat before reassembly
- Confirm the target end play before final assembly
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 3141319K |
| UPC | 849603014089 |
| Part type | Wheel bearing shim set |
| Axle | AMC 20 rear |
| Contents | 1 shim of .003 and 1 shim of .010 thickness |
| Position | Rear |
Vehicle fitment
It fits the 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade), the 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade) and the 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR).
- 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade)
- 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade)
- 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR)
Only CJ5, CJ7 and Scrambler years are covered. Wrangler and Cherokee models are not on the list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Shims are used to adjust bearing preload or end play. Crown does not publish a target value, so use the figure in the factory service information for your Jeep.
What’s included
One .003 shim and one .010 shim.
Not included: bearings, seals and other axle hardware.
