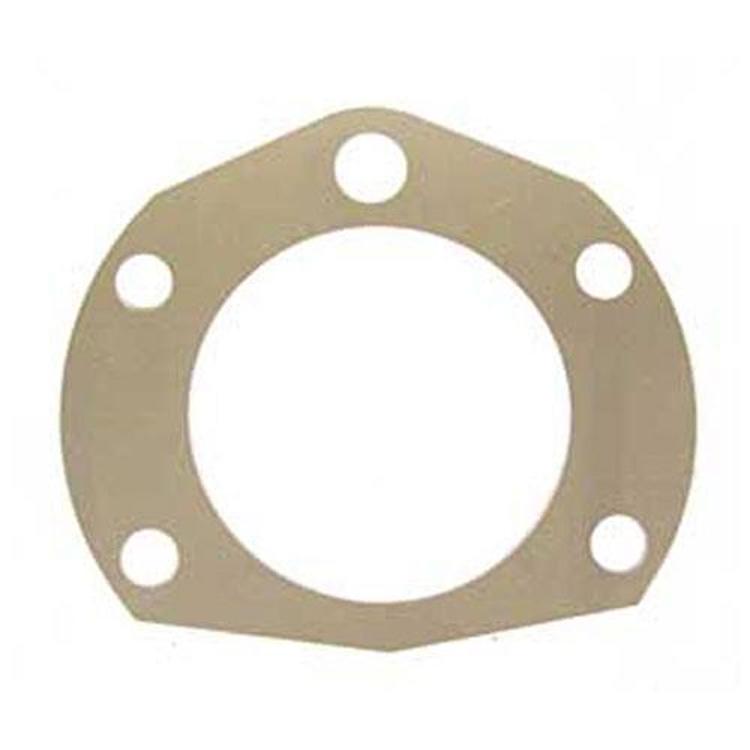

Crown Automotive Wheel Bearing Shim – J3141320

Crown Automotive

$9.68In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 6:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Wheel bearing shim, .010 thick (inches)
  • For the AMC Model 20 rear axle
  • Fits 1976–1986 Jeep CJ5, CJ7 and Scrambler

Description

Overview

The Crown Automotive J3141320 is a .010-thick wheel bearing shim for the AMC Model 20 rear axle on the 1976–1986 Jeep CJ5, CJ7 and Scrambler.

A wheel bearing shim is a thin spacer used to set bearing position at the axle. This single shim is .010 thick, measured in inches.

It is a direct fit for the rear position on the AMC Model 20 axle.

Shims of different thickness let the installer fine-tune bearing position. This is a single .010 shim, the thicker of the two in shim set 3141319K. Because bearing adjustment is precise, many owners keep several thicknesses on hand.

Key features

  • Wheel bearing shim
  • Thickness of .010
  • For the AMC Model 20 axle
  • Rear position
  • Direct fit

Setting bearing preload

Wheel bearing shims set how far the bearing sits in its housing, which affects play and bearing life. A shim that is too thin can let the bearing move under load, while a stack that is too thick can cause binding or heat. Because the change is small, the right thickness is usually found by measuring rather than guessing, and each adjustment should be checked after the bearing is seated.

When the rear axle is opened, check the bearings, races and seals at the same time. Keep the shims clean, flat and free of burrs, since a dirty or bent shim can change the measured position. Mixing shims from the same set makes the adjustment easier to repeat. After setting the bearings, turn the wheel by hand and listen for a rough or grinding feel.

  • Measure the stack before final assembly
  • Keep shims clean and flat
  • Inspect bearings and races for wear
  • Recheck play after the first drive

Specifications

Brand Crown Automotive
Part number J3141320
UPC 848399057805
Part type Wheel bearing shim
Thickness .010 (inches)
Axle AMC Model 20
Position Rear

Vehicle fitment

The J3141320 fits:

  • 1976–1983 Jeep CJ5 (Base, Golden Eagle, Laredo, Limited, Renegade)
  • 1976–1986 Jeep CJ7 (Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade)
  • 1981–1985 Jeep Scrambler (Base, Laredo, Renegade, SL, SR)

Only CJ5, CJ7 and Scrambler years are included. Wrangler and Cherokee models are not on the list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

No shimming procedure or target figure is published for this part, so follow the factory service information when setting the bearings.

What’s included

One shim, part number J3141320.

Not included: other shim thicknesses, bearings and seals.

SKU: CROJ3141320 Category:

Specification

Shipping weight 0.05 lbs
Package dimensions 4.00 × 4.00 × 1.00 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51976–1983Base, Golden Eagle, Laredo, Limited, Renegade
Jeep CJ71976–1986Base, Golden Eagle, Golden Hawk, Laredo, Limited, Renegade
Jeep Scrambler1981–1985Base, Laredo, Renegade, SL, SR

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

How thick is the Crown J3141320 shim?

It is .010 thick, measured in inches. It is a single shim for adjusting wheel bearing position at the rear axle.

Which axle uses the J3141320?

It fits the AMC Model 20 axle in the rear position, and the shim is used with CJ5, CJ7 and Scrambler models.

Which Jeeps use the J3141320?

The list covers the 1976–1983 CJ5, 1976–1986 CJ7 and 1981–1985 Scrambler, with the trims named in the Vehicle fitment section.

Can shims be stacked to reach a different thickness?

Yes, shims can be combined to reach a needed total. Measure the finished stack before final assembly, and keep the shims clean and flat so the bearing sits square.
