Overview

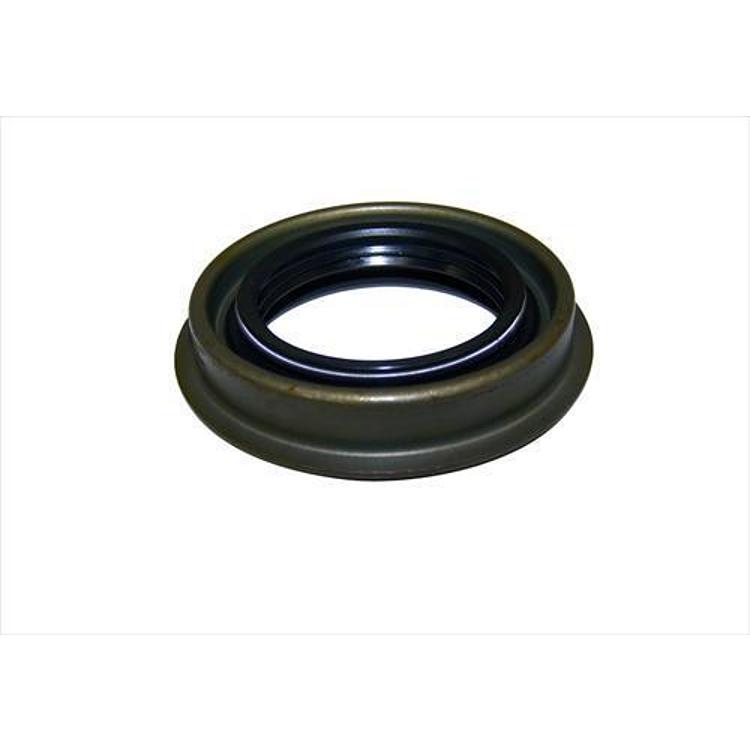

The Crown Automotive 5012813AA is an outer pinion seal for the rear Dana 35 axle. It is a direct fit for the rear position.
The seal is for the Jeep Grand Cherokee WJ built from 1999 through 2004, in the Laredo, Limited, Overland, Special Edition and Sport trims.
Key features
- Outer pinion seal
- Made for the Dana 35 rear axle
- Crown Automotive part number 5012813AA
Replacing a pinion seal
The pinion seal sits where the pinion shaft enters the differential housing and keeps gear oil from leaking out. As it hardens with heat and age, oil appears on the housing or the driveshaft yoke, often with a falling oil level. A leak at this point should be fixed before the gear oil runs low, since low lubricant accelerates gear wear.
Replacing the seal usually requires supporting the driveshaft, removing the pinion nut and using a seal tool so the new seal is pressed in square. The yoke surface should be checked for grooves, because a grooved yoke can cause a new seal to leak. When the housing is open, check the pinion bearing preload and the gear oil, then refill to the level the axle service procedure calls for.
- Drain and inspect the gear oil
- Check the yoke for wear or grooves
- Replace the pinion nut if the design requires it
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5012813AA |
| UPC | 848399032291 |
| Axle | Dana 35 |
| Position | Rear |
| Seal position | Outer pinion |
Vehicle fitment
It fits the 1999–2004 Jeep Grand Cherokee (WJ) in Laredo, Limited, Overland, Special Edition and Sport trims.
The list does not include the Cherokee, the Grand Cherokee (ZJ) or any Wrangler model.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One outer pinion seal.
