Overview

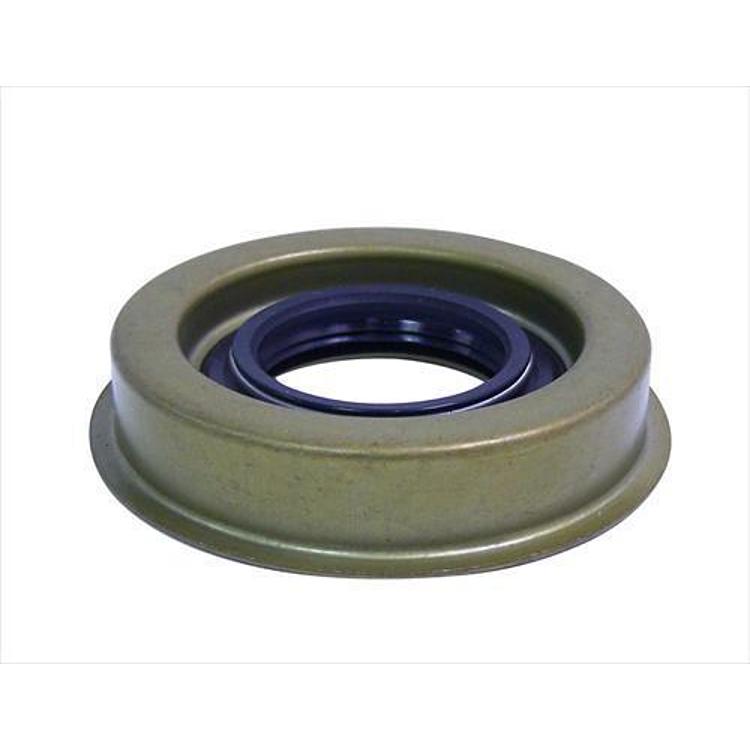

The Crown Automotive 5066446AA is an inner pinion seal for the front differential on Dana 30 and Dana 44 axles. It fits the 2001 to 2004 Jeep Grand Cherokee WJ, the 2004 to 2006 Jeep Wrangler LJ and the 2003 to 2006 Jeep Wrangler TJ.
The pinion seal keeps gear oil in the differential where the pinion shaft passes through the housing. It is an inner seal in the front position.
Installing a pinion seal
A pinion seal sits where the pinion shaft leaves the front differential carrier. Its lip rides on the yoke or flange, so grooves, nicks or rust on that surface will wear a new seal quickly. Clean the bore and inspect the yoke before fitting the new seal, and use a seal driver rather than a hammer so the seal enters square.
Pinion bearing preload is set separately from the seal, so a seal is often renewed while the carrier is already open for other work. Recheck the fluid level after the first few drives, since a fresh seal can weep briefly until it beds in.
- Inspect the yoke surface for grooves before installing
- Confirm the seal is going into the front inner position
- Look for gear oil around the pinion after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 5066446AA |
| UPC | 848399034134 |
| Application | Dana 30 and Dana 44 front differential |
| Position | Front, inner pinion |
Vehicle fitment
It fits the 2001 to 2004 Jeep Grand Cherokee WJ in Laredo, Limited, Overland, Special Edition and Sport trims, the 2004 to 2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon, and the 2003 to 2006 Jeep Wrangler TJ in several trims including Rubicon and Sahara.
The list does not include the Wrangler JK or the Cherokee XJ, or the Grand Cherokee ZJ. Confirm your vehicle’s year, model and trim before ordering.
What’s included
One inner pinion seal, with no companion seal or gasket.
