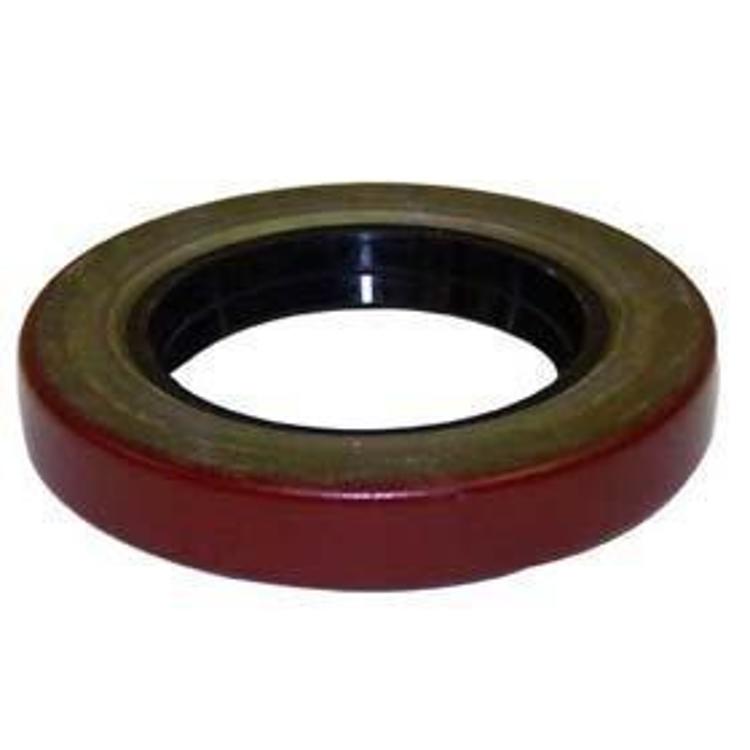

Crown Automotive Dana 35 Inner Axle Seal – 83503010

Crown Automotive

$8.45In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 3:50 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits 1984–1989 Jeep Cherokee XJ, 1986–1989 Comanche and 1987–1989 Wrangler YJ
  • Dana 35 inner axle seal, rear inner position
  • Crown Automotive part number 83503010

Description

Overview

The 83503010 is a Dana 35 inner axle seal for the rear inner position. It fits the 1984–1989 Jeep Cherokee XJ, the 1986–1989 Jeep Comanche and the 1987–1989 Jeep Wrangler YJ.

An inner axle seal keeps gear oil inside the axle housing where the axle shaft leaves the differential. When it fails, oil can seep along the shaft, so the seal is a common replacement during a rear axle service.

The Dana 35 is the axle this seal is made for, so check it when a rear Dana 35 in a late 1980s Cherokee, Comanche or Wrangler YJ leaks at the differential end of the shaft. It is a direct-fit replacement.

The seal is small and flat in profile, which makes it easy to fit once the axle shaft is out of the housing. Matching the Dana 35 and the rear inner position are the two checks that decide whether this part number is the right one for the vehicle.

Cherokee XJ models run from Base through Limited, the Comanche from Base to XLS, and the Wrangler YJ trims shown below, so the seal applies across those trims.

Key features

  • Inner axle seal for the Dana 35
  • Rear inner position
  • Fits 1984 to 1989 Cherokee XJ
  • Fits 1986 to 1989 Comanche
  • Fits 1987 to 1989 Wrangler YJ
  • Direct-fit replacement part

Checking axle and seal fit

Inner axle seals are easy to overlook until a rear axle leaks, so the seal position and axle type should be confirmed before any work begins. Once the axle shaft is out, inspect the bearing, the shaft surface where the lip rides, and the housing bore for wear or burrs. A rough shaft can cut a new seal quickly.

Seal lips need clean, lightly oiled contact with the shaft. Install the seal square in the housing and avoid hammering it into place. Refill the axle to the correct level after reassembly and check for seepage after the first few drives. A small seep often means the seal was not seated fully.

  • Check the axle shaft surface for grooves
  • Replace the axle bearing if it is worn

Specifications

Brand Crown Automotive
Part number 83503010
UPC 848399025057
Part type Inner axle seal
Axle Dana 35
Position Rear inner
Fitment type Direct fit
Category Axle parts, inner axle seals

Vehicle fitment

The 83503010 seal fits these vehicles, with the trims shown:

  • 1984–1989 Jeep Cherokee (XJ) (Base, Chief, Laredo, Limited, Pioneer, Sport)
  • 1986–1989 Jeep Comanche (Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS)
  • 1987–1989 Jeep Wrangler (YJ) (Base, Islander, Laredo, S, Sahara, Sport)

The seal covers 1989 and earlier only. The 1990 and newer Cherokee XJ, Comanche and Wrangler YJ are not covered by this part. Check your year, model and trim against the coverage before ordering.

Installation notes

The seal is for the rear Dana 35 axle, so identify your rear axle before ordering. No other installation steps are given.

SKU: CRO83503010 Category:

Specification

Shipping weight 0.10 lbs
Package dimensions 2.30 × 2.30 × 0.30 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ)1984–1989Base, Chief, Laredo, Limited, Pioneer, Sport
Jeep Comanche1986–1989Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS
Jeep Wrangler (YJ)1987–1989Base, Islander, Laredo, S, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What axle is the Crown 83503010 seal for?

The 83503010 is a Dana 35 inner axle seal. Its position is rear inner, so it belongs on the rear axle.

Which Jeeps does the Crown 83503010 fit?

It fits the 1984 to 1989 Cherokee XJ, the 1986 to 1989 Comanche and the 1987 to 1989 Wrangler YJ, in the trims shown in the fitment section.

Does the 83503010 fit a 1995 Wrangler YJ?

No. Crown's list for the 83503010 stops at 1989 for the Wrangler YJ, so a 1990 to 1995 YJ is not covered by this part number.

How do you tell whether an inner axle seal is leaking?

Look for gear oil along the inside of the wheel or on the axle shaft near the differential, and check the axle housing for a damp film. A small amount of seepage can be cleaned and watched, while steady drips call for replacement. Clean the area first so new leaks are easy to spot.
