Overview

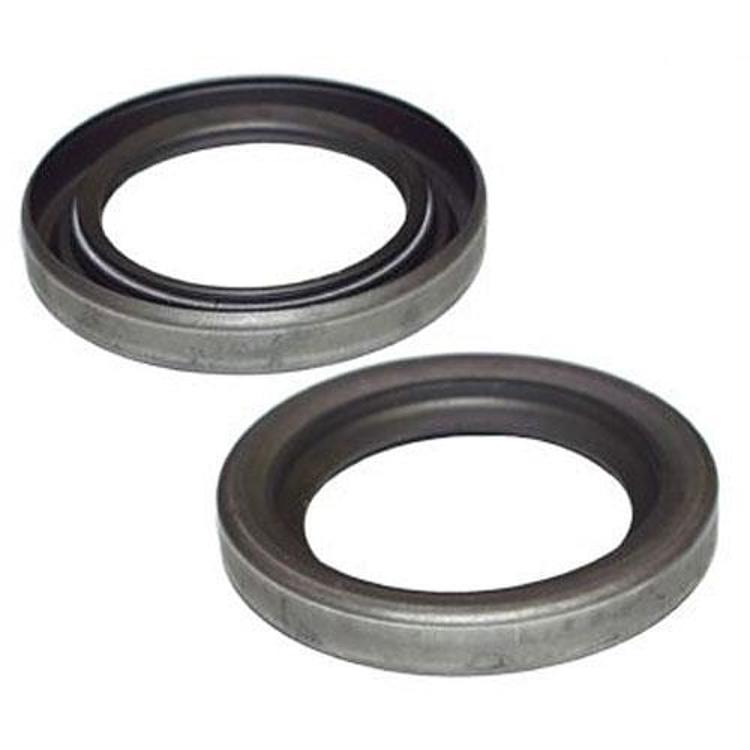

The 83500199 is a Dana 30 intermediate axle seal for the disconnect style Dana 30 front axle, with a 2.29 inch outer diameter. It fits the 1984–1992 Jeep Cherokee XJ, the 1986–1992 Jeep Comanche and the 1987–1995 Jeep Wrangler YJ.
The intermediate axle seal sits where the intermediate shaft passes through the axle housing on a disconnect style Dana 30, and it keeps the axle lubricant in. When the seal leaks, gear oil can reach the brakes or the tube, so a measured match on outer diameter matters.
The seal is for the front position as a direct-fit replacement. Measure the old seal’s 2.29 inch outer diameter as a quick check before pressing in the new one.
A Dana 30 disconnect axle has a splined intermediate shaft that engages the right side axle, and this seal sits at that junction. Dana 30 disconnect seals come in more than one outer diameter, so measuring the old seal first is worthwhile.
The seal is for the front position only, so it should not be used on a rear axle.
Key features
- Intermediate axle seal for the Dana 30 front axle
- Dana 30 disconnect style
- 2.29 inch outer diameter
- Front position
- Fits XJ, Comanche and Wrangler YJ
- Direct-fit replacement part
Front axle seal replacement
An intermediate seal sits where the shaft enters the axle housing, so leaks there often run down the tube and onto the brake area. Oil on the inside of the front tire or a dark stain along the axle tube are typical signs. A leaking seal left alone can lower the lubricant level and wear the gears and bearings behind it.
Before pressing in a new seal, clean the housing bore and check the shaft surface for grooves that could cut the lip. Use a seal driver that seats the seal square in the bore. After installation, check the lubricant level and look for leaks after a short drive. If the seal was leaking for some time, inspect the nearby bearings as well.
- Oil on the inside of the front tire
- Dark stain along the axle tube
- Check the shaft surface before fitting
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 83500199 |
| UPC | 848399023176 |
| Part type | Intermediate axle seal |
| Axle | Dana 30, disconnect style |
| Outer diameter | 2.29 inch |
| Position | Front |
| Fitment type | Direct fit |
| Category | Axle parts, inner axle seals |
Vehicle fitment
The 83500199 fits these vehicles, with trims shown:
- 1984–1992 Jeep Cherokee (XJ) (Base, Briarwood, Chief, Laredo, Limited, Pioneer, Sport)
- 1986–1992 Jeep Comanche (Base, Chief, Custom, Eliminator, Laredo, Pioneer, X, XLS)
- 1987–1995 Jeep Wrangler (YJ) (Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport)
The Cherokee XJ and Comanche entries end in 1992, so the 1993 to 2001 Cherokee XJ is not covered by this seal. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure the outer diameter if you are unsure which seal your axle uses. This seal is the 2.29 inch size for a Dana 30 disconnect style axle.
