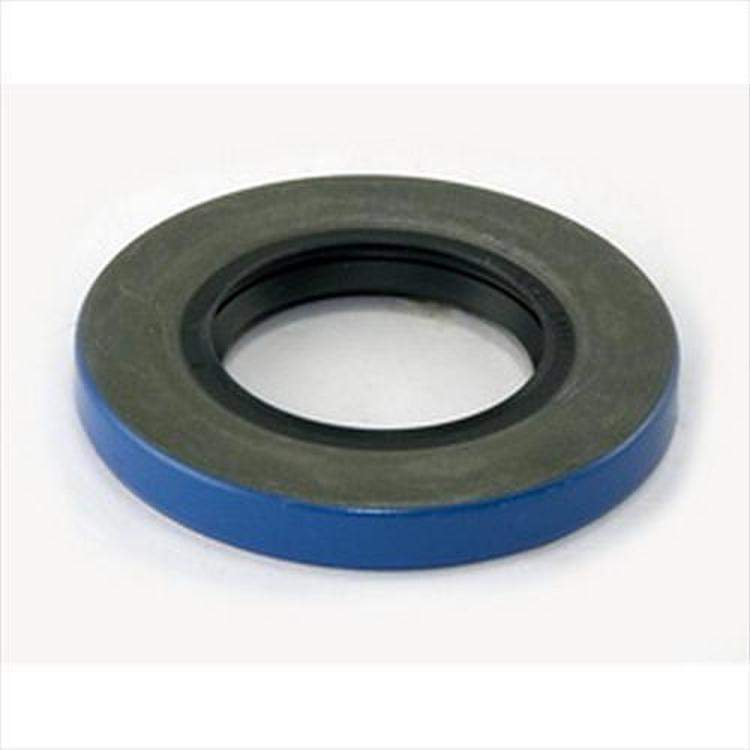

Omix-ADA Axle Shaft Inner Seal – 16535.03

Omix-Ada

$7.04In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Omix-ADA axle shaft inner seal, product number 16535.03
  • Made for the AMC Model 20 axle
  • Direct OE replacement design
  • UPC 804314023096

Description

Overview

The Omix-ADA 16535.03 is an axle shaft inner seal for the AMC Model 20 axle. It is a direct OE replacement built to original specifications and carries a limited five year warranty.

Key features

  • Axle shaft inner seal
  • Made for the AMC Model 20 axle
  • Direct OE replacement design
  • Limited five year warranty from Omix-ADA

Before you install

The inner seal sits where the axle shaft enters the housing, keeping gear oil inside and dirt out. When it fails, oil usually shows on the inside of the brake backing plate or along the axle tube near the hub. Left alone, a leak can run the axle low on lubricant, so catching it early limits damage to other parts.

Before fitting a new seal, clean the bore and check the surface where the lip rides for grooves or rust. Lightly lubricate the seal lip and press it in square, using a driver that sits against the outer edge. Replace any axle bearings or gaskets that show wear during the same job, since they are often out at the same time. After the seal is in, check the oil level once the vehicle is level.

Specifications

Brand Omix-ADA
Product number 16535.03
UPC 804314023096
Component Axle shaft inner seal
Axle AMC Model 20
Warranty Limited five year warranty from Omix-ADA

Vehicle fitment

AMC Model 20 is an axle type, so no vehicle years or models are listed. Confirm the axle on your vehicle matches the Model 20 before ordering.

What’s included

The item is an axle shaft inner seal. Compare the package contents with your installation steps before starting.

SKU: OAI16535.03 Category:

Specification

Shipping weight 0.05 lbs
Package dimensions 2.00 × 2.00 × 2.00 in
brands

Questions & Answers

What is Omix-ADA part 16535.03?

It is an axle shaft inner seal for the AMC Model 20 axle from Omix-ADA. It is a direct OE replacement design. UPC 804314023096 identifies the item.

Which vehicles does the 16535.03 seal fit?

The 16535.03 is built for the AMC Model 20 axle, so the axle is the deciding factor. Confirm the axle on your vehicle is a Model 20 before ordering, and check the seal's position against the part you are replacing before installing it.

What warranty comes with the Omix-ADA 16535.03?

Omix-ADA gives this seal a limited five year warranty. Save your proof of purchase, since a warranty claim will need it along with the seal's part number and UPC.

How can you tell the inner seal is leaking?

Look for gear oil on the inside of the brake backing plate, on the brake shoes or along the axle tube near the hub. A small film is an early sign, and a steady drip means the seal should be replaced soon.
