Overview

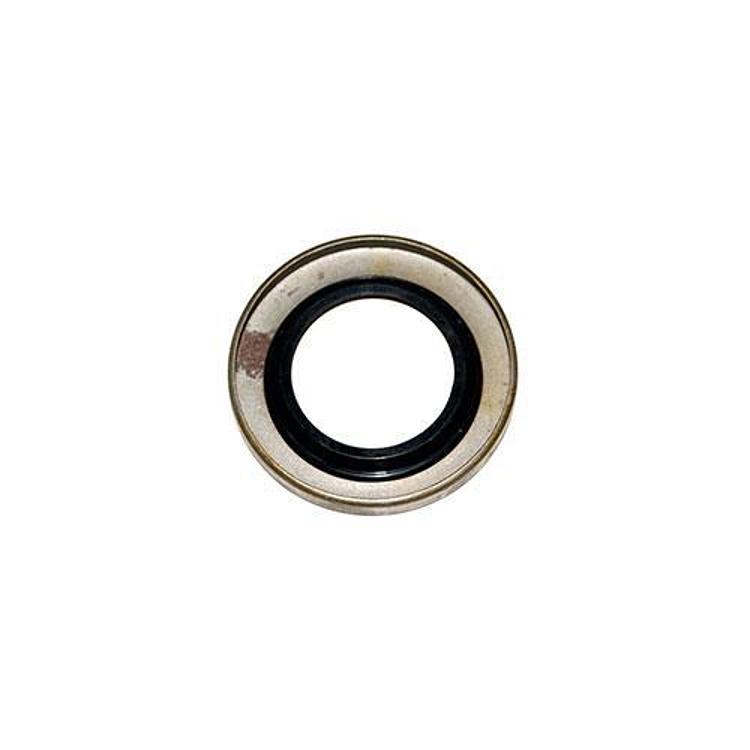

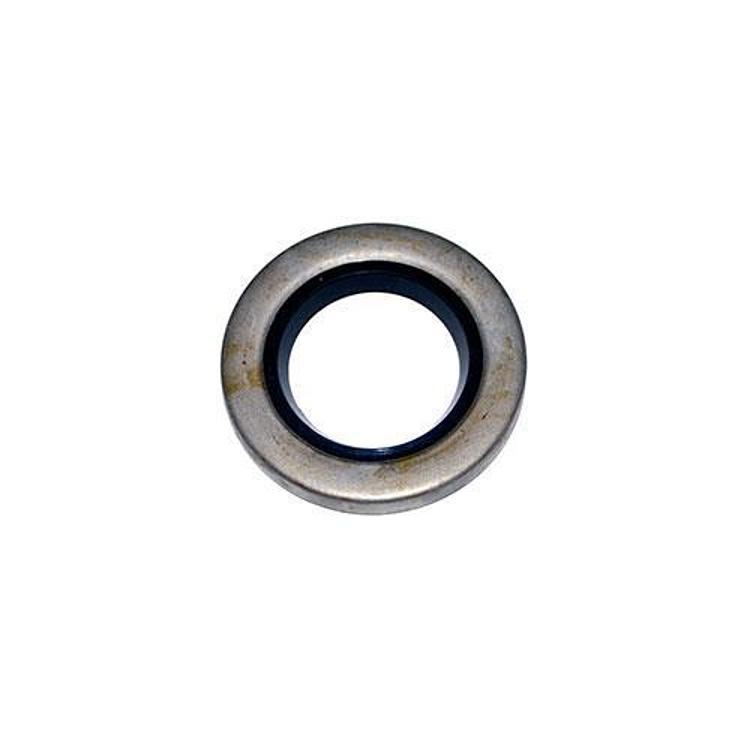

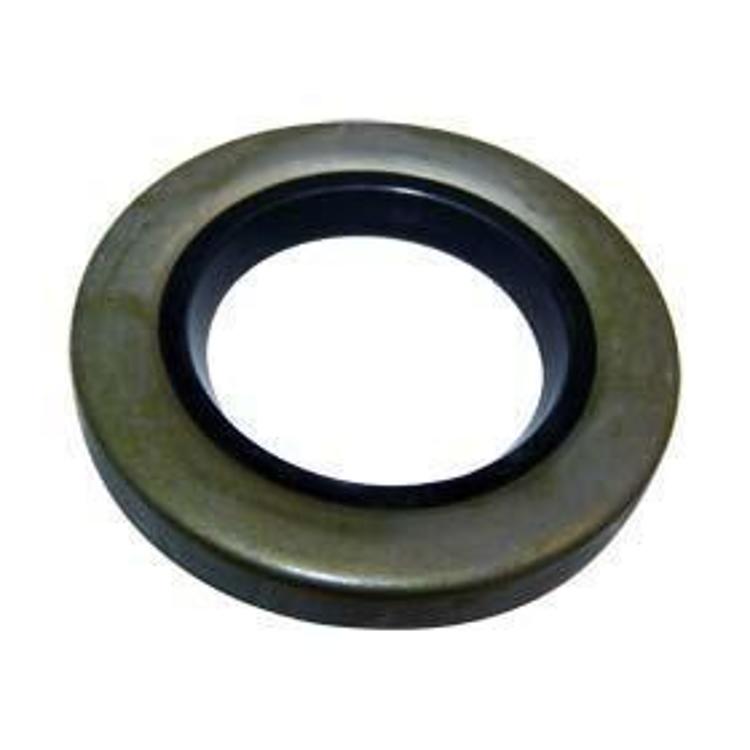

The Crown Automotive JA000779 is a D25/27 inner axle seal for the front inner position of Dana 25 and Dana 27 axles. It fits early Jeep CJ, Commando, Gladiator, Wagoneer, J-series and Willys vehicles from 1941 to 1971.
The seal keeps axle lubricant in the housing where the front axle shaft meets the differential. It covers both Dana 25 and Dana 27 front axles, so one part number serves the whole family of early four-wheel-drive Jeeps.
Each model covered has its own year range. Restorers of a CJ3, CJ5, CJ6, Willys or early truck can use the axle type and the front inner position to confirm the match.
Key features
- Inner axle seal for Dana 25 and Dana 27 axles
- Front axle location
- Front inner position
- Fits CJ3, CJ5, CJ6 and Commando
- Also fits Gladiator, Wagoneer, FC and Willys models
- Direct-fit replacement part
Replacing the inner seal
An inner axle seal stops lubricant from leaving the axle housing around the shaft. Worn seals usually show up as gear oil on the inside of the wheel or on the brake backing plate, and the oil level drops slowly over time.
Replace the seal when the shaft shows a groove or the lip is hard, since a damaged seal will keep leaking even on a new part. Clean the bore and check the shaft surface before pressing in the new seal, and use the right lubricant for the axle.
Seals and bearings tend to get serviced together on these axles. A worn bearing can push the shaft and damage a new seal, so inspect the bearings and the inner shaft at the same time.
- Oil on the backing plate
- Scored or grooved shaft surface
- Low lubricant level between services
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | JA000779 |
| UPC | 848399073041 |
| Part type | Inner axle seal |
| Axle type | Dana 27 and Dana 25 |
| Axle location | Front |
| Position | Front inner |
| Fitment type | Direct fit |
| Category | Axle parts, inner axle seals |
Vehicle fitment
It fits the following vehicles, with the trims noted:
- 1959–1960, 1966 Jeep CJ3 (Base)
- 1959–1971 Jeep CJ5 (Base)
- 1959–1971 Jeep CJ6 (Base)
- 1966–1971 Jeep Commando (Base)
- 1957–1965 Jeep FC150 (Base)
- 1957–1965 Jeep FC170 (Base)
- 1963–1965 Jeep FC170HD (Base)
- 1963–1965 Jeep Gladiator (Base)
- 1965–1970 Jeep J-2500 (Base)
- 1968–1970 Jeep J-2600 (Base)
- 1968–1970 Jeep J-2700 (Base)
- 1968 Jeep J-2800 (Base)
- 1968–1970 Jeep J-3500 (Base)
- 1968–1970 Jeep J-3600 (Base)
- 1968–1970 Jeep J-3700 (Base)
- 1968–1970 Jeep J-3800 (Base)
- 1963–1964 Jeep Wagoneer (SJ) (Base)
- 1947–1955 Jeep Willys 1-Ton
- 1946–1949 Jeep Willys CJ-2
- 1949–1958 Jeep Willys CJ-3
- 1955–1958 Jeep Willys CJ-5
- 1956–1958 Jeep Willys CJ-6
- 1951–1955 Jeep Willys Sedan Delivery
- 1941–1942 Willys MB (Base)
The list stops at 1971 and does not include the CJ7. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This seal is for the front of Dana 25 and Dana 27 axles, so confirm your axle type before ordering. No other installation steps are given.
