Overview

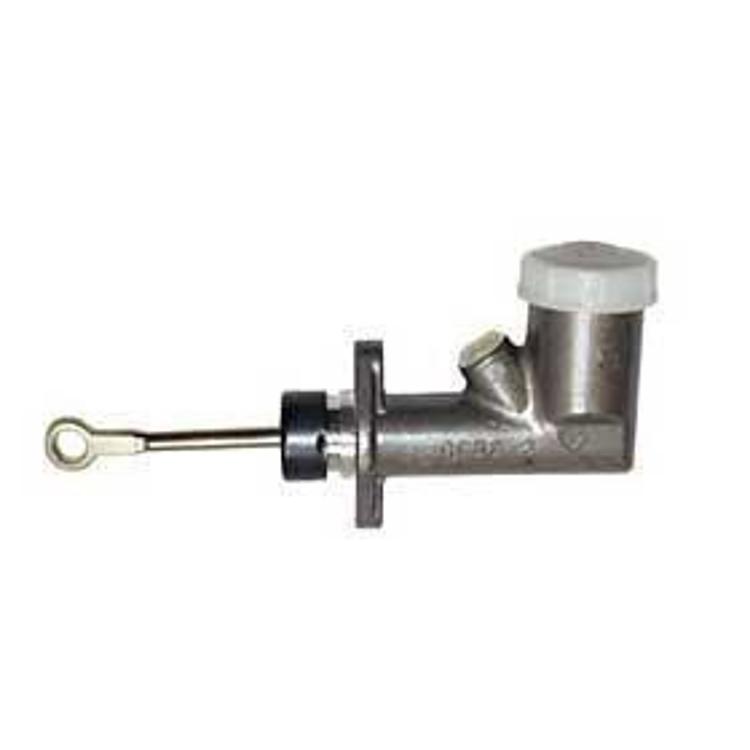

The Crown Automotive J5359822 is a clutch master cylinder for 1980–1983 Jeep CJ5, 1980–1986 CJ7 and 1981–1985 Scrambler models with 6 or 8 cylinder engines. It sits in the hydraulic clutch circuit and sends pedal pressure to the slave cylinder.
This master cylinder is made for 6 or 8 cylinder engines. The clutch hydraulics on these Jeeps differ from 4 cylinder versions, so check your engine before ordering.
Key features
- Clutch master cylinder
- Direct-fit design
- For models with 6 or 8 cylinder engines
- Fits CJ5, CJ7 and Scrambler models
Clutch hydraulics basics
The clutch master cylinder converts pedal pressure into hydraulic pressure that moves the slave cylinder and releases the clutch. Its seals and bore are the main wear points, and a leak at the master cylinder often shows up as a soft or sinking pedal or fluid around the firewall.
Replacing the master cylinder means the hydraulic circuit will need bleeding before the clutch works properly. Check the reservoir, the hose connections and the slave cylinder for leaks while the system is open. Hydraulic fluid is hard on paint, so wipe up spills before they dry.
The master and slave cylinders work as a pair, so if one is weak, the other may be worn too. Check pedal travel and the release point after the work, and recheck the fluid level after the first few uses of the clutch.
- Check for a soft or sinking pedal
- Look for fluid at the firewall and hose ends
- Bleed the system after installing
- Inspect the slave cylinder at the same time
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J5359822 |
| UPC | 848399064360 |
| Part type | Clutch master cylinder |
| Engine | 6 or 8 cylinder |
| Fit style | Direct fit |
Vehicle fitment
It is for the 1980–1983 Jeep CJ5, the 1980–1986 Jeep CJ7 and the 1981–1985 Jeep Scrambler.
Earlier CJ5 and CJ7 years are not covered, and 4 cylinder versions of these Jeeps need a different master cylinder. Confirm the year, model and trim against your vehicle before ordering.
