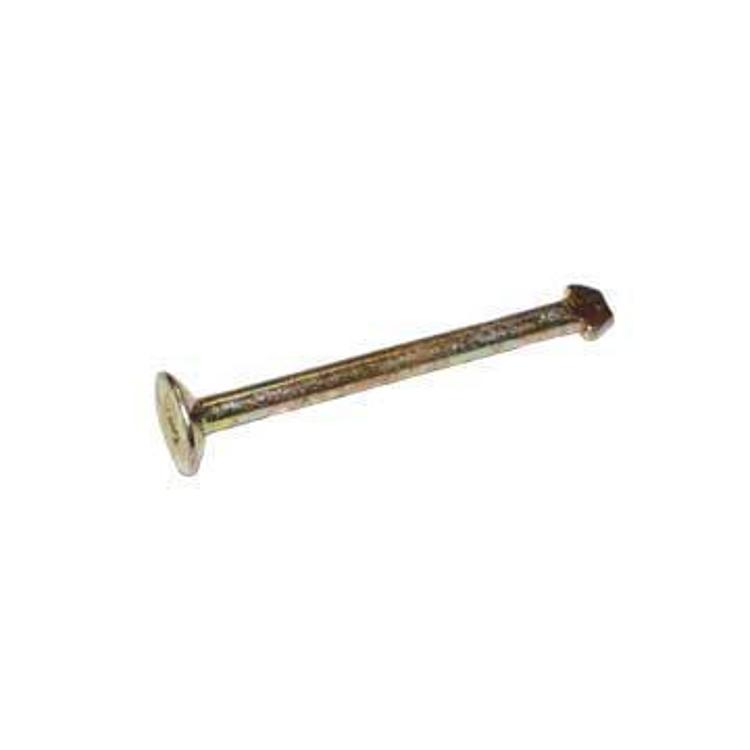

Crown Automotive Brake Shoe Pin – J0938109

Crown Automotive

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Brake shoe pin for 10 inch drum brakes on the 1965–1971 Jeep CJ5 and CJ6
  • Driver or passenger side, front or rear
  • Direct-fit Crown Automotive replacement

Description

Overview

The Crown Automotive J0938109 is a brake shoe pin for 10 inch drum brakes on the 1965-1971 Jeep CJ5 and CJ6. It works on the driver or passenger side, at the front or rear.

The pin is the anchor point that holds the brake shoe in place against the backing plate, which is why a worn pin is worth replacing alongside new shoes.

Key features

  • Fits 10 inch drum brakes
  • Usable on driver or passenger side
  • Usable front or rear
  • Direct-fit replacement for the CJ5 and CJ6

Anchor pins and shoe wear

The anchor pin is the fixed point that locates the brake shoe against the backing plate. Under braking, the shoe pushes against the pin, so the pin and the shoe ear wear together and small grooves can form at the contact point. A worn pin lets the shoe sit off center, which affects how evenly the lining meets the drum.

During a brake job, inspect the pin, its hole in the plate and the shoe ears for wear before reusing any of them. Clean off old grease and apply a light coat of high-temperature brake grease to moving contact points.

  • Inspect the pin and its hole in the backing plate
  • Check the shoe ears for grooves or flat spots
  • Clean and lightly grease the contact points

Specifications

Brand Crown Automotive
Part number J0938109
UPC 848399055498
Product type Brake shoe anchor pin
Brake size 10 inch
Position Front or rear, driver or passenger side
Fit type Direct fit

Vehicle fitment

It fits the 1965-1971 Jeep CJ5 and the 1965-1971 Jeep CJ6.

Earlier CJ5 and CJ6 years, and CJ5A and CJ6A models, are not on this part’s list. The pin is for 10 inch brakes only, so measure your drums. Confirm your vehicle’s year, model and trim before ordering.

SKU: CROJ0938109 Category:

Specification

Shipping weight 1.75 lbs
Package dimensions 1.80 × 0.50 × 0.50 in
brands

Fitment

VehicleYearsTrims
Jeep CJ51965–1971Base
Jeep CJ61965–1971Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What brakes does the Crown J0938109 pin fit?

It fits 10 inch drum brakes on the 1965-1971 CJ5 and CJ6. It works on either side of the vehicle, at the front or rear.

Is the J0938109 a front or rear part?

Both. It works on driver or passenger side brakes at the front or rear, provided the drums are 10 inch.

Will the J0938109 fit a 1972 CJ5?

No. The listed years end at 1971, so a 1972 CJ5 is outside the stated fitment. Check the brake size and the parts diagram for later models.

What is a brake shoe pin used for?

A brake shoe pin is an anchor that locates the shoe on the backing plate. This Crown pin is a replacement for the 10 inch drum brakes of the listed Jeeps.

Should the brake shoe pin be replaced with new shoes?

Often yes. The pin takes wear where the shoe rests, so a worn one can let the shoe rattle or sit off center. Inspect the pin, its hole and the shoe ears whenever the shoes are replaced.
