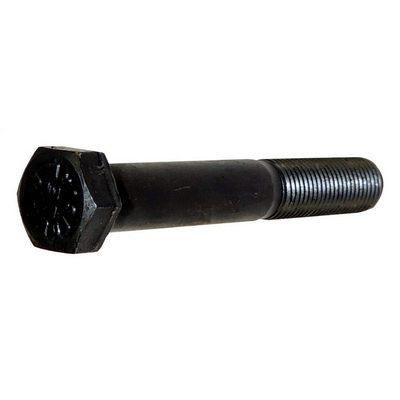

Crown Automotive Shackle Bolt – 809236

Crown Automotive

$8.95Usually ships within 6 to 7 days
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 9:30 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Shackle bolt for Jeep CJ and Willys leaf springs
  • Left or right, upper or lower position
  • 7/16 inch x 3 inch, grade 8
  • Used with Crown part number J0916646
  • Part number 809236 from Crown Automotive

Description

Overview

The Crown Automotive Shackle Bolt, part 809236, is a grade 8 shackle bolt for leaf springs on older Jeep models. It is 7/16 inch by 3 inch and can be used on the left or right side, and on the upper or lower shackle.

Crown Automotive pairs this bolt with its part number J0916646. It fits the 1959-1975 Jeep CJ3, CJ5 and CJ6, the 1957-1965 FC series and the 1963-1965 J-series trucks, along with several 1947-1958 Willys models.

Its job is to hold the spring shackle to the frame or hanger. Compare the head style with the original bolt before installing.

Key features

  • Grade 8 steel shackle bolt
  • 7/16 inch by 3 inch, 20 threads per inch
  • Usable on left or right shackle positions
  • Usable on the upper or lower shackle

Shackle bolt wear and reuse

A shackle bolt carries the load between the spring eye and the frame or hanger every time the axle moves up and down. Over time the shank can wear where the bushing turns, and threads can gall if the nut is overtightened. Before reinstalling, wipe the threads clean and inspect the shank for flat spots, scoring or bends. Any of these signs means the bolt should be replaced rather than reused.

When a leaf spring is serviced, the bolt, nut and bushing are usually replaced together so the pivot stays tight and square. Tighten the nut to the torque in your service manual rather than by feel, then recheck it after the first few drives. A loose shackle often makes a clunk over bumps, which is an early sign of wear.

  • Check the threads for galling before reuse
  • Inspect the shank for flat spots and bends
  • Replace worn bushings alongside the bolt

Specifications

Brand Crown Automotive
Part number 809236
Size 7/16 inch x 20 thread, 3 inch long
Grade Grade 8
Position Left or right, upper or lower
Used with Crown part number J0916646

Vehicle fitment

It fits the 1959-1975 Jeep CJ3, CJ5 and CJ6 in Base and Renegade trims, the 1957-1965 FC150 and FC170, the 1963-1965 J-200 through J-330 and J-2500 through J-3800 trucks, and several 1947-1958 Willys models.

The Wrangler and the CJ7 are not among the covered models. Make sure your vehicle’s year, model and trim are covered before ordering.

What’s included

One shackle bolt is included.

Fitment

VehicleYearsTrims
Jeep CJ31959Base
Jeep CJ51959–1975Base, Renegade
Jeep CJ61959–1975Base
Jeep FC1501957–1965Base
Jeep FC1701957–1965Base
Jeep FC170HD1963–1965Base
Jeep Gladiator1962–1965Base
Jeep J-2001963–1965Base
Jeep J-2101963–1965Base
Jeep J-2201963–1965Base
Jeep J-2301963–1965Base
Jeep J-25001965Base
Jeep J-26001965Base
Jeep J-27001965Base
Jeep J-28001965Base
Jeep J-3001963–1965Base
Jeep J-3101963–1965Base
Jeep J-3201963–1965Base
Jeep J-3301963–1965Base
Jeep J-35001965Base
Jeep J-36001965Base
Jeep J-37001965Base
Jeep J-38001965Base
Jeep Willys 1-Ton1947–1955All
Jeep Willys CJ-31954–1958All
Jeep Willys CJ-51955–1958All
Jeep Willys CJ-61956–1958All
Jeep Willys Sedan Delivery1951–1955All

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What size is shackle bolt 809236?

It is a 7/16 inch by 3 inch grade 8 bolt with 20 threads per inch. It is used with part number J0916646, so confirm the matching part is present before fitting.

Is it left or right side?

Either side. It can be used on the left or right side, and on the upper or lower shackle position, so one bolt suits any of those four spots.

Will it fit a Jeep CJ7?

No. The CJ7 is not among the covered models. The bolt fits the CJ3, CJ5 and CJ6 and several older Willys and FC models, so check your model against that coverage before ordering.

How can you tell the shackle bolt is worn?

Look for bends, thread damage, or a shank that has worn smooth where the bushing rides. Replace the bolt with its nut and any worn bushings, since a bent bolt can bind the shackle and stress the spring eye.

Should the shackle bushings be replaced with the bolt?

Often, yes. If the bushings are cracked, collapsed or loose in the shackle, replacing them with the bolt keeps the pivot tight. Grease the new bushing and bolt at installation so the joint moves freely.
