Overview

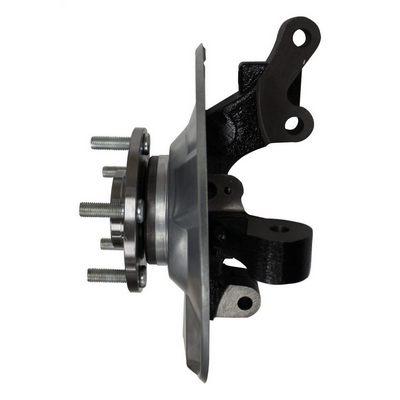

The Crown Automotive Axle Hub and Knuckle Assembly, part 68088499AD, is a front left assembly that includes the knuckle. It fits the 2007–2017 Jeep Compass and the 2007–2017 Jeep Patriot.
The assembly contains the knuckle, bearing, hub and backing plate, so it is a larger unit than a hub alone.
Key features
- Front left position
- Complete knuckle and hub assembly
- Includes bearing and backing plate
- Direct fit
Before replacing a knuckle
A steering knuckle carries the hub, bearing and brake components, and it connects to the steering and suspension. Before replacing one, check the wheel bearing for play, the ball joints for wear, and the brake parts that mount to the backing plate. A new assembly with the hub and bearing included saves separate bearing work but does not replace an inspection of the rest of the corner.
After installing a knuckle assembly, alignment should be checked because the steering geometry at that corner changes. Tighten the hub and knuckle fasteners to the torque specification for your vehicle rather than guessing. Re-check the lug nuts after the first drive, and inspect the ABS sensor wiring and the axle connection for damage during the job.
- Check wheel bearing play before the job
- Inspect ball joints and tie rod ends
- Have the front alignment checked afterward
- Recheck lug nut torque after the first drive
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 68088499AD |
| Manufacturer number | CRO68088499AD |
| Position | Front left |
| Included | Knuckle, bearing, hub, backing plate |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2007–2017 Jeep Compass and the 2007–2017 Jeep Patriot in the front left position.
The right front position is not covered by this entry. Confirm your vehicle’s year, model and trim before choosing this part.
What’s included
One front left axle hub and knuckle assembly with bearing, hub and backing plate.
