Overview

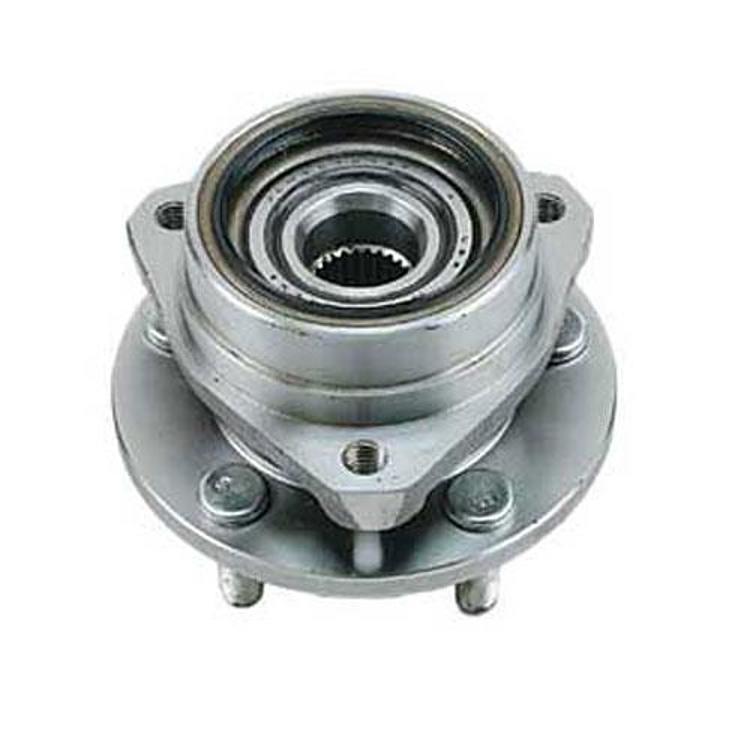

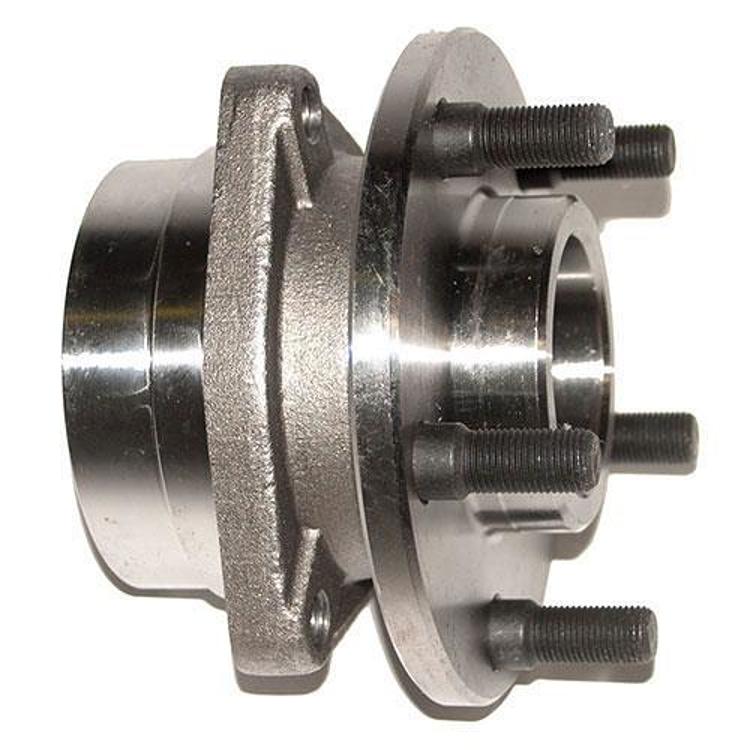

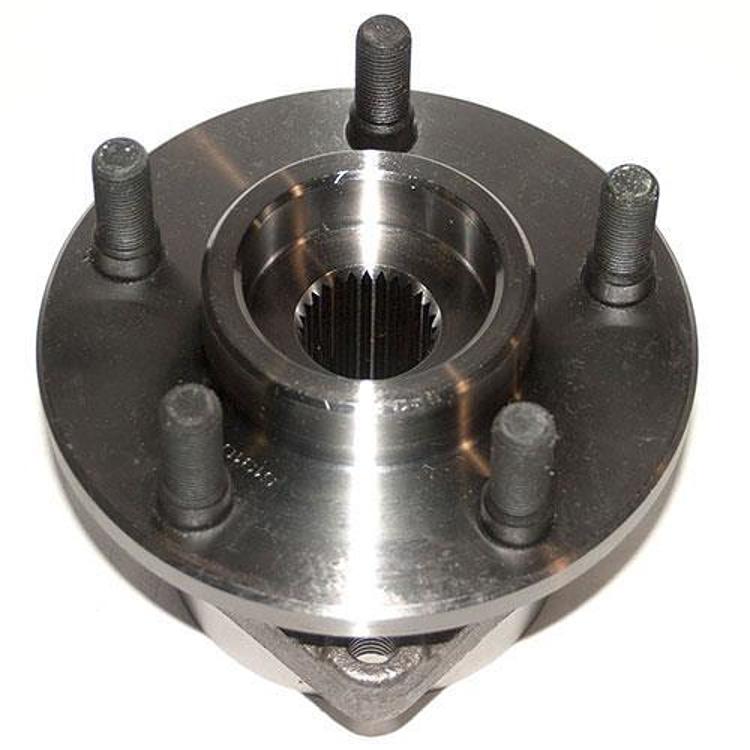

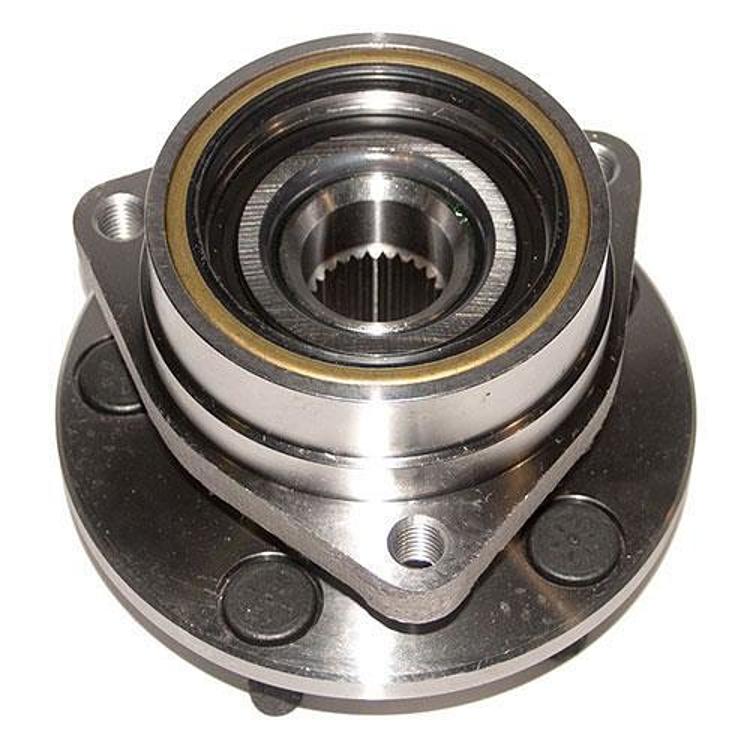

The Crown Automotive Dana 30 Front Hub Assembly, part 53000228, is a front hub with a taper bearing for the Dana 30 front axle. It fits the 1984–1989 Jeep Cherokee XJ and the 1987–1989 Jeep Wrangler YJ.
The taper bearing design makes this a traditional tapered hub rather than a ball-bearing unit.
Key features
- Taper bearing type
- Dana 30 front hub
- Front position
- Direct fit replacement
Taper bearing care and setup
A taper bearing hub depends on correct preload, so the bearing cups and cones must seat squarely and the adjustment nut must be set by feel rather than force. Taper bearings are serviced by repacking them with fresh grease, which keeps water and grit away from the rollers. Because the hub carries the wheel and brake load, a loose or dragging bearing shows up quickly as heat, noise or wander at the steering wheel.
Before installing a new hub, clean the spindle and check the seal surface for grooves. Replacing the grease seal along with the hub is a sensible step, since a leaking seal lets the bearing run dry. Keep the taper bearing and cup as a matched set, and avoid mixing parts from different bearings during reassembly.
- Repack the bearing with fresh high-temperature grease
- Replace the grease seal when the hub is removed
- Check the spindle for scoring before fitting
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | 53000228 |
| Manufacturer number | CRO53000228 |
| UPC | 848399016574 |
| Position | Front |
| Axle | Dana 30 |
| Bearing type | Taper |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 1984–1989 Jeep Cherokee (XJ) and the 1987–1989 Jeep Wrangler (YJ).
The 1990 and later Cherokee and Wrangler models are not covered. Confirm the year and trim against your truck before choosing this part.
What’s included
One front hub assembly.
