Overview

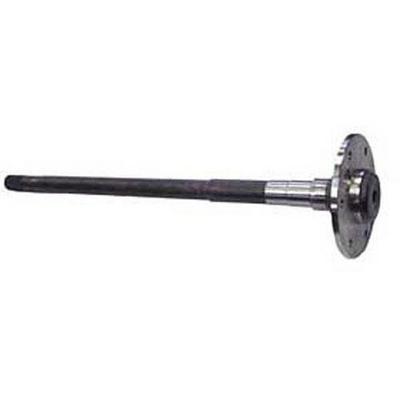

The Crown Automotive J3235808 is an AMC Model 20 rear axle shaft with 29 splines. It fits the 1980–1986 Jeep J10 in Base trim.
The title and position line say rear passenger side, while the axle shaft location line says driver side. Confirm the side with Crown before ordering.
Key features
- AMC Model 20 rear axle type
- 29 splines
- Rear position
Checking side and spline count
Rear axle shafts are side-specific, so the passenger and driver shafts are not interchangeable. The side is set by where the shaft installs in the axle housing and the wheel it drives. Before fitting, compare the shaft with the one coming out, paying attention to which flange it bolts to and which way the splined end faces.
A spline count mismatch will prevent the shaft from seating in the differential or the hub. Count the splines on the old shaft and compare them with the new one, and check the overall length and the bearing and seal locations. A shaft that looks close but does not match will cause binding or wear at the splines.
Signs that a rear axle shaft is worn include clicking or clunking during turns, vibration under acceleration, grease leaking from the axle housing, and cracks or twisting in the shaft. Splines with rounded or pitted teeth also point to a worn shaft that should be replaced rather than reused.
- Confirm side before fitting
- Count splines on the old and new shaft
- Inspect splines for rounding or pitting
Specifications
| Brand | Crown Automotive |
|---|---|
| Part number | J3235808 |
| Axle maker | AMC |
| Axle location | Rear |
| Position | Rear right (passenger side per title) |
| Axle type | AMC 20 |
| Axle spline | 29 splines |
Vehicle fitment
It fits the 1980–1986 Jeep J10 in Base trim.
Before fitting, compare the 29 splines and the AMC Model 20 type with the shaft being replaced, and confirm the side, because the title and the axle shaft location line do not agree.
The list names only the 1980–1986 Jeep J10 in Base trim, so the fitment is narrow. The bullets list 29 splines and the AMC Model 20 type.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One rear axle shaft.
