California Supertrucks 4.5 Inch Lift Spindle Kit – CSS-C1-9

California Super Trucks

Shop California Super Trucks Spindle on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • California Super Trucks CSS-C1-9 4.5 inch lift spindle kit
  • Cast spindles, stainless steel brake lines, coilover spacers and lift blocks
  • U-bolt kit and hardware kit included
  • No vehicle year, make or model named; shocks not included

Description

Overview

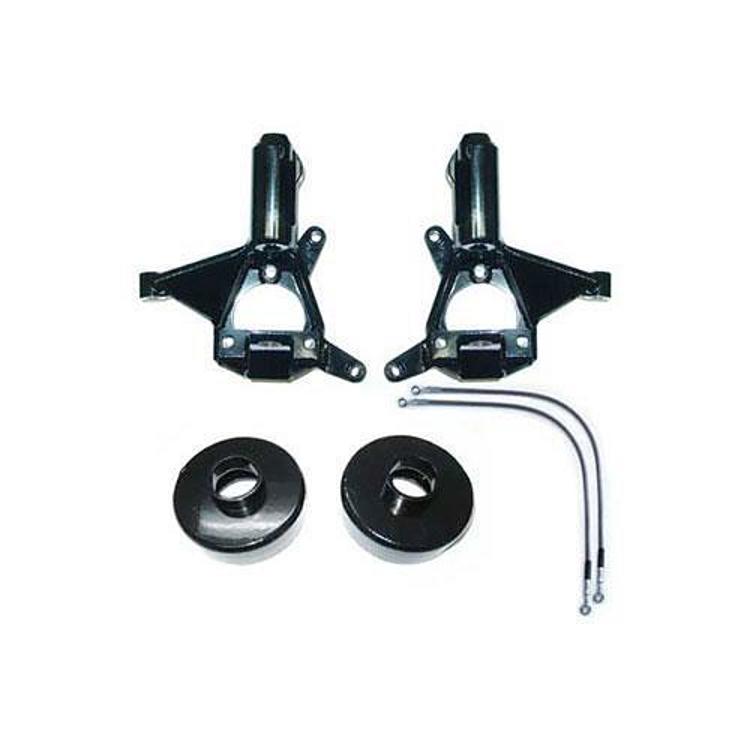

The CSS-C1-9 is a 4.5 inch lift spindle kit with cast spindles, stainless steel brake lines, coilover spacers, lift blocks, a U-bolt kit and a hardware kit.

California Super Trucks describes itself as a maker of bolt-on truck suspension and says its components use high-quality materials for durability.

Key features

  • 4.5 inch lift
  • Cast spindles
  • Stainless steel brake lines
  • Coilover spacers and lift blocks
  • U-bolt kit and hardware kit

Brake lines and front geometry

Brake lines often change when the front spindles change, because the caliper sits at a new position. Stainless steel lines are common on lifted trucks since they resist swelling under pedal pressure. After the brake lines are routed and fitted, bleed the system and check the fluid level, then test the pedal before driving on the road.

Lift blocks and coilover spacers alter the spring and shock geometry, so the suspension should be checked after the new parts are fitted. A U-bolt kit must be tightened to the correct torque once the truck settles at its new height.

  • Bleed the brakes after fitting new lines
  • Check pedal feel before driving
  • Re-torque U-bolts after the first drives
  • Confirm shock length if you run coilovers

Specifications

Brand California Super Trucks
Part number CSS-C1-9
UPC 70000526936
Lift 4.5 inch
Lift height range 3 to 4.99 inches
Spindle type Cast
Brake lines Stainless steel
Suspension type Knuckle
Shocks included No
Rear lift method None

Vehicle fitment

It is a direct fit for knuckle suspensions in the 3 to 4.99 inch lift range. Check the kit against your truck before ordering.

This kit adds no rear lift. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lift spindles change front geometry, so have the alignment checked after the kit is installed. A lift also raises the center of gravity and changes handling, so drive carefully until the setup is fully adjusted.

What’s included

Cast spindles, stainless steel brake lines, coilover spacers, lift blocks, a U-bolt kit and a hardware kit. Not included: shocks.

SKU: CSTCSS-C1-9 Category:

Specification

Shipping weight 41.00 lbs
Package dimensions 18.00 × 12.00 × 8.00 in
brands

Questions & Answers

What lift height is the CSS-C1-9?

It is a 4.5 inch lift that falls within the 3 to 4.99 inch lift height range. Check your vehicle's starting height before buying.

Does the CSS-C1-9 include shocks?

No. The kit does not include shocks. It does include coilover spacers, lift blocks, a U-bolt kit, stainless steel brake lines and a hardware kit.

Which trucks does the CSS-C1-9 fit?

It is a direct fit for knuckle suspensions in the 3 to 4.99 inch lift range. Verify the match for your year, make, model and trim before you order.

Do the brake lines need replacing with a lift kit?

Often they do, especially when the kit includes new lines. Check routing and clearance at the new caliper position, then bleed the brakes and test the pedal before driving.
