California Supertrucks 4 Inch Lift Spindle Kit – CSS-N1-2

California Super Trucks

Shop California Super Trucks Spindle on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • California Super Trucks CSS-N1-2 4 inch lift spindle kit
  • Fabricated spindles with a powder coated black finish
  • Hardware kit included; shocks not included
  • Part number CSS-N1-2, UPC 70000489105

Description

Overview

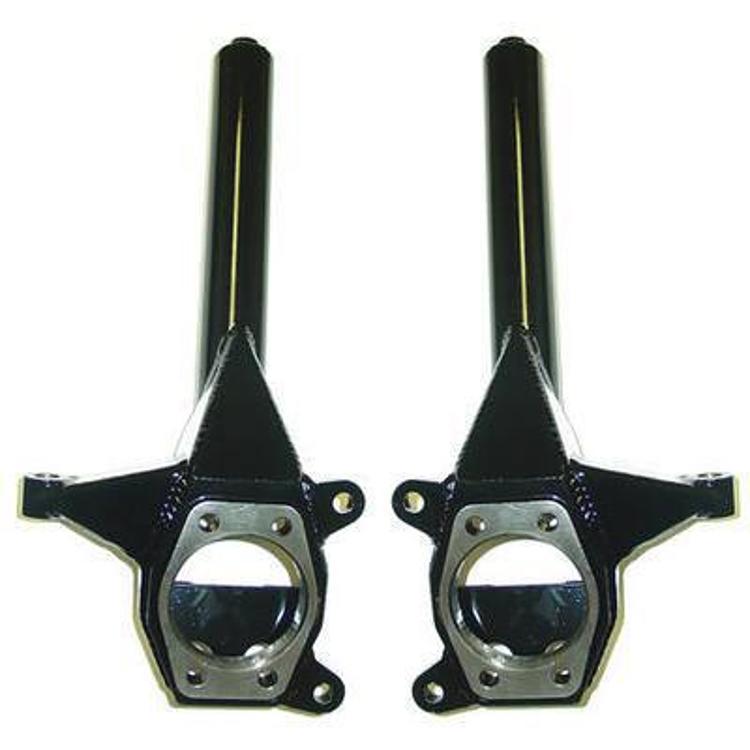

The California Super Trucks CSS-N1-2 is a 4 inch lift spindle kit with fabricated spindles finished in black powder coat. It is a bolt-on suspension kit for trucks.

California Super Trucks describes its components as built from high-quality materials for durability. This kit uses fabricated spindles rather than cast ones.

Key features

  • Fabricated spindles
  • Powder coated black finish
  • 4 inch lift height
  • Hardware kit included

Alignment and front end setup

Raising the front with spindles changes caster, camber and toe, which affects how the truck tracks and how the tires wear. Fabricated spindles are built to hold their geometry, but the steering linkage still needs to be set up correctly after installation. A shop with a proper alignment rack is the usual way to finish the job.

Lift changes can also affect brake hose length, tie rod angles and steering stop clearance. Check the front brake lines for tension at full lock, and look for any contact between the tires and the frame or fenders. Replacing worn tie rod ends at the same time keeps the new geometry from wearing out early.

  • Set caster, camber and toe after install
  • Check brake hose length at full lock
  • Inspect tie rod ends for play
  • Look for tire contact at full steering

Specifications

Brand California Super Trucks
Part number CSS-N1-2
UPC 70000489105
Lift height 4 inch
Lift height range 3 to 4.99 inches
Spindle type Fabricated
Finish Powder coated black
Suspension type Knuckle
Shocks included No
Rear lift method None

Vehicle fitment

It is a direct fit for knuckle suspensions within the 3 to 4.99 inch lift range. Confirm fit for your truck before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Lift spindles change front geometry, so have the alignment checked once the fabricated spindles are installed. This kit has no rear lift, so the rear end is unchanged.

What’s included

Fabricated spindles and a hardware kit. Not included: shocks.

SKU: CSTCSS-N1-2 Category:

Specification

Shipping weight 44.00 lbs
Package dimensions 22.00 × 16.00 × 8.00 in
brands

Questions & Answers

What is the CSS-N1-2?

It is a California Super Trucks 4 inch lift spindle kit with part number CSS-N1-2 and UPC 70000489105. It has fabricated spindles finished in black powder coat and includes a hardware kit.

Are these spindles cast or fabricated?

Fabricated. The kit uses fabricated spindles finished in black powder coat, and this part number is the fabricated version. Check the spindle type against your truck's existing knuckles before ordering.

Does it fit my truck?

Confirm your vehicle's year, model and trim before ordering. This kit is a direct fit for knuckle suspensions in the 3 to 4.99 inch range, so check that your truck uses knuckles and that the lift height falls within that range.

Do lift spindles need new shocks?

Not always, but many setups do. Shocks that are not included with the kit should be checked for length and travel once the lift changes ride height. Replacing them alongside the spindles keeps damping consistent.
