Overview

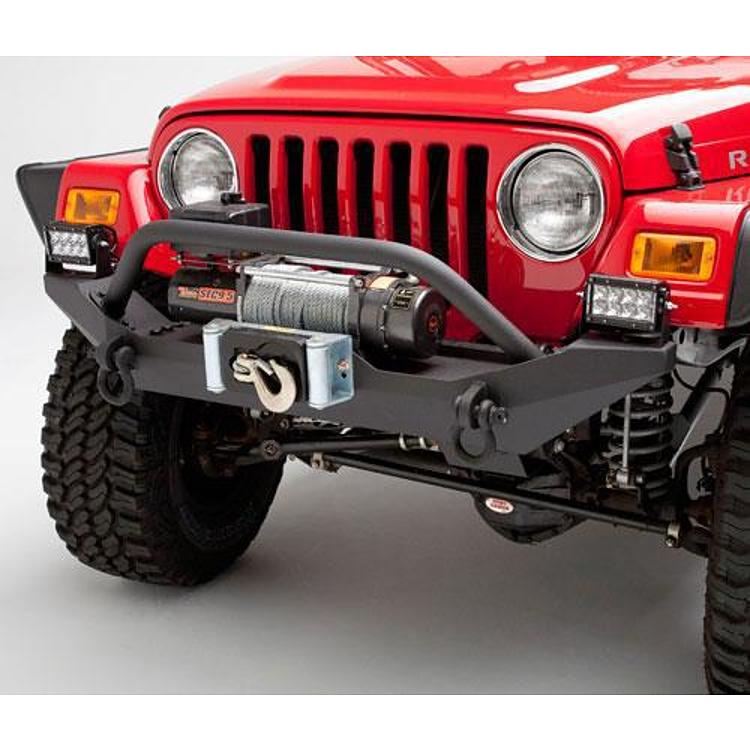

The Body Armor 4×4 formed front bumper with grill guard and winch mount, part number TJ-19531, is a front bumper for the Jeep Wrangler TJ and YJ (1997-2006 TJ, 1987-1995 YJ). It has a 1/4-inch integrated winch plate, a bolt-on hoop with light tabs and an included steering box skid plate.
Body Armor 4×4 builds the bumper from 3/16-inch steel plate, with a 1/4-inch thick winch plate sized for most popular winches. Reinforced wings are shaped to take punishment and taper up toward the fender for better approach angle at the tire while still protecting the vehicle. The hoop bolts on to add protection for the winch and comes with two light tabs, and two more light mounting points sit on the wings. Shackles are fully integrated, and installation is bolt-on with no drilling required.
Key features
- 1/4-inch thick integrated winch plate for most popular winches
- Rest of the bumper in 3/16-inch steel plate
- Bolt-on grille guard hoop with two light tabs
- Two additional light mounting points on the wings
- Reinforced wings that taper toward the fender for approach angle
- Steering box skid plate included
- Fully integrated shackles
- Dual process black powder coat for corrosion resistance
Before you install a winch bumper
A front bumper with an integrated winch plate changes how the front of the vehicle takes load during recovery. The winch plate carries the pull, so the mounting bolts and the frame attachment points take most of the stress. Check that the winch you plan to run is rated for the load you expect and that its mounting holes line up with the plate before the first recovery.
Light mounts and steering box plates are often added at the same time. Wire hoop lights through a fused relay, route harnesses away from moving parts, and keep the steering box plate clear of linkage at full lock. This is also a good point to inspect the factory frame ends and steering components for wear.
- Retorque the bolts after the first few trail runs
- Inspect winch plate welds after heavy recovery
- Keep wiring off the hoop edges
Specifications
| Brand | Body Armor 4×4 |
|---|---|
| Part number | TJ-19531 |
| UPC | 859909002338 |
| Product | Formed front bumper with grill guard and winch mount |
| Material | Steel plate, 3/16 in; winch plate 1/4 in |
| Finish | Textured black powder coat, dual process |
| Width | Full |
| Winch mount | Integrated winch plate |
| Light mounts | Two hoop tabs plus two wing mounts |
| Shackles | Fully integrated |
| Grille guard | Bolt-on hoop included |
| Skid plate | Steering box plate included |
| Fit type | Direct fit, bolt-on |
Vehicle fitment
It is a new formed front bumper for Jeep TJ and YJ, covering the 1997-2006 Wrangler TJ and the 1987-1995 Wrangler YJ.
The bumper is built for the TJ and YJ Wrangler. Check fit against your vehicle’s year, model and trim before buying.
Installation notes
Installation is a simple bolt-on and no drilling is required. A hoop-mounted light set should be wired with a fused relay.
What’s included
- Formed front bumper with integrated winch plate
- Bolt-on grille guard hoop with two light tabs
- Steering box skid plate
- Integrated shackle mounts
Not included: a winch or lights.
