Body Armor Pro-Series Stubby Front Winch Bumper (Black) – JK-19536

Body Armor 4x4

Shop Body Armor 4X4 Front Bumpers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Stubby steel plate bumper with winch mount
  • Integrated skid plate and shorty stinger hoop
  • Recovery points tied to the frame
  • Optional bumper wings for a wider profile

Description

Overview

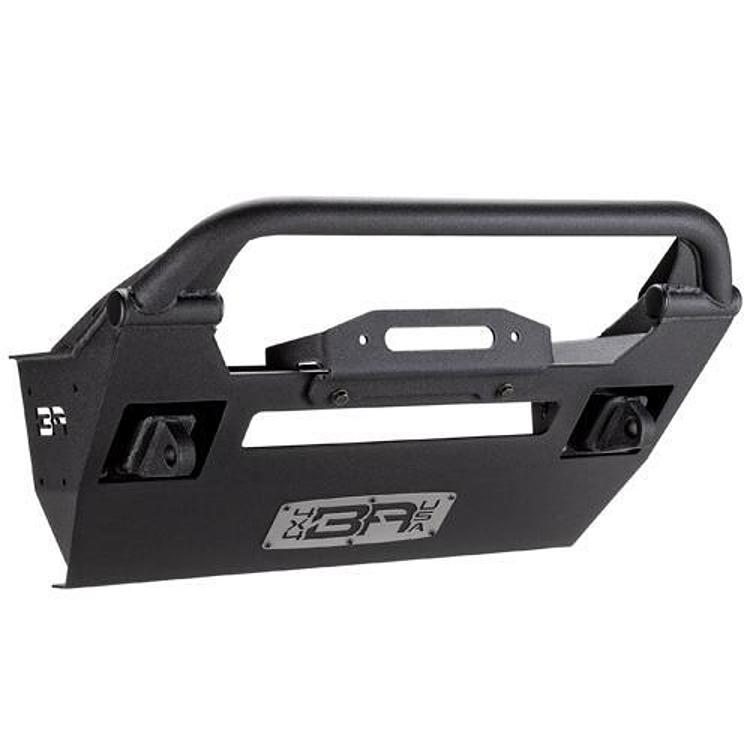

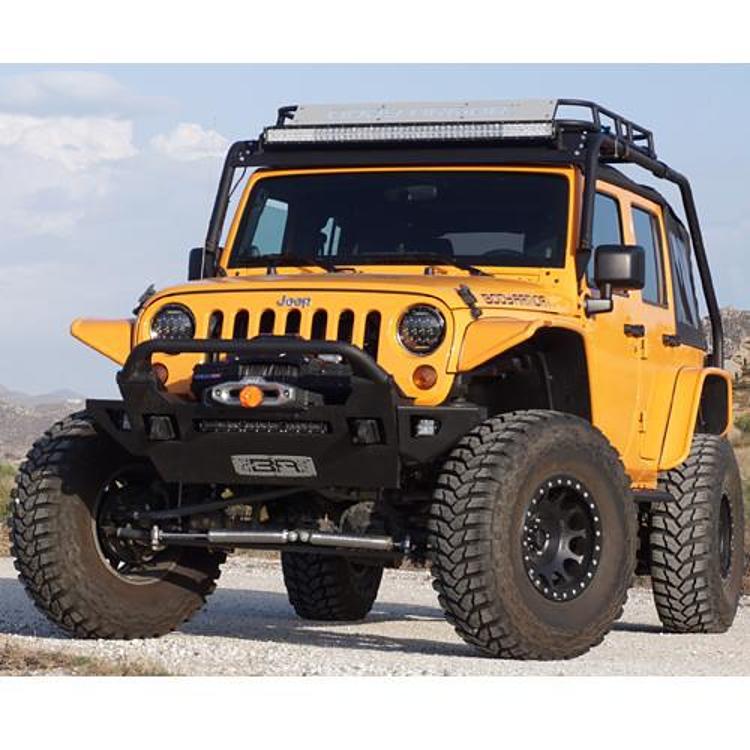

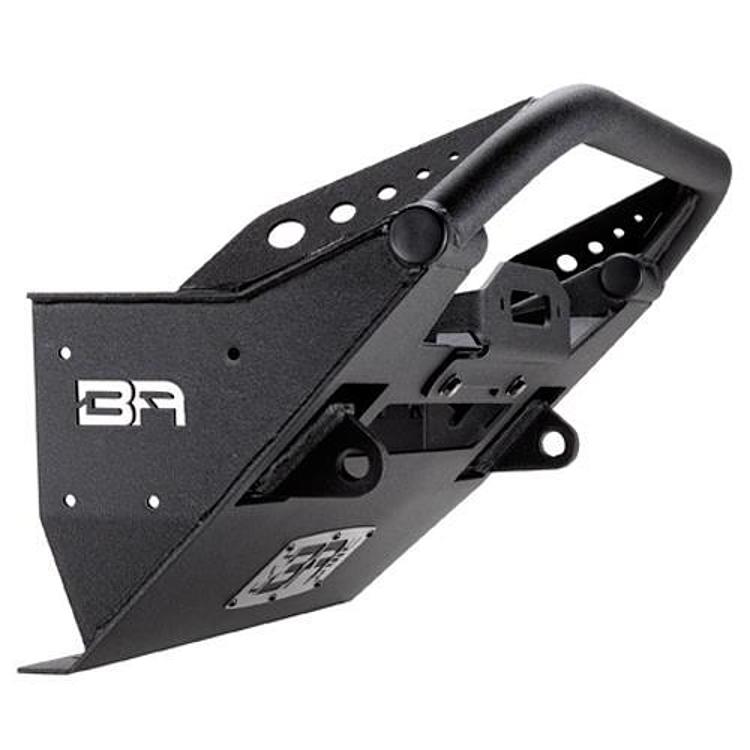

The Body Armor Pro-Series Stubby Front Winch Bumper, part number JK-19536, is a 3/16 inch steel plate front bumper in textured black powder coat for two-door and four-door models.

It has an integrated front skid plate that runs down to the crash bar and an aggressive approach angle that makes steep climbs easier. An integrated shorty stinger hoop with gusset support braces adds protection, and the winch plate is 1/4″ steel. The massive recovery points tie directly to the frame, and the bumper does not require relocating the vacuum pump on newer models. Optional bumper wings widen the profile.

Key features

  • Integrated front skid plate that runs down to the crash bar
  • Aggressive approach angle for steep climbs
  • Shorty stinger hoop with gusset support braces
  • Winch plate in 1/4″ steel, with the winch mount included
  • Recovery points tied directly to the frame
  • No need to relocate the vacuum pump on newer models

Stubby bumper trail use

A stubby front bumper keeps the nose short, which can help with approach and departure on tight trails, but it also leaves less surface area for light mounts and gear. A shorter bumper suits trucks that spend time on rocks and ledges, where a short nose helps avoid contact with obstacles. Think about how much gear you plan to carry before choosing a stubby design.

Because the winch plate and skid plate sit low, check the underside after rough runs for dents, cracks or loose fasteners. The frame-tied recovery points spread load into the vehicle, so keep the mounting hardware tight and inspected. Consider the wings or extra lights as separate purchases if the basic profile is not enough.

  • Consider how much gear you carry
  • Inspect the underside after rough runs
  • Keep recovery point hardware tight
  • Plan any wings or lights as separate purchases

Specifications

Brand Body Armor 4×4
Part number JK-19536
UPC 859909003700
Product type Stubby front winch bumper (Pro-Series)
Width Stubby
Material Steel plate, 3/16″
Winch plate 1/4″ steel
Finish Textured black powder coat
Body styles 2-door and 4-door models
Winch mount Included
Light mounts Included
D-ring mount Not included
Optional wings, cube lights B/AJK-19536-WC
Optional wings, 3″ round lights B/A19536-WR

Vehicle fitment

This bumper suits two-door and four-door models and newer models. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm fit for your vehicle’s year, model and trim before choosing this bumper.

Installation notes

The bumper includes the winch plate, and on newer models the vacuum pump does not need to be relocated.

What’s included

  • Pro-Series Stubby front winch bumper with integrated skid plate and stinger hoop
  • Winch plate

Not included: D-ring mounts, a winch and lights. The optional bumper wings are separate parts.

SKU: B/AJK-19536 Category:

Specification

Shipping weight 95.00 lbs
Package dimensions 50.00 × 24.00 × 24.00 in
brands

Questions & Answers

What vehicle does the Body Armor JK-19536 fit?

This bumper suits two-door and four-door models and newer models. Confirm fit for your vehicle's year, model and trim before ordering.

Does the Pro-Series Stubby bumper include a winch mount?

Yes. The winch mount is included, with a winch plate made from 1/4" steel. The winch itself and its lights are not included with the bumper.

Can I widen the bumper profile?

Yes. Body Armor offers optional bumper wings, part number B/AJK-19536-WC for cube lights and B/A19536-WR for 3" round lights. The wings add a wider profile to the bumper and are purchased as separate parts.

Do I need to relocate the vacuum pump?

No. Body Armor says there is no need to relocate the vacuum pump on newer models with this bumper, so that step is not part of this bumper's installation.

Does a stubby bumper need a skid plate underneath?

No separate skid plate is needed, since this bumper has an integrated skid plate that runs down to the crash bar. Check that plate after rough trail use for dents or loose bolts.
