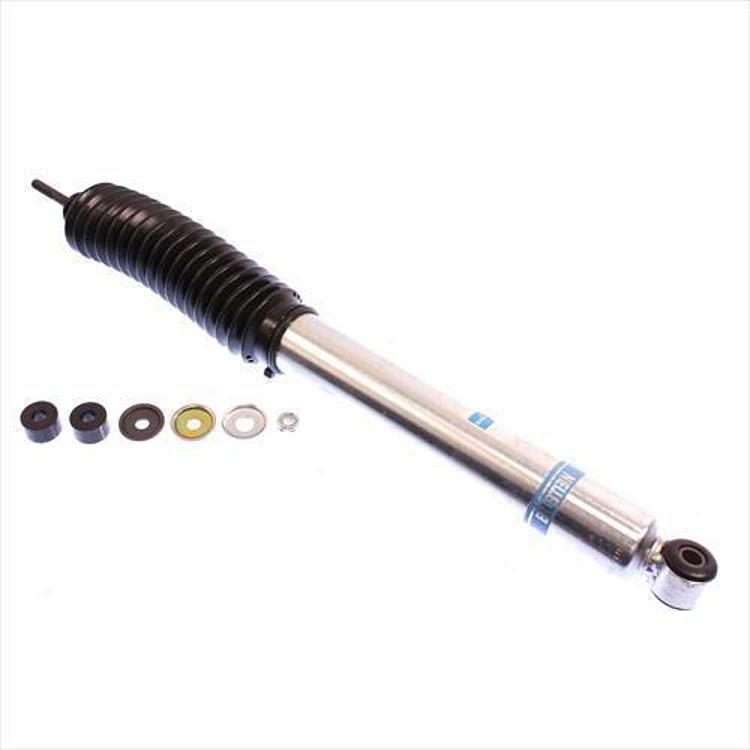

Bilstein 5100 Series Shock Absorber – 24-186728

Bilstein

$93.66In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5100 Series monotube gas charged shock, part 24-186728
  • Fits 2005-2018 Toyota Tacoma in several trims
  • Upper stem mount, 12mm lower eye, 11mm shaft
  • Boot included; 8.92 in. travel length

Description

Overview

The Bilstein 24-186728 is a 5100 Series monotube gas charged shock absorber with an 8.92 in. travel length. It fits the 2005 to 2018 Toyota Tacoma in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims.

Bilstein designed the 5100 Series for lifted trucks, Jeeps and prerunners. The single tube gas pressure body aims for consistent, fade-free damping over long use, and the non-coilover body is built around the stock OEM mounting configuration of the lift kits it was designed for.

Key features

  • Monotube gas pressure construction
  • Self-adjusting deflecting disc valving
  • Independent rebound and compression tuning
  • High-flow piston that Bilstein says reduces harshness
  • Larger working piston area for damping control
  • Boot included

Signs the old shock is worn

On a Tacoma, the front and rear shocks work together to control body movement after the suspension compresses. When damping weakens, the truck may bounce several times after a dip, dive under braking or feel loose on washboard gravel. Worn shocks can also cause uneven tire wear because the wheel keeps bouncing on the tread.

Inspect the old unit before removing it. Look for oil on the body, a dented shaft, cracked bushings or a split boot. Check that the stem upper mount fits the existing bracket and that the lower eye sits square before loosening any bolts.

  • Oil residue on the outer tube
  • Bouncing after rough road sections
  • Uneven tire wear across the tread
  • Cracked or loose mount bushings

Specifications

Brand Bilstein
Part number 24-186728
UPC 651860554761
Series 5100 Series
Collapsed length 14.02 in.
Extended length 22.94 in.
Travel length 8.92 in.
Lower mount Eye, 12mm
Upper mount Stem
Shaft diameter 11mm
Body design 46mm ID smooth body, non-coilover
Internal design Monotube
Gas charged Yes
Reservoir No
Finish Zinc plated
Boot Included
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2005 to 2018 Toyota Tacoma in the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro and TRD Sport trims.

Other Toyota models and Tacoma model years outside 2005 to 2018 are not on this list. Confirm your vehicle’s year, model and trim before ordering.

What’s included

One Bilstein 5100 Series shock absorber with its boot. Check your truck’s suspension height before ordering.

SKU: BIL24-186728 Category:

Specification

Shipping weight 4.41 lbs
Package dimensions 26.80 × 3.00 × 3.00 in
brands

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2018Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Bilstein 24-186728 fit a 2012 Toyota Tacoma?

Yes. It fits the 2005 to 2018 Toyota Tacoma, including SR5, TRD Off-Road and TRD Sport trims. Confirm fit for your vehicle's year, model and trim before ordering.

What is the shaft diameter of the 24-186728?

The shaft diameter is 11mm. The lower mount is a 12mm eye and the upper mount is a stem. The travel length is 8.92 in., with a collapsed length of 14.02 in. and an extended length of 22.94 in.

Is a boot included with the 24-186728?

Yes. The boot is included. The shock is a monotube, gas charged design with no reservoir and a zinc plated finish.

How do I tell whether a Tacoma shock needs replacing?

Replace a shock when it leaks, makes knocking sounds or lets the body keep moving after bumps. A bounce test helps: press down on a corner and release. A worn shock lets the truck rebound more than once. Inspect both sides so the pair works evenly.
