Overview

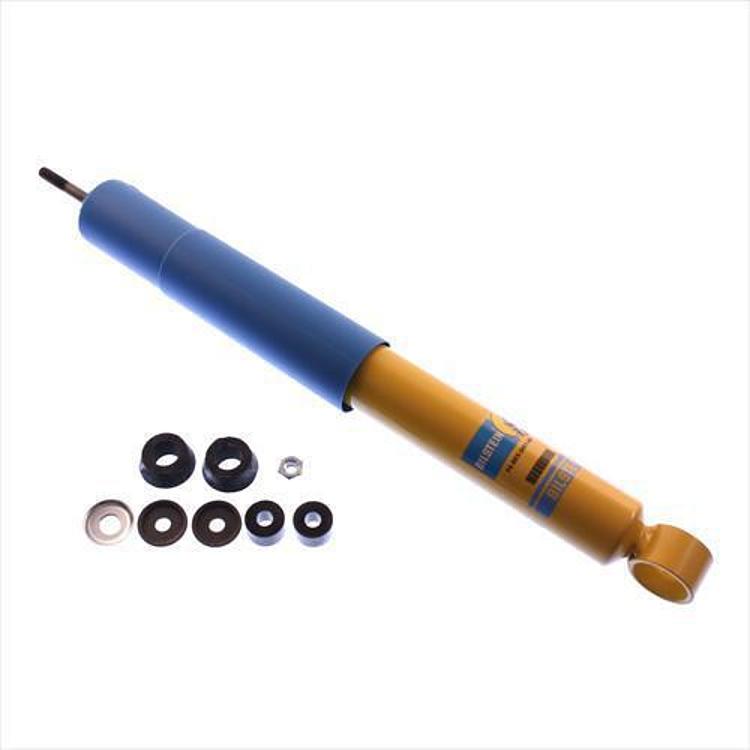

The Bilstein 4600 Series rear shock absorber, part number 24-024518, is a gas charged monotube damper built for rear suspension use. Its body measures 2 in in diameter, the finish is yellow, and boots come with the unit. No vehicles are named for this part, so match its dimensions and mounting points to your application before choosing it.
Inside the tube, a dividing piston separates the damping oil from the gas charge. As the oil heats during hard driving, the piston lets it expand without foaming or losing viscosity, which keeps full damping available as temperatures climb. Heat leaves the oil through the outer wall of the body and dissipates into the surrounding air. The yellow finish and 2 in body are the two visible details to compare against the shock you are replacing.
Key features
- Gas charged monotube body with a dividing piston that lets the oil expand as heat builds
- Seamless tube formed by a special extrusion method, with tight peak-to-valley tolerance and consistent wall thickness
- Piston head that allows compression and rebound damping to be tuned independently
- Fewer parts than conventional twin tube designs.
- Digressive design that the maker credits with extreme durability and long service life
- Boots included with the shock
Replacing a rear monotube shock
A monotube shock keeps its oil and gas charge in one tube, so heat leaves the oil through the body wall. That keeps damping consistent during long drives and repeated hard use. Rear shocks take a lot of abuse from potholes, cargo and trailer loads, so their seals, boots and mounting eyes wear over time.
Before replacing one, compare the old shock’s collapsed and extended lengths and its mounting style. Some trucks and SUVs need the shock on both sides changed together to keep handling even. Look for oil on the body, a knocking sound over bumps, or a rear end that keeps bouncing after a dip, which all suggest the damping has faded. Check the boot, too, since a torn boot lets grit reach the shaft. Clean the mounting area before installing so the new hardware seats properly.
Specifications
| Brand | Bilstein |
|---|---|
| Part number | 24-024518 |
| UPC | 651860410494 |
| Shock series | 4600 Series |
| Position | Rear |
| Type | Monotube |
| Hydraulic / gas charged | Gas charged |
| Body diameter | 2 in |
| Finish | Yellow |
| Reservoir | No |
| Boots | Included |
| Fitment type | Direct fit |
| Lift height | 0 in lift/drop |
Vehicle fitment
Match the shock’s dimensions and mounting points to your vehicle before ordering. It is a direct-fit rear shock, so check the length and eye placement against the unit you are replacing.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The shock absorber with its boots. Check the package contents against your installation for any mounting hardware needed.
