Overview

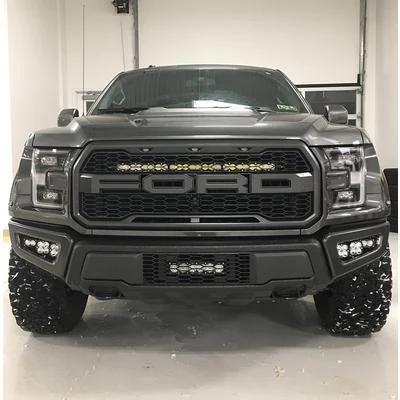

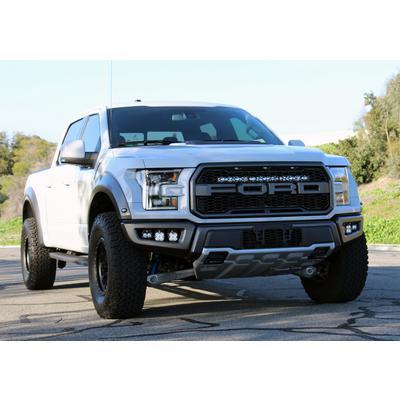

The Baja Designs 30 inch S8 Grille LED Light Bar Kit (part 447561) mounts a 30 inch S8 light bar in the grille of the Ford F-150 Raptor. It fits 2017 to 2021 Ford F-150 Raptor models. The brackets bolt to the factory mounting locations without drilling or cutting.
The bar runs in a driving combo beam pattern, and the brackets accept only this light bar. The harness taps into the factory up-fitter switches so the bar can be controlled from a switch already in the truck. The kit is built for both function and visual appeal.
Key features
- 30 inch S8 light bar in a driving combo beam
- Brackets bolt to factory mounting locations
- No drilling or cutting required
- Harness for the factory up-fitter switches
- Brackets built for this light bar only
Light bars and grille exposure
A grille light bar is exposed to road debris, washer spray and temperature changes, so its housing and lens need regular attention. The bar’s position in the grille gives a wide field of light for trail use, and it can also add useful light when driving in dark, unlit areas. Because the bar is visible from the front, many owners keep the lens clean and the aim consistent to keep the setup looking tidy.
Care is mostly about fasteners and wiring. Check the bracket bolts after rough roads, look for loose hardware at the grille, and confirm the harness is still secured to the frame. Lenses can be cleaned with mild soap and water, and a soft cloth avoids scratches. If the bar flickers or dims, check the connectors and the up-fitter switch before assuming the light itself has failed.
- Check grille bracket bolts after rough roads
- Clean the lens with mild soap and water
- Inspect the harness connectors if output dims
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 447561 |
| Light | 30 inch S8 light bar |
| Beam pattern | Driving combo |
| Mounting | Factory mounting locations, with brackets and hardware |
| Wiring | Harness for factory up-fitter switches |
| Fitment list | 2017 to 2021 Ford F-150 Raptor |
Vehicle fitment
The brackets are made for the grille mounting points on the 2017 to 2021 Ford F-150 Raptor. Confirm your truck’s year and model before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The brackets and hardware bolt to the factory mounting locations, and the harness taps into the factory up-fitter switches. Check the wire route before final mounting, and check local rules for light bars on public roads.

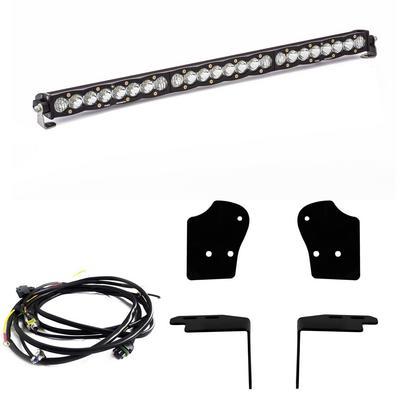

What’s included
One 30 inch S8 driving combo light bar, the grille brackets and hardware, and the harness for the factory up-fitter switches.
