Overview

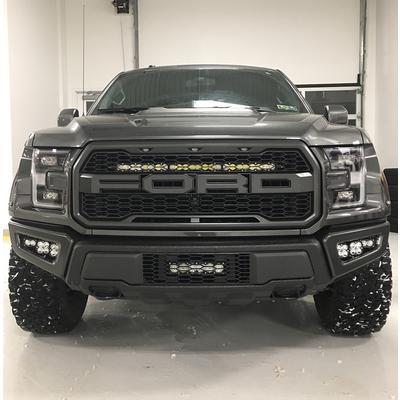

The Baja Designs 10 inch OnX6+ Lower Grille LED Kit (part 447557) mounts a 10 inch OnX6+ driving combo light in the lower grille of the Ford F-150 Raptor. The kit is made for 2017 to 2021 Ford F-150 Raptor models. It is built for both function and visual appeal, with a quick install and minimal modifications.
The kit includes one 10 inch OnX6+ in a driving combo beam pattern. The brackets will not accept any other light. The included harness lets the owner tap the lights into the factory up-fitter switches, so the light can run from a switch already in the vehicle.
Key features
- 10 inch OnX6+ light in a driving combo beam
- Lower grille mounting
- Brackets designed for this light only
- Harness for the factory up-fitter switches
- Quick install with minimal modifications
Aiming a driving combo light
A driving combo beam pairs a wide spread near the vehicle with a longer reach ahead, which suits trail and night driving at moderate speeds. The grille location puts the light low and forward, so it lights the ground in front of the bumper well. Aim the light so the brightest part of the beam lands on the trail surface, not on the horizon, to reduce glare for other drivers.
Grille-mounted lights take the same road debris as the grille itself. Inspect the lens and bracket bolts after rough trails and washing. Keep the harness clear of the radiator fan, engine accessories and suspension travel, and secure any slack with clips. Before each season, check the fuse, the switch connections and the ground point, since a poor ground causes dim or flickering output.
- Aim low to light the trail surface
- Inspect bracket bolts after rough trails
- Clip the harness clear of moving parts
- Check ground connections each season
Specifications
| Brand | Baja Designs |
|---|---|
| Part number | 447557 |
| Light | 10 inch OnX6+ |
| Beam pattern | Driving combo |
| Mounting | Lower grille brackets |
| Wiring | Harness for factory up-fitter switches |
| Fitment list | 2017 to 2021 Ford F-150 Raptor |
Vehicle fitment
The kit is made for the 2017 to 2021 Ford F-150 Raptor. Confirm the year and model of your truck before ordering, since the kit uses brackets sized for the lower grille of those models.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The harness taps into the factory up-fitter switches, and the installation requires minimal modifications. Check the wire route and fuse the feed before use, and check local rules for auxiliary lights on public roads.
What’s included

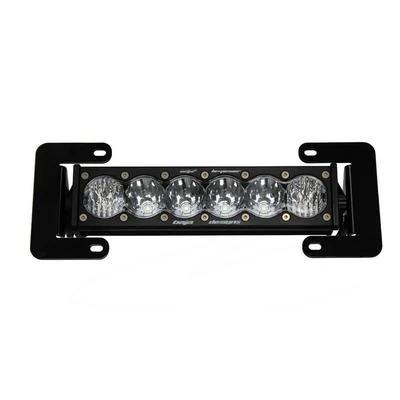

One 10 inch OnX6+ driving combo light, the brackets for the lower grille and the harness for the factory up-fitter switches.
