Overview

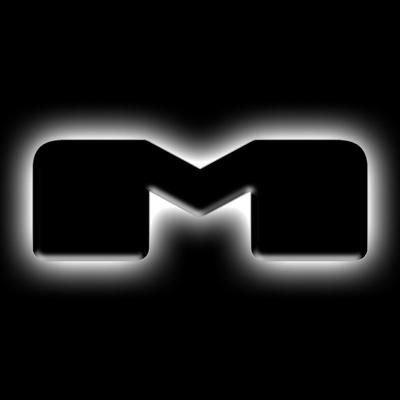

The Oracle Lighting Universal Illuminated LED “M” Letter Badge (matte black, part 3141-M-001) is a single letter M for a marquee-style glowing vehicle badge. When powered, the letter emits a soft edge-lit glow, and the sleek letter housing keeps a customized look when the light is off. The letters are sold one at a time, so you choose the letters your badge needs. Oracle designed the letters for DIY use, so a badge can be laid out before any adhesive is pressed down. The lit edge is most noticeable at night, when the glow shows the letter’s shape against the surface.
The letter is about 3.75 inches wide, 1.4 inches tall and 0.5 inch thick, and draws less than 0.1 amp. Installation uses VHB double-stick adhesive, with Oracle’s VHB Primer (part 2082-504) recommended for a stronger bond. Wire it to a 12V source such as the parking lights, an ignition fuse or a toggle switch.
The letter is finished in matte black and sold on its own, so a badge can use the same finish throughout.
Key features
- Soft edge-lit glow when on
- Sleek letter housing for a high-end look when off
- Draw of less than 0.1 amp per letter
- VHB double-stick adhesive
- 12V source compatible
- Matte black finish
Badge layout and lettering

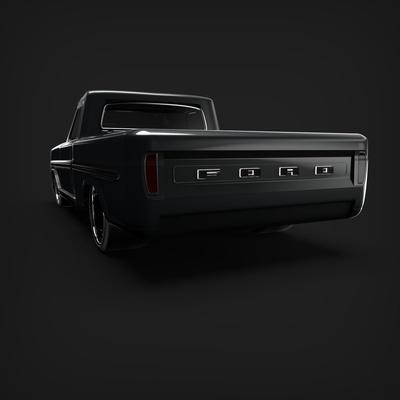

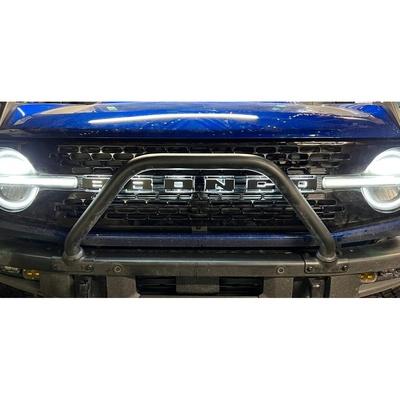

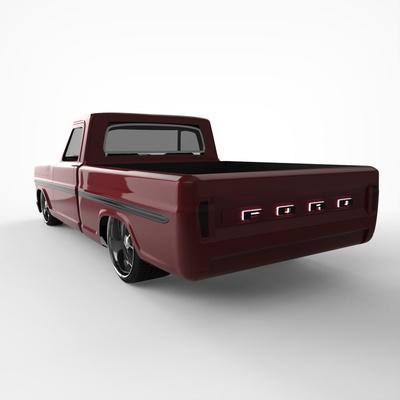

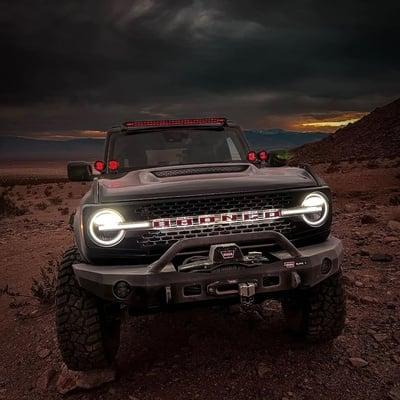

Lettering a badge is mostly a layout task. Spacing between letters affects how the word reads, and a letter placed too close to a panel edge can look cramped in daylight. Set the full badge on a template first, then check how the glow of each letter will look at night, when the edge lighting is most visible.
Because each letter is adhesive mounted, placement is a one-time decision. Mark the centerline and reference points with low-tack tape before peeling any backing. Keep the wire route short and out of sight, and make sure it is secured away from heat, moving parts and water paths. Recheck the glow after the first drives to confirm the letter is wired as planned.
- Mark centerline with low-tack tape
- Keep wire short and out of sight
- Recheck glow after the first drives
Specifications
| Brand | Oracle Lighting |
|---|---|
| Part number | 3141-M-001 |
| Letter | M |
| Finish | Matte black |
| Size | Approximately 3.75 in wide, 1.4 in tall, 0.5 in thick |
| Current | Less than 0.1 amp per letter |
| Voltage | 12V |
| Mounting | VHB double-stick adhesive |
| Primer | VHB Primer, Oracle part 2082-504 |
Vehicle fitment
This letter is a universal accessory and is not made for a particular vehicle. It is universal fit for cars. The letter is adhesive mounted, so confirm the surface and wire route on your vehicle before placing it.
Installation notes
Use Oracle’s VHB primer on the mounting surface for a stronger bond. A hole may be required to route the wire, and the routing depends on the vehicle, so plan it before the adhesive is pressed down.
What’s included
One illuminated LED letter M in matte black, with its wire and VHB double-stick adhesive.
