Overview

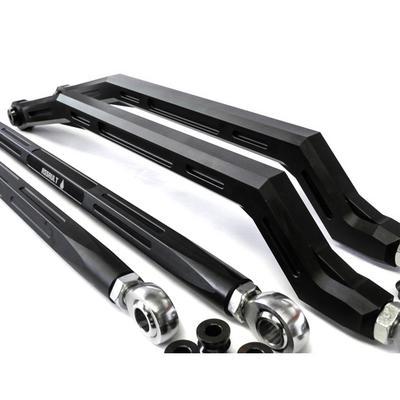

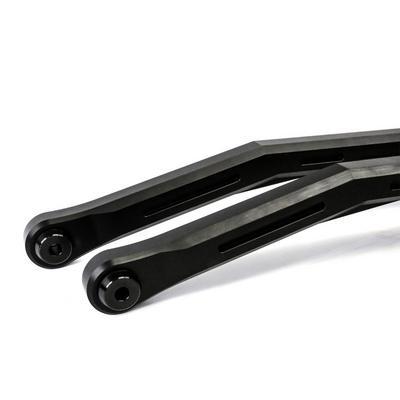

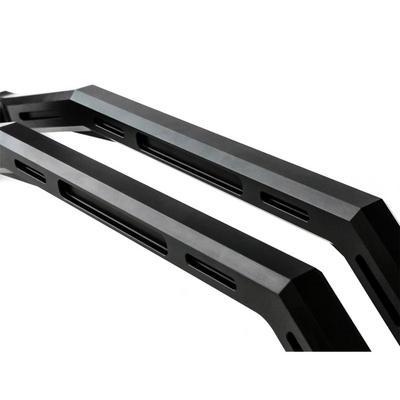

The high clearance radius rods, part number ASI201010RR2521, are aluminum radius rods for Polaris RZR Turbo series UTVs. They add undercarriage clearance on uneven terrain.
The rods are machined from 6061-T6 aluminum and hard anodized black, with polished, adjustable end-links. Assault says they are designed and made in California from aircraft grade materials, and that the kit performs beyond OEM specifications.
Key features
- Machined from 6061-T6 aluminum
- Hard anodized black finish
- Polished, adjustable end-links
- Adds undercarriage clearance on uneven terrain
Adjusting the radius rods
Radius rods control axle position under load, so changing their length alters caster, pinion angle and steering feel. Adjustable end-links let you set the geometry, but each change should be followed by an alignment check. Work in small steps and mark the original positions so you can return to a known baseline.
Rod ends and bushings take the most movement, so inspect them after hard use for play, cracks or grit damage. Mounting points see more direct load when the rods are firmly clamped, so check them after rough sessions. Keep the bolts and jam nuts snug and recheck them after the first few hard runs.
- Mark original end-link positions before adjusting
- Recheck alignment after every length change
- Inspect rod ends for play after hard use
- Consider shock length and bump stops when raising clearance
Specifications
| Brand | Assault Industries |
|---|---|
| Part number | ASI201010RR2521 |
| Material | 6061-T6 aluminum |
| Finish | Hard anodized black |
| End-links | Polished, adjustable |
| Made in | California, per the manufacturer |
Vehicle fitment
The kit is for the Polaris RZR Turbo series. Model years are not covered in detail, so match your year and model to the series before ordering.
Models outside the Turbo series are not covered by this kit. Match your year, model and trim before ordering.
Installation notes
Because the end-links are adjustable, set their length to your suspension geometry and have the alignment checked after the rods are installed.
What’s included
The kit includes the high clearance radius rods with their polished, adjustable end-links.
