Cognito Motorsports Radius Rod Cage – 360-90007

Cognito Motorsports

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Double capture system strengthens the frame-side radius rod mounts
  • No cutting or welding required
  • Fits 2014–2017 RZR XP 1000 and XP 4 1000, and 2016 Turbo models
  • An upgrade over the stock unit
  • Part number 360-90007

Description

Overview

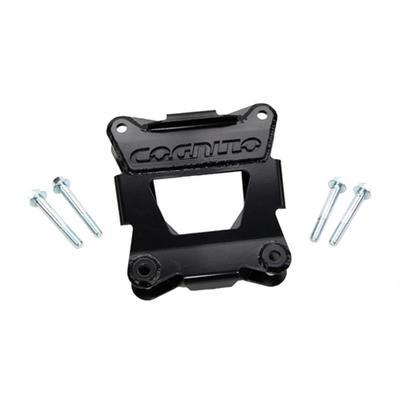

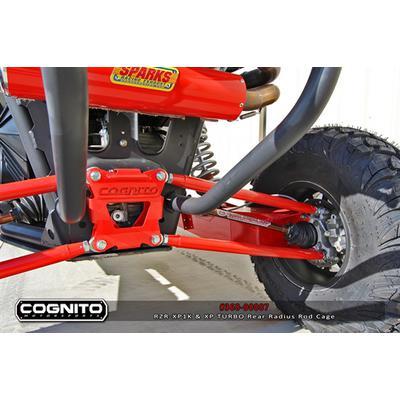

The Radius Rod Cage, part number 360-90007, strengthens the frame-side mounting locations for the upper and lower radius rods on the Polaris RZR models it fits. It uses a double capture system to hold the rods more securely at the frame.

The cage is built for both recreation and competition use. The stock radius rod unit can fail under hard use, and the cage is an upgrade over it. No cutting or welding is needed to install it.

Key features

  • Double capture system at the frame-side mounts
  • Strengthens the mounting locations for upper and lower radius rods
  • No cutting or welding required
  • Designed for recreation and competition use
  • An upgrade over the stock unit for frame-side rod mounts

Frame mounts under load

Radius rods transfer axle loads into the frame, so the frame-side mounts take a lot of force during hard acceleration, braking and landings. When those mounts flex or crack, the rods lose their position and the axle can move out of line. Frame-side reinforcement helps keep the rods where they are meant to be.

A cage that works through the existing mounts is easier to install when the mounts are clean and straight. Remove dirt and debris before fitting, and check the bolt holes for elongation. Confirm the rods move freely in the cage without binding, since a tight fit can add stress to the ends.

Recheck fasteners after the first few rides, and inspect the mounts after rough trail work or any impact. If a mount shows cracking, replace the affected part before continuing to use the vehicle hard.

  • Clean and inspect frame mounts before fitting
  • Check bolt holes for elongation
  • Recheck fasteners after the first few rides

Specifications

Brand Cognito Motorsports
Part number 360-90007
Mount design Double capture system
Mounting location Frame side, upper and lower radius rods
Installation No cutting or welding required

Vehicle fitment

It fits the 2014–2017 Polaris RZR XP 1000 and RZR XP 4 1000, and the 2016 Polaris RZR XP Turbo and RZR XP 4 Turbo.

Other RZR model years and the RZR S, RZR 900 and General models are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires no cutting or welding. The cage pairs with the adjustable radius rods, which fit the same vehicles.

What’s included

Check the package contents against your installation before starting.

Fitment

VehicleYearsTrims
Polaris RZR XP 10002014–2017EPS Base, EPS Fox Edition Base
Polaris RZR XP 4 10002014–2017EPS Base
Polaris RZR XP 4 Turbo2016EPS Base
Polaris RZR XP Turbo2016EPS Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the radius rod cage need welding?

No. The cage needs no cutting or welding to install. It is an upgrade over the stock unit, which can fail under hard use.

Why do I need a cage with the radius rods?

The stock radius rod unit can fail under hard use. The cage strengthens the frame-side mounting locations for the upper and lower rods, which helps hold them more securely.

Which RZRs does the cage fit?

It fits the 2014–2017 RZR XP 1000 and XP 4 1000, and the 2016 RZR XP Turbo and XP 4 Turbo. Other model years are not covered. Confirm your year and trim before ordering.

How do I know if the radius rod mounts need attention?

Look for cracks or elongated holes at the frame-side mounts, loose fasteners, and movement of the rods when the axle moves. Inspect the mounts after rough trail runs and before any race or long trip.
