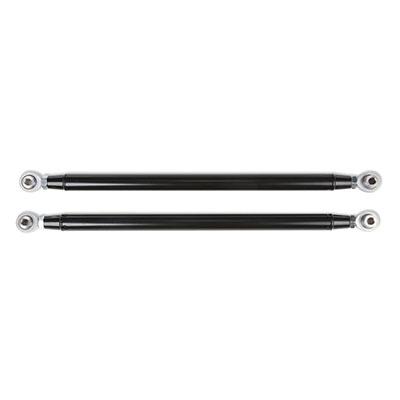

Cognito Motorsports OE Replacement Adjustable Upper Straight Radius Rod Kit – 360-90397

Cognito Motorsports

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Adjustable upper straight radius rod with an OE replacement design
  • Chromoly tubing and rod ends
  • Fits 2014–2017 RZR XP 1000 and XP 4 1000, plus 2016 Turbo models
  • Cognito strongly recommends the radius rod cage if not already installed
  • Part number 360-90397

Description

Overview

The Cognito Motorsports OE Replacement Adjustable Upper Straight Radius Rod Kit, part number 360-90397, is an adjustable upper radius rod kit designed as a direct OE replacement. A radius rod keeps the rear axle located fore and aft, so the upper rods are a structural part of the rear suspension.

The rods are built with chromoly tubing and rod ends, and the kit is designed to increase strength over OE radius rods without adding weight. Installing the Cognito Radius Rod Cage is advised if the cage is not already installed.

Key features

  • Adjustable length
  • Direct OE replacement design
  • Straight upper radius rod design
  • Chromoly tubing and rod ends
  • Cognito says strength rises without added weight over OE rods
  • Cage strongly recommended for installation

Radius rods and axle location

A radius rod holds the rear axle in place fore and aft as the suspension cycles. When the rods flex, bend or loosen, the axle can shift, causing wheel hop, uneven braking or clunking over bumps. Because the rods carry those loads, any sign of bending or wear at the ends is a reason to inspect the whole assembly.

Set the rod length with the axle in its normal position, then confirm the axle sits square and the rods are not binding at full suspension travel. Adjustable rods make it easier to correct axle position, but the length should be set with care and checked after any suspension or axle work.

Rod ends and the frame mounts take the most stress. Check the ends for play, the threads for damage, and the frame mounts for cracks. Tighten the jam nuts after each length change, and inspect the rods after rough runs or hard landings.

  • Check rod ends for play
  • Set length with the axle in normal position
  • Tighten jam nuts after any length change

Specifications

Brand Cognito Motorsports
Part number 360-90397
Rod type Upper straight radius rod
Adjustment Adjustable
Material Chromoly tubing and rod ends
Weight No added weight over OE radius rods.
Recommended companion Cognito Radius Rod Cage

Vehicle fitment

It fits the 2014–2017 Polaris RZR XP 1000 and 2014–2017 Polaris RZR XP 4 1000, as well as the 2016 Polaris RZR XP Turbo and RZR XP 4 Turbo.

Other RZR model years, the RZR S, the RZR 900 and General models are not covered.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Cognito strongly recommends the Cognito Radius Rod Cage if it is not already installed. The rods are adjustable, so set the length during installation.

What’s included

Check the package contents against your installation before starting, including whether the radius rod cage is part of your order.

Fitment

VehicleYearsTrims
Polaris RZR XP 10002014–2017EPS Base, EPS Fox Edition Base
Polaris RZR XP 4 10002014–2017EPS Base
Polaris RZR XP 4 Turbo2016EPS Base
Polaris RZR XP Turbo2016EPS Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this radius rod kit fit a 2016 RZR XP Turbo?

Yes. It fits the 2016 Polaris RZR XP Turbo and the 2016 RZR XP 4 Turbo, along with the 2014–2017 RZR XP 1000 and XP 4 1000. Confirm your year and trim before ordering.

Do I need the radius rod cage?

Yes, the cage is advised if it is not already installed. Check the package contents against your installation before starting, since the cage may need to be ordered separately.

Are the rods stronger than OE?

Yes. The kit is designed to add strength over OE radius rods without adding weight, and it uses chromoly tubing and rod ends.

How do I set the length of adjustable radius rods?

Set the length with the rear axle at its normal position, then check that the axle sits square and the rods are not binding. Recheck the length after any suspension or axle change.
