Overview
The ARB BP5160011L is an Old Man Emu BP-51 high performance bypass package from ARB 4×4 Accessories, made for the 2005 on Toyota Tacoma. It is a complete front and rear set, not a single shock, and the year and generation should be confirmed before ordering.
Old Man Emu’s engineers tuned the BP-51 package for both the last generation Tacoma and the new generation. Adjustable bypass design lets the same package suit either application, and ARB notes subtle differences between the two generations. The front coilovers and rear shocks are each described separately in the features below, and both are covered in the package list.
Key features
- Front coilovers tuned in length and feel for the Tacoma
- Designed for a 2 inch (50mm) ride height increase with at least 2″ (50mm) of down travel
- Front coilovers adjustable in height and designed for setups with and without accessories such as bumpers and winches
- Reservoir brackets for reservoir placement and sway bar relocation at the spring seat

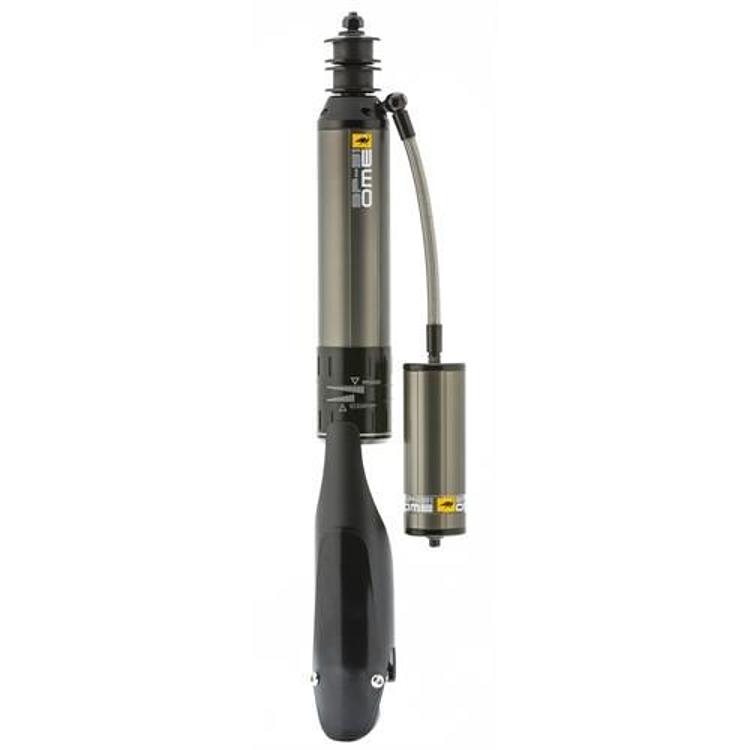

- Rear shocks tuned in length and valving for the Tacoma, with a lower mount bracket for axle clearance
- Rear shocks tuned to match the existing range of Old Man Emu rear springs
Setting up a bypass coilover
A bypass shock sends oil through a separate chamber, which lets the damper control fluid flow more precisely than a standard twin-tube unit. On a truck that sees both highway speeds and rough trails, that tuning can keep the ride composed around town while still controlling the vehicle when the suspension is pushed hard. Remote reservoirs add room for oil, which helps the damper run cooler on long descents.
Ride height changes affect how much travel is left before the bump stops, so coilovers should be set to the height and load the truck carries most of the time. Adding a winch, bumper or heavy gear changes the front weight and may call for different settings. Adjustable rebound and compression give room to adapt, but small changes at a time make the results easier to judge.
Because the front and rear units are sold as a set, replace them together so the truck handles evenly from front to rear. Inspect the shaft guards, bushings and hoses periodically for abrasion or leaks, and keep the reservoir mounts tight. Worn bushings can cause clunks that resemble a failed shock.
- Set ride height before adjusting damping
- Check reservoir mounts and hoses after installation
- Inspect bushings for wear at each service
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | BP5160011L |
| UPC | 9332018041371 |
| Package contents | 2 front coilovers, 2 rear shock absorbers, 2 fit kits |
| Adjustability | Adjustable |
| Ride height change | 2 inch (50mm) increase |
| Fitment type | Direct fit |
Vehicle fitment
It is made for the 2005 on Toyota Tacoma. Confirm the year and generation on your vehicle before ordering, because last generation and new generation trucks differ.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
ARB recommends hardware kit VM80010017 to complete installation. The supplied fitting instructions list recommended compression and rebound settings for each spring option, and they include reservoir placement details for the shock absorber.
What’s included
The package contains 2 front coilovers, 2 rear shock absorbers and two fit kits. The rear fit kit includes the reservoir brackets.
