ARB Locker and Differential Air Locker Package for Dana 30/Dana 44 – DIFF4430

ARB 4x4 Accessories

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Air-operated selectable locker for Dana 30 and Dana 44 differentials, converting an open differential to a full spool.
  • Needs an ARB onboard air compressor to activate the locker.
  • The compressor kit runs a single locker or a dual front and rear system, with a 100 psi cut-off switch setting.
  • Compressor draws 9 amps with no load and 20 amps at full load.
  • Part number DIFF4430, UPC 700007718121, no vehicle fitment listed.

Description

Overview

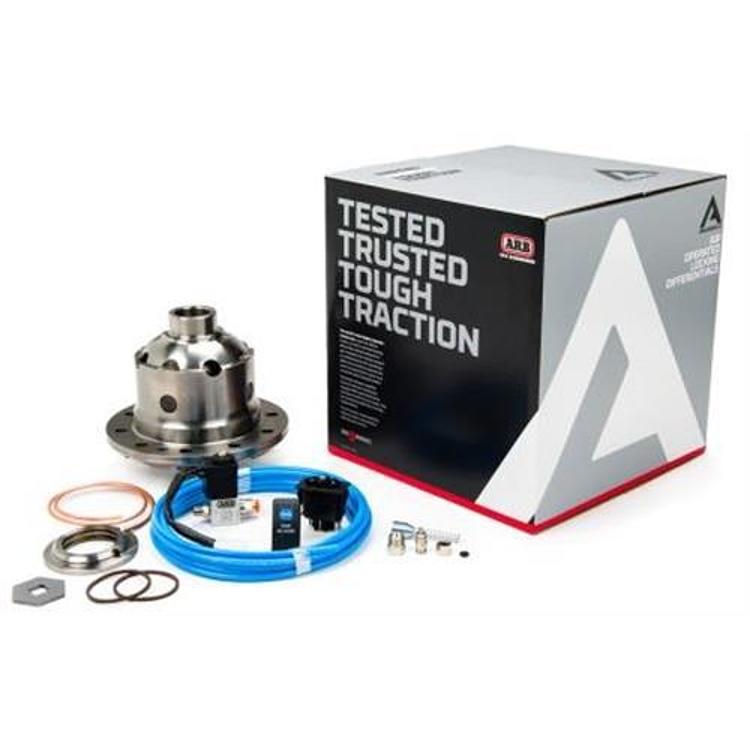

The ARB DIFF4430 is an air locker package for Dana 30 and Dana 44 differentials, built around a pneumatic locking differential. Air pressure engages the lock so both axle shafts turn together, and the differential works as a full spool that sends power to both wheels.

A locked differential keeps the vehicle moving when one wheel loses traction on rough ground, where an open differential would send power to the spinning wheel. This locker is built for rough terrain. It needs an ARB onboard air compressor to operate, and the compressor is an integral part of the air locker system. The same compressor can also refill a low tire.

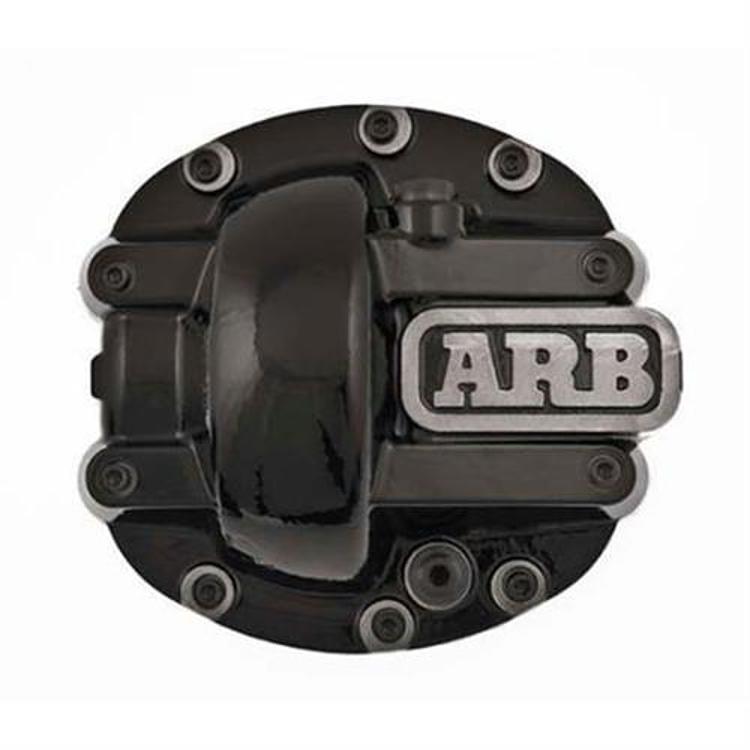

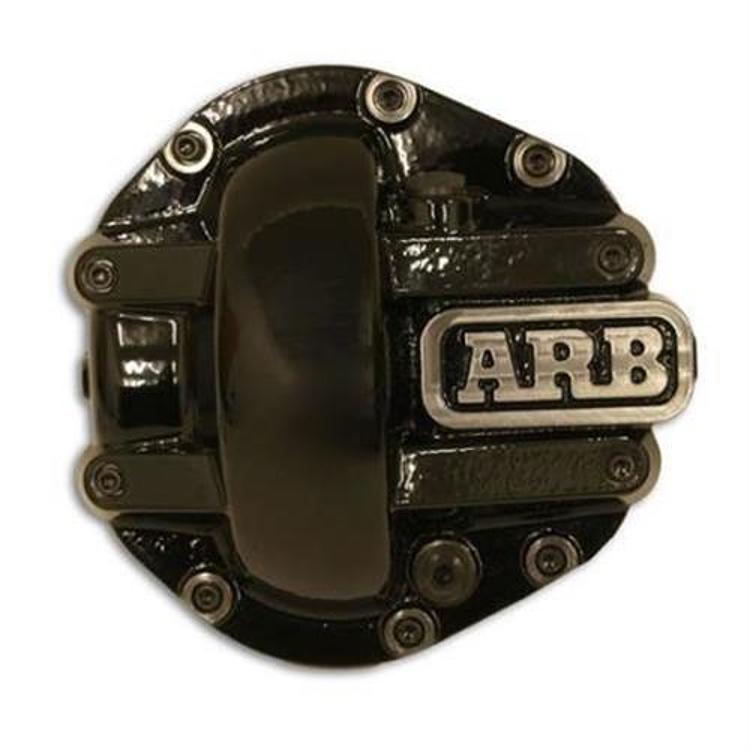

A differential cover made of high tensile nodular iron protects the differential and the ring and pinion set from off-road hazards. Its cross brace design stiffens the axle housing, and neodymium magnets in the drain plug and dipstick collect metal wear particles. Check the package contents against your installation before starting.

Key features

  • Pneumatic selectable locker that converts an open differential to a full spool.
  • Engaged locker supplies full power to both wheels.
  • Compressor kit operates a single locker or a dual front and rear locker system.

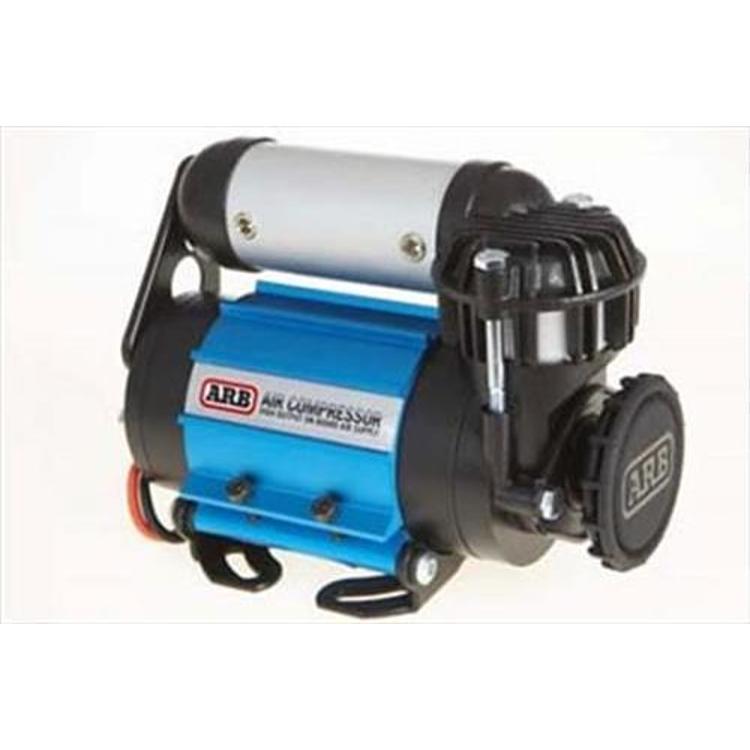

  • Compressor has a die cast aluminum storage tank and oil-less operation.
  • Compressor pressure switch and wire loom are part of the compressor kit.

Compressor and locker upkeep

A compressor that runs an air locker works hard during each engagement, so its intake, filter and tank need occasional checks. Keep the intake clear of mud and debris, and drain any moisture from the tank when the unit has been used in wet conditions. Air lines should be checked for chafing near the frame and axle, because a small leak can keep the locker from engaging.

Electrical connections on the pressure switch and wire loom should be inspected for corrosion and tightened where needed. Differential fluid should be inspected at normal intervals, and the neodymium magnets in the drain plug and dipstick can be checked for metal debris as part of that routine. Recheck mounts and the backing plate after the first few off-road trips.

  • Clear the compressor intake
  • Drain moisture from the tank
  • Check air lines for chafing
  • Inspect switch and loom connections

Specifications

Brand ARB 4×4 Accessories
Part number DIFF4430
UPC 700007718121
Differential type Selectable air locker
Axle type Dana 30 Standard, Dana 30 and Dana 44
Axle location Front and rear
Compressor pressure 100 psi cut-off switch setting
Compressor current draw 9 amps with no load, 20 amps at full load
Compressor tank Die cast aluminum, oil-less operation
Cover material High tensile nodular iron
Drain plug and dipstick Neodymium magnets

Vehicle fitment

The package is built for Dana 30 and Dana 44 differentials, with the Dana 30 Standard axle type. It is an axle-specific locker, not a universal part, and it is not made for other Dana axles or non-Dana housings. Confirm your axle type before ordering.

This is an axle-specific locker, not a universal part. It is not written for other Dana axles or non-Dana housings.

Installation notes

The locker cannot engage without the ARB compressor. The compressor mounts with its clamp and backing plate, and the pressure switch and wire loom route its wiring. Air lines and wiring around a differential are best handled by an installer who works on axles regularly, because a wiring or air line error can keep the locker from engaging.

What’s included

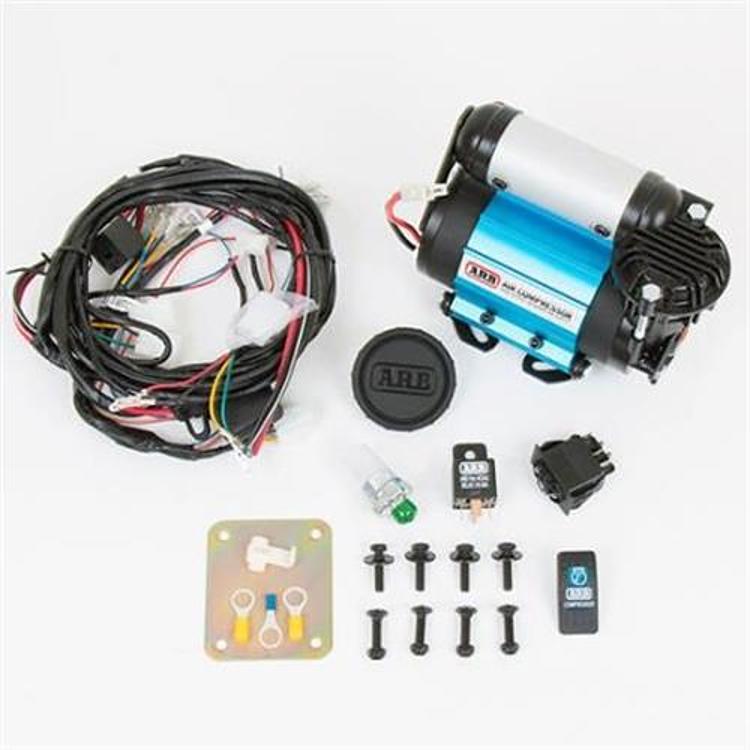

The compressor kit includes a pre-assembled compressor, mounting clamp, backing plate, pressure switch, wire loom and all the mounting hardware. Check the package contents against your installation before starting.

Not included: Check the package contents against your installation before starting, including whether the differential cover is part of your order.

SKU: ARBDIFF4430 Categories: ,

Specification

Shipping weight 81.00 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does this air locker need a compressor?

Yes. An ARB onboard air compressor is required to activate the air locker. The compressor is an integral part of the air locker system, and the same compressor can also refill a low tire.

Will the ARB compressor run a front and rear locker?

Yes. The compressor kit runs a single locker or a dual front and rear locker system. Check the package contents against your installation before starting to confirm how many lockers you are getting.

How much current does the ARB compressor draw?

It draws 9 amps with no load and 20 amps at full load. The compressor has a 100 psi cut-off switch setting, an oil-less design and a die cast aluminum storage tank.

Does this package fit Dana 30 and Dana 44 axles?

The package is made for Dana 30 and Dana 44 differentials. Confirm your axle type before ordering, since fit depends on the axle rather than the vehicle.

Does the ARB differential cover protect against off-road hazards?

It is designed to protect the differential and the ring and pinion set from off-road hazards, and the cover is made of high tensile nodular iron. Check the package contents to confirm whether it is included.

What usually points to a locker that will not engage?

It often points to the air side or the electrical side. Check that the compressor runs, that the air lines are not leaking, and that the switch and wire connections are clean and tight. A quick check of these before a trail trip saves time.
