Overview

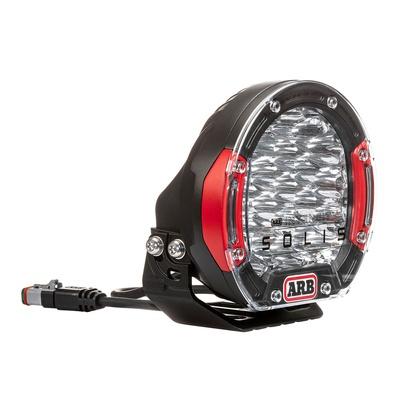

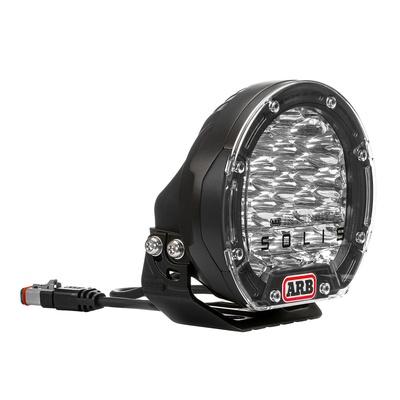

The ARB Intensity Solis 21 Spot Driving Light, part number ARBSJB21S, is a single 7 inch LED driving light with a spot optic and a surface mounting location. It is universal fit, so it is not designed for a specific make, model or year.

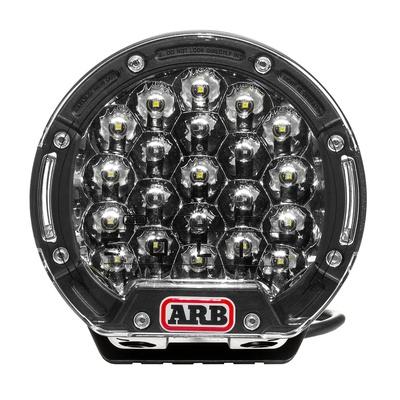

ARB built the Solis 21 for long-distance driving. The 21 LEDs, made up of 15 4W and 6 5W units, are intended to throw light far down the road while keeping a clean, crisp white color that the company says reduces eye strain on long trips.
The spot optic concentrates the beam, so it reaches further ahead than a flood. A spot paired with a flood gives both distance and width, and the Solis 21 is available as a spot and flood kit for that purpose.
Key features
- 7 inch diameter housing
- 21 LEDs in 15 4W and 6 5W units
- Spot optic for distance
- Surface mounting location
- Digital touchpad dimming with pre-programmed brightness settings

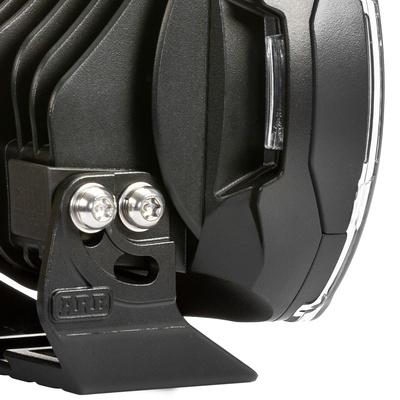

- High pressure die cast bracket

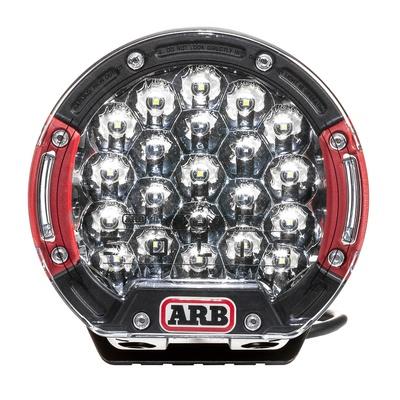

- Optional red or black bezel inserts
- Integration with the ARB LINX system through the optional Linx controller harness
Aiming a spot light
A spot beam is narrow, so the aim does most of the work. Set the angle so the hot spot lands on the track ahead at the speed you normally drive, rather than on the sky or the bonnet. Small changes in tilt move the beam a long way down the road, so take time over the setting.
Surface mounting leaves the position to the bracket and the bar, so the light can sit low or high depending on the setup. Check that the housing is clear of the bar edges and that the beam will not dazzle drivers coming the other way. Recheck the aim after the first few trips, since bolts can settle under vibration.
- Level the vehicle before setting the aim
- Mark the bracket position once the beam is right
- Tighten bolts in stages and recheck them
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | ARBSJB21S |
| Light series | Intensity Solis 21 |
| Type | Driving light |
| Beam pattern | Spot |
| Diameter | 7 inch |
| LEDs | 21 total: 15 4W and 6 5W |
| Mounting location | Surface |
| Dimming | Digital touchpad with pre-programmed settings |
| Sold as | Single |
| Fitment | Universal fit |
Vehicle fitment
It is universal fit and is not sized for a specific vehicle. Because it mounts to a surface, the mounting position and the bracket on your vehicle decide where it sits.
Installation notes
Plan the wiring before mounting, because the dimming control and LINX integration use a loom that is sold separately as an optional accessory. A fused relay is the usual way to supply a light drawing this much current, and local rules on driving lights should be checked before use on public roads.
What’s included
The package is a single spot light with its digital touchpad control.
Not included: the Linx controller harness and the switch override loom, which are optional accessories.
