Overview

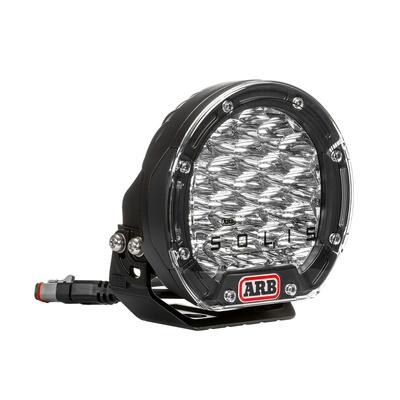

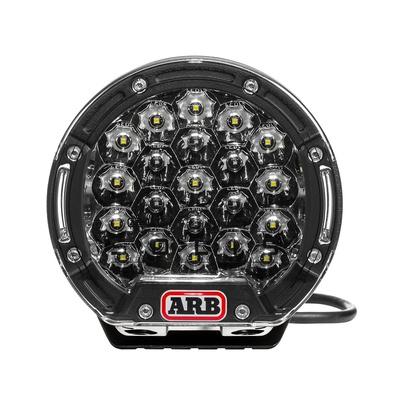

The ARB Intensity Solis 21 Flood Driving Light, part number ARBSJB21F, is a single 7 inch LED driving light with a flood optic. It is universal fit, so it is not built for one make, model or year, and it is designed for long-distance driving with a crisp, clean white light.
The color temperature is refined to reduce eye strain and fatigue on long drives. The 21 LEDs are made up of 15 4W LEDs and 6 5W LEDs, and the Solis 21 is the smaller model in the range, compared with the 9 inch Intensity Solis 36.
The flood optic spreads light across the width of the road rather than focusing it into a narrow spot. Pairing a flood with a spot light gives both distance and width, which is why the Solis 21 is also available as a spot version and as a spot and flood kit.
Key features
- 7 inch diameter housing
- 21 LEDs made up of 15 4W and 6 5W units
- Flood optic for a wide light field
- Digital touchpad dimming with pre-programmed brightness settings

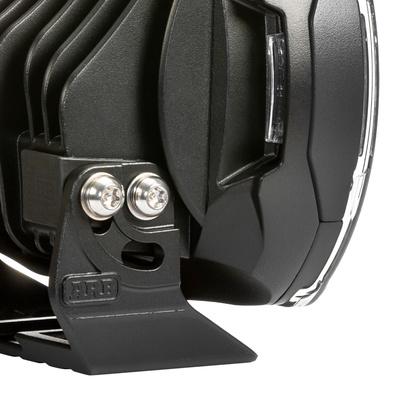

- High pressure die cast bracket for mounting

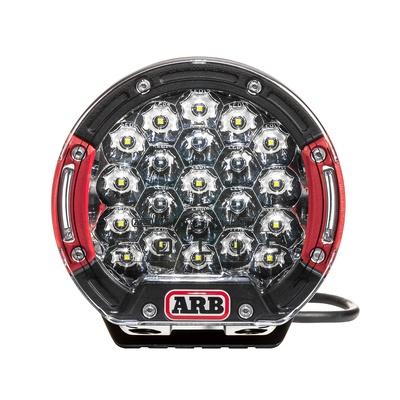

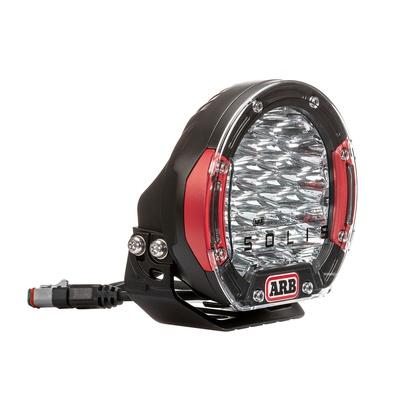

- Optional red or black bezel inserts
- LINX integration through the optional Linx controller harness
- Optional switch override loom for use without dimming
Choosing a flood or spot setup
A flood light suits low-speed trails, forest tracks and driving where you need to see the edges of the road. Because the beam is wide, it fills the area beside the vehicle, which helps when the track narrows or bends. Many drivers who run only one light choose a flood for these conditions, then add a spot later if they regularly travel faster on open roads.
If you plan to run the Solis 21 alongside another light, match the beam pattern to the gap in your coverage. A flood paired with a spot covers both distance and width. Think about mounting height and angle, since both change how far the beam reaches and how much glare reaches oncoming drivers.
- Count the light sources you want on the front of the vehicle
- Check the wiring loom and controller before buying accessories
- Plan a fused supply sized for the light’s current draw
Specifications
| Brand | ARB 4×4 Accessories |
|---|---|
| Part number | ARBSJB21F |
| Light series | Intensity Solis 21 |
| Beam pattern | Flood |
| Diameter | 7 inch |
| LEDs | 21 total: 15 4W and 6 5W |
| Dimming | Digital touchpad with pre-programmed settings |
| Mounting bracket | High pressure die cast |
| Sold as | Single |
| Fitment | Universal fit |
Vehicle fitment
It is universal fit and is not sized for a specific vehicle. The mounting position depends on the bar or bracket you use, so plan the fitting for the vehicle you are installing it on.
Installation notes
The dimming control and the LINX integration depend on the wiring, so plan the loom and controller before mounting the light. Driving lights of this size draw enough current to need a fused relay, and local rules on driving lights vary, so check them before using the light on public roads.
What’s included
The package is a single light with the Solis 21 flood optic and its digital touchpad control.
Not included: the Linx controller harness and the switch override loom, which are optional accessories.
