AirDog PureFlow 150 Fuel Preporator – A4SPBF171

AirDog PureFlow

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 1999–2003 Ford F-250 and F-350 Super Duty and the 2000–2003 Ford Excursion, listed trims only
  • Rated for up to 800hp
  • Single piece pump body with frame mounting and no drilling
  • Boxed with a relay harness, fuel mounting hardware set, plastic ties and an installation manual

Description

Overview

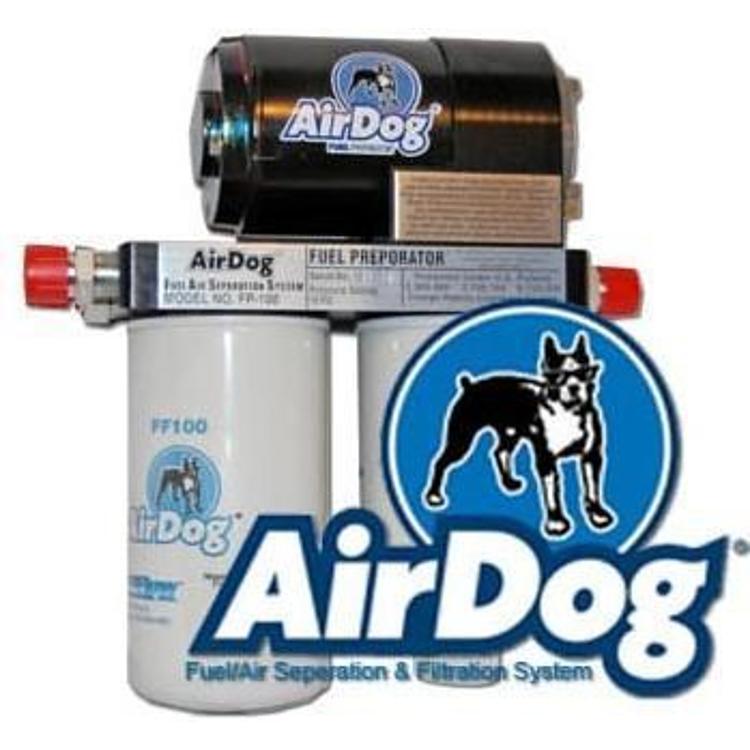

The AirDog PureFlow 150 Fuel Preporator, part number A4SPBF171, is a lift pump and fuel preporator unit for the 1999–2003 Ford F-250 Super Duty and F-350 Super Duty, and the 2000–2003 Ford Excursion. It is rated for up to 800hp and is a direct fit for those vehicles.

Think of it as a conditioning stage placed ahead of the engine feed. Fuel leaves the tank under vacuum carrying air, vapor, particles and some moisture. A water separator strips out the water and larger particles before the fuel pump, and the filter then catches the remaining particles while separating entrained air and vapor. That separated air goes back to the tank after the regulator. The regulator holds the pressure the engine needs and returns the extra fuel to the tank, and the Excursion is the only listed model that is not a Super Duty truck.

Key features

  • Rated for up to 800hp.
  • Single piece pump body in place of the older 3 piece design, with fewer parts and a smaller, lighter unit.
  • Low profile assembly that does away with gaskets prone to leaking.
  • Frame mounting with no drilling.
  • Relay harness and fuel mounting hardware are supplied with the unit.
  • Plastic ties and an installation manual are also supplied.

Signs the fuel system needs attention

Fuel delivery problems often show up under load first. Hesitation during acceleration, a drop in power when towing, or a stall after the engine has warmed up can all point to restricted flow or air in the supply. A failing lift pump or a clogged separator can cause these symptoms before the engine ever fails to start, so they are worth taking seriously.

When the preporator is installed, look at the rest of the fuel system at the same time. The tank pickup, lines and fittings should be free of cracks and leaks, and the regulator should return surplus fuel correctly. Keeping the separator and filter on a regular service plan helps the whole system stay consistent.

  • Watch for hesitation under load
  • Look for leaks at fittings
  • Check the regulator return line

Specifications

Brand AirDog PureFlow
Part number A4SPBF171
UPC 813094016716
Product type Fuel preporator and lift pump unit
Power rating Up to 800hp
Pump body Single piece
Mounting Frame mount, no drilling
Included hardware Fuel mounting hardware, relay control wiring harness, plastic ties, installation manual

Vehicle fitment

The manufacturer fitment list includes the 2000–2003 Ford Excursion (Eddie Bauer, Limited, XLT), the 1999–2003 Ford F-250 Super Duty (Lariat, XL, XLT) and the 1999–2003 Ford F-350 Super Duty (Lariat, XL, XLT).

Verify year, model and trim against your vehicle before ordering. Models such as the F-450 Super Duty and F-150 need a separate fit check.

Installation notes

Mounting to the frame needs no holes drilled, and the supplied fuel mounting hardware is used for it. The relay control wiring harness handles the electrical side, and the included installation manual covers the wiring steps. Battery disconnection comes first, before the relay harness is wired.

What’s included

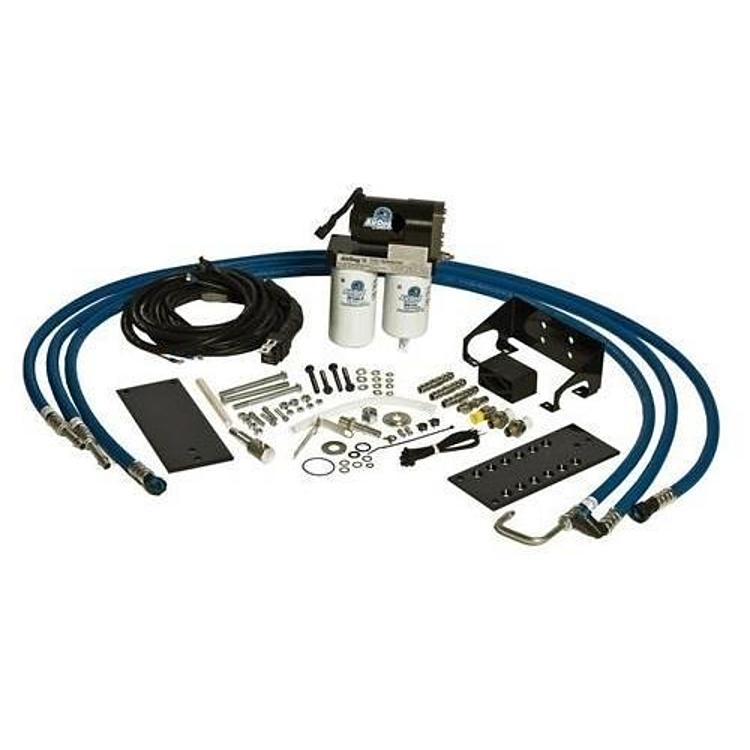

Boxed with the PureFlow 150 unit: a relay harness, the fuel mounting hardware set, plastic ties, and an installation manual.

SKU: A/DA4SPBF171 Category:

Specification

Shipping weight 27.00 lbs
Package dimensions 19.00 × 13.00 × 7.00 in
brands

Fitment

VehicleYearsTrims
Ford Excursion2000–2003Eddie Bauer, Limited, XLT
Ford F-250 Super Duty1999–2003Lariat, XL, XLT
Ford F-350 Super Duty1999–2003Lariat, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the PureFlow 150 A4SPBF171 fit a 2003 Ford F-350 Super Duty?

Yes, the 1999–2003 Ford F-350 Super Duty is in the manufacturer fitment list, for the Lariat, XL and XLT trims. Confirm your vehicle's year, model and trim before ordering.

Is the PureFlow 150 rated for 800hp?

Yes. It is rated for up to 800hp. It uses a single piece pump body and a filter that separates entrained air and vapor from the fuel.

What is included with the A4SPBF171?

Boxed with the unit: a relay harness, the fuel mounting hardware set, plastic ties, and an installation manual. Part number A4SPBF171 and UPC 813094016716 identify the unit.

Does the PureFlow 150 need drilling to mount?

No drilling is required. The unit mounts to the frame, and the kit supplies the mounting hardware needed for the install.

Can a fuel preporator be added to a stock fuel system?

Yes, many owners add one ahead of the stock pump as a supplement. The surrounding parts must still be in good condition, so check the tank pickup, lines and fittings for leaks and cracks before installing it.
