  • Addictive Desert Designs Stealth front bumper with winch mount, part F012932450103, for the 2010-2014 Ford F-150 SVT Raptor
  • Combined winch mount and bumper; winch plate limit 10,500 lbs
  • Stealth panels included; Hammer black and Satin black
  • Light mounts for 40-inch and 20-inch bars and four Duallys

Description

Overview

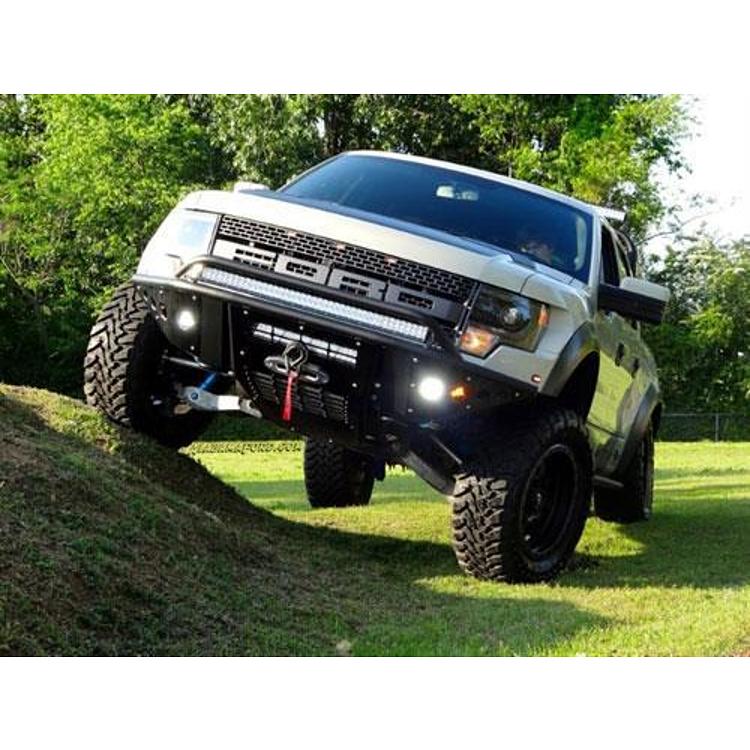

The Addictive Desert Designs Stealth front bumper with winch mount, part number F012932450103, is a steel front bumper for the 2010-2014 Ford F-150 SVT Raptor that combines a winch mount and the bumper in one piece. It is finished in Hammer black with Satin black Stealth panels.

The Stealth is a hybrid of the traditional pre-runner bumper and the enclosure style of the Venom bumper. Its design keeps airflow and performance intact while hiding the core support and other components. It has a direct fit with no welding, a dual color combination and fully boxed frame horns.

The winch plate limit is 10,500 lbs, and Addictive Desert Designs says to use only winches at or under this approved pull rate to retain the bumper warranty. The top mount takes a 40-inch light bar, the lower mount a 20-inch light bar and the side mounts four Duallys. The skid plate does not include vents.

Key features

  • Winch mount combined with the bumper
  • Winch plate limit of 10,500 lbs
  • Fully boxed frame horns
  • Direct fit, no welding
  • Dual color combination, Hammer black and Satin black
  • Stealth panels included
  • Top mount for a 40-inch light bar and lower mount for a 20-inch light bar
  • Side mounts for four Duallys
  • Made in the U.S.A.

Winch plate limits and pull

A combined winch mount and bumper ties the winch load directly into the front frame, so the plate rating and the way the winch is used matter a great deal. The winch plate limit is 10,500 lbs, and staying at or under that pull rate keeps the bumper warranty valid. Check the winch’s weight and rated pull before mounting, and keep the total load within the limit when adding a snatch block or a heavy hook.

The winch cable should spool evenly and be inspected for fraying. Check the bolts and plate welds after each recovery, since a single hard pull can loosen fasteners that were fine on the trail before. Side mounts for four Duallys and the light bars add weight to the front end, so keep the wiring and brackets tight after rough trails.

  • Match the winch to the plate limit
  • Use a snatch block for steep pulls
  • Inspect the cable before each use
  • Recheck plate bolts after a recovery

Specifications

Brand Addictive Desert Designs
Part number F012932450103
UPC 70000707142
Product Stealth front bumper with winch mount
Material Steel
Bumper color Hammer black
Panel color Satin black
Finish Powder coat
Width Full
Position Front
Winch plate limit 10,500 lbs
Top mount 40 in light bar
Lower mount 20 in light bar
Side mount Four Duallys
Skid plate vents Not included
Winch mount Included
Light mounts Included
D-ring mount Not included
Origin Made in the U.S.A.

Vehicle fitment

It fits the 2010-2014 Ford F-150 SVT Raptor. The version without a winch mount is F012892450103.

Other F-150 model years are not in the list, and the version without a winch mount is F012892450103. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The bumper is a direct fit with no welding. Keep the winch within the 10,500 lbs plate limit, and wire the lights through a fused relay.

What’s included

  • Stealth front bumper with winch mount
  • Stealth panels
  • Light mounts

Not included: the winch, lights and D-rings.

SKU: ADSF012932450103 Category:

Specification

Shipping weight 175.00 lbs
Package dimensions 87.00 × 46.00 × 30.00 in
brands

Fitment

VehicleYearsTrims
Ford F-1502010–2014SVT Raptor

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the ADD F012932450103 fit a 2010-2014 Raptor?

Yes. It fits the 2010-2014 Ford F-150 SVT Raptor, and it is a direct fit with no welding required. Verify your vehicle's year, model and trim before you buy.

What winch can the F012932450103 take?

The winch plate limit is 10,500 lbs. Use only winches at or under this approved pull rate to retain the bumper warranty.

Does this Stealth bumper include a winch mount?

Yes. This F012932450103 is a combination winch mount and bumper in one piece. The version of the Stealth without a winch mount is F012892450103.

What lights does the F012932450103 take?

The top mount takes a 40-inch light bar, the lower mount takes a 20-inch light bar and the side mounts take four Duallys. Lights are not included.

What signs show the winch mount needs inspection?

Look for cracked welds, loose bolts and paint that has flaked in a line along the plate. Movement at the mounting points or a winch that does not sit square are also reasons to stop and check. Repair or replace damaged parts before the next recovery.
