Overview

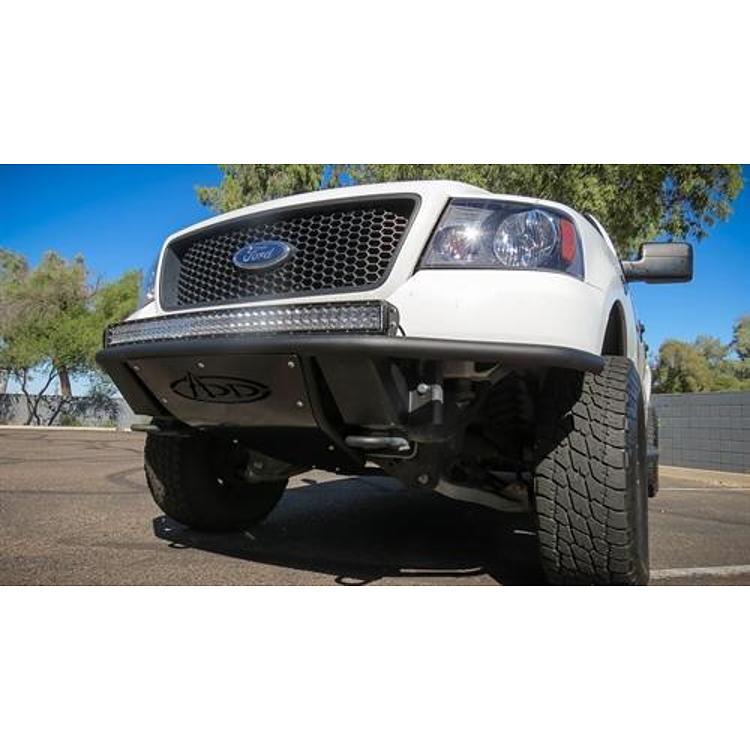

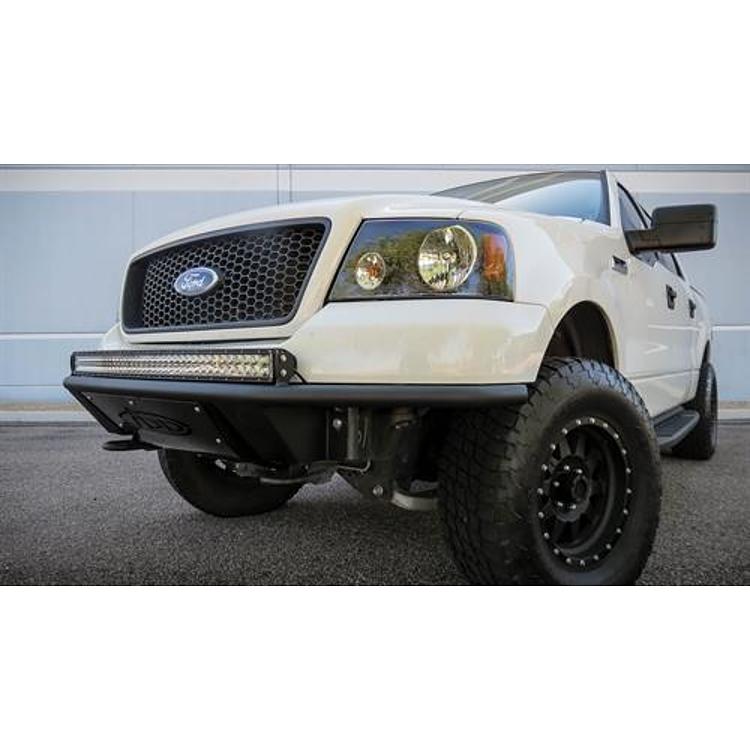

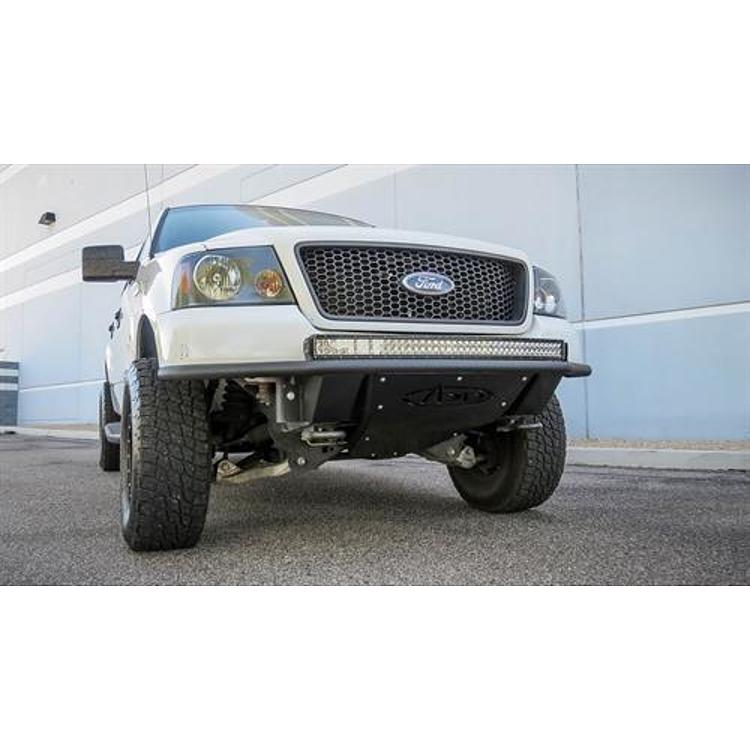

The Addictive Desert Designs ADD Lite Front Bumper, part number F033832940103, is a steel front bumper replacement for 2004–2008 Ford F-150 trucks. It finishes in Hammer black with a Satin black skid plate and is built around a top-mounted lighting platform.
The ADD Lite has a low-profile skid plate that does not attach to the truss, which leaves room to install a suspension kit. Radius bars, straight bars and cube lights can all go on its Universal Lighting System, which is patent pending.
Key features
- Top light mount takes up to 10 cube lights, or a radius straight bar and cube combination
- Low-profile skid plate that does not attach to the truss, so a suspension kit can be installed
- Bolt-on application with no cutting or welding
- Hammer black powder coat bumper with a Satin black skid
- Optional top hoop is available from the manufacturer
- Made in the USA
Suspension clearance
A low-profile skid plate that stays separate from the truss gives suspension work room to move, and it keeps the bumper from carrying loads that come through the frame. Before a lift is installed, check the clearance between the new suspension parts and the skid plate. Tire size, ride height and steering angle all change how close the bumper sits to the ground and to the tires.
After a suspension change, recheck the bumper bolts and the light brackets, because the front end moves on a new geometry. Look for rub marks on the skid plate and the tires, and adjust the setup if the bumper hits the ground on articulation. Plan the lift and the bumper as one project so the front end fits together cleanly.
- Check clearance with the new suspension installed
- Recheck bumper bolts after the first drive
- Look for rub marks on tires and the skid plate
- Confirm light bracket alignment after the lift
Specifications
| Brand | Addictive Desert Designs |
|---|---|
| Part number | F033832940103 |
| UPC | 700007513141 |
| Product type | Front bumper (ADD Lite) |
| Position | Front |
| Width | Full |
| Material | Steel |
| Finish | Powder coat |
| Bumper color | Hammer black |
| Skid plate color | Satin black |
| Light mounts | Included, top mount for up to 10 cube lights |
| Winch mount | Not included |
| D-ring mount | Not included |
| Installation | Bolt on, direct fit |
Vehicle fitment
It fits the 2004–2008 Ford F-150, including the FX2, FX4, Harley-Davidson Edition, King Ranch, Lariat, Limited, STX, 60th Anniversary Edition, XL and XLT trims.
It is made for 2004–2008 F-150 trucks. Compare your truck’s year, model and trim with this fit before you buy.
Installation notes
It is 100% bolt on, so no cutting or welding is needed. The skid plate is separate from the truss, so a suspension kit can be fitted with the bumper in place.
What’s included
- ADD Lite front bumper in Hammer black
- Satin black low-profile skid plate
- Light mounts for the top lighting platform
Not included: The lights themselves, a winch and D-ring mounts. This bumper has no winch mount.
