Overview

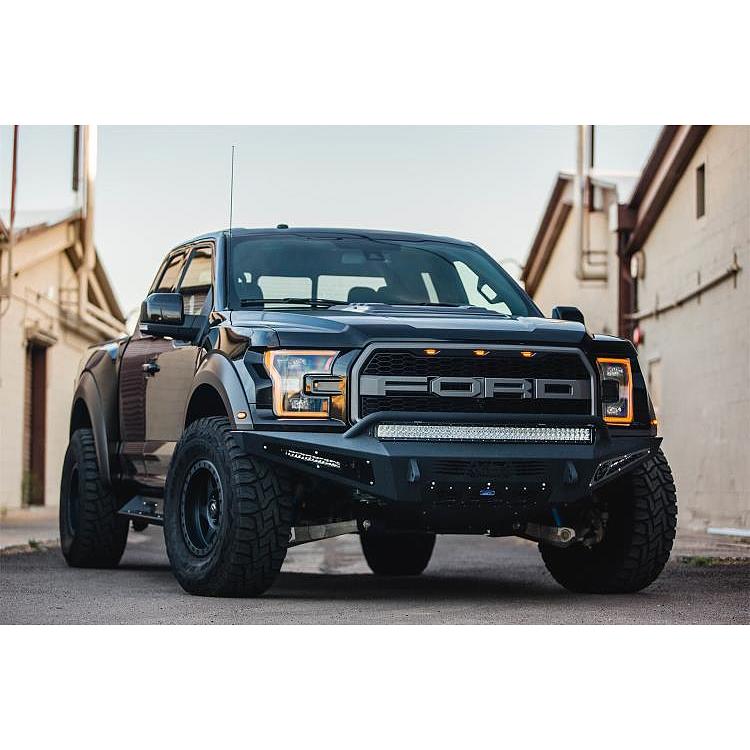

The Addictive Desert Designs HoneyBadger Front Bumper, part number F117432860103, is a steel front bumper for the 2017–2018 Ford F-150 Raptor. It is made with 1/8″ external steel plating and a 3/16″ internal structure, with a removable 1/8″ aluminum skid plate and accent panels.
Reinforced clevis mounts made from 1″ steel accommodate a 3/4″ D-ring. The universal top mount takes up to 10 Duallys or a 40″ straight or radius LED bar, and the side panels can hold a Rigid Industries 10″ LED and a Dually on each side. A vented skid plate and integrated scoop direct airflow to the intercooler of the 2017 Raptor. The bumper is styled to suit the truck while protecting the front end components, with added ground clearance and a better approach angle. Light mounts are part of the bumper, so the lights are the only lighting items left to choose.
Key features
- 1/8″ external steel plating over a 3/16″ internal structure
- Removable 1/8″ aluminum skid plate and accent panels
- Reinforced 1″ steel clevis mounts designed for a 3/4″ D-ring
- Top mount for up to 10 Duallys or a 40″ straight or radius LED bar
- Side lighting options for a Rigid Industries 10″ LED and Dually
- Vented skid plate with scoop for intercooler airflow
Mounts, clevis and maintenance
Clevis mounts take the load when a D-ring is used for a pull, so inspect the weld seams and the hole edges around each one. Cracks often start at the weld toe and spread under repeated loading. Tighten any hardware that has come loose and replace worn pins or shackles before using them in a recovery.
A removable skid plate is handy for cleaning and inspection, but it should be reinstalled with sound hardware before rocky trail use. Powder coat chips on steel rust if left bare, so touch them up with matching paint. Keep the scoop and vents clear as part of regular washing.
- Inspect clevis weld seams after each recovery
- Replace worn D-ring pins
- Touch up powder coat chips early
Specifications
| Brand | Addictive Desert Designs |
|---|---|
| Part number | F117432860103 |
| UPC | 814849023874 |
| Product type | Front bumper (HoneyBadger) |
| Position | Front |
| Width | Full |
| Material | Steel |
| External plating | 1/8″ steel |
| Internal structure | 3/16″ steel plating |
| Skid plate and accent panels | 1/8″ aluminum, removable |
| Clevis mounts | 1″ steel, for a 3/4″ D-ring |
| Finish | Powder coat |
| Bumper color | Hammer black |
| Panel color | Satin black |
| Top mount | 10 Dually or universal light bar mounts |
| Side mount | 10″ light bar and Duallys |
| Light mounts | Included |
| Winch mount | Not included |
Vehicle fitment
It fits the 2017–2018 Ford F-150 Raptor, with its design built around the 2017 model.
Other F-150 trims and model years fall outside this fit. Line up your truck’s year, model and trim before you order.
What’s included
- HoneyBadger front bumper in Hammer black
- Removable aluminum skid plate and Satin black accent panels
- Light mounts
Not included: The lights, a winch and D-ring shackles.
