Overview

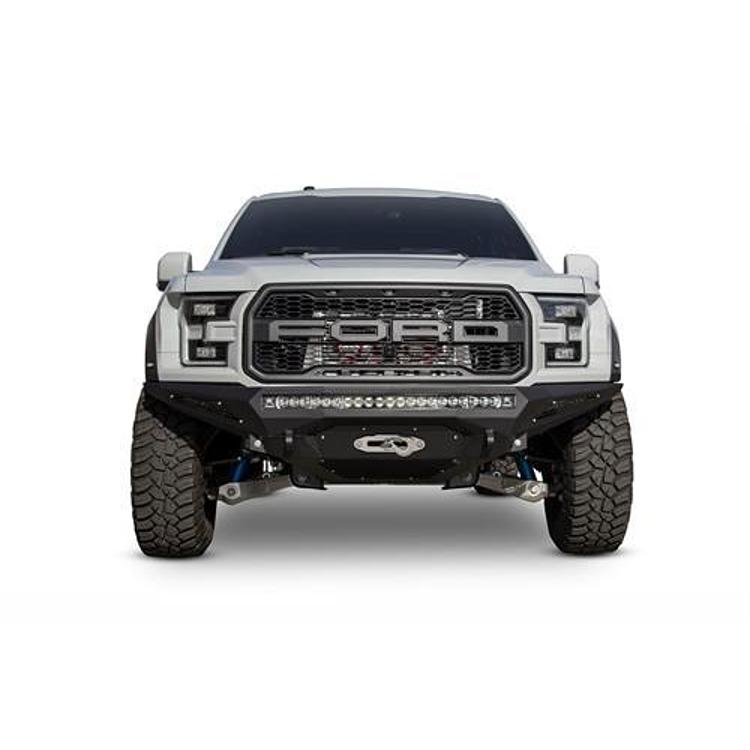

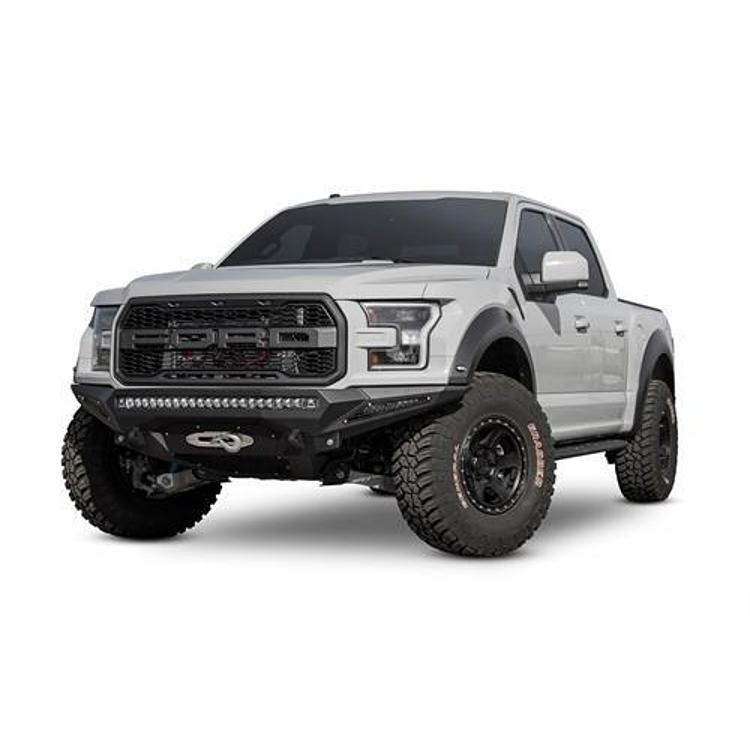

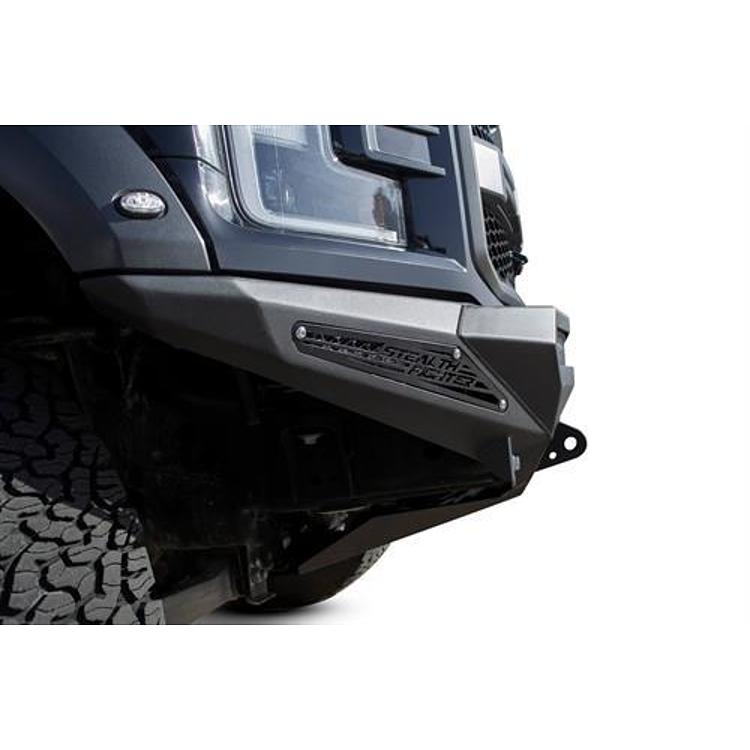

The Addictive Desert Designs Stealth Fighter Front Bumper, part number F111202860103, is a bolt-on steel winch bumper for the 2017–2018 Ford F-150 Raptor. It measures only 1/2″ farther from the grille than the factory bumper and uses a modern radius plate design.
The center has a universal light mount for up to 10 cube lights or a 40″ straight or radius LED, and the sides have mounts for RIGID 10″ SR LEDs. Reinforced clevis mounts accept 3/4″ D-rings. A winch mount is included, and a winch on the 2017 Raptor requires the Intercooler Relocation Kit, part number AC11151203. The side mounts take RIGID 10″ SR LEDs, so lighting can run across the whole front.
Key features
- Winch mount included
- Tight-fitting radius plate design, 1/2″ farther from the grille than the factory bumper
- Universal center light mount for up to 10 cube lights or a 40″ straight or radius LED
- Mounts for RIGID 10″ SR LEDs on the sides
- Reinforced clevis mounts designed for 3/4″ D-rings
- Fully bolt-on, made in the U.S.A.
Planning a recovery setup
Before mounting a winch, look at the whole front end: the bumper, the mount, the fairlead position and the cable path. A clean path keeps the cable from rubbing sharp edges, and a fairlead that lines up with the drum reduces wear. Think about where the rope or strap will load the bumper, since a shackle pulled at an angle puts side force on the clevis mounts.
Use D-rings and shackles rated for the recovery you expect, and inspect them for bent pins and worn threads. Store recovery gear where it stays dry, and keep wiring away from the intercooler area so heat and moving parts cannot damage it.
- Match shackle ratings to the winch line
- Inspect D-rings for bends and worn pins
- Keep winch wiring away from the intercooler
Specifications
| Brand | Addictive Desert Designs |
|---|---|
| Part number | F111202860103 |
| UPC | 814849024376 |
| Product type | Front winch bumper (Stealth Fighter) |
| Position | Front |
| Width | Full |
| Material | Steel |
| Finish | Powder coat |
| Bumper color | Hammer black |
| Panel color | Satin black |
| Distance from grille | 1/2″ farther than the factory bumper |
| Center light mount | Up to 10 cube lights or a 40″ straight or radius LED |
| Side light mounts | RIGID 10″ SR LEDs |
| D-ring size | 3/4″ |
| Winch mount | Included |
| D-ring mount | Included |
Vehicle fitment
It fits the 2017–2018 Ford F-150 Raptor.
Other F-150 trims and model years fall outside this fit. Check your truck’s year, model and trim against this fit before ordering.
Installation notes
On the 2017 Raptor, a winch can only be installed with ADD’s Intercooler Relocation Kit, part number AC11151203. The bumper is fully bolt-on.
What’s included
- Stealth Fighter front bumper with winch mount
- Satin black panels
- D-ring mounts
Not included: The lights, the winch and the Intercooler Relocation Kit (AC11151203) needed for a winch on the 2017 Raptor.
