Overview

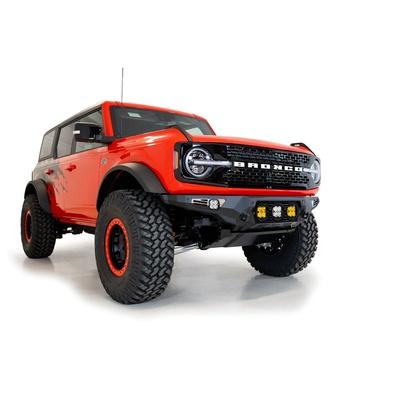

The Addictive Desert Designs Bomber Front Bumper with Baja Designs Light Mounts, part number F230194120103, is a plate steel front bumper for the 2021–2022 Ford Bronco. It is a tight-fitting bumper that follows the contours of the body.

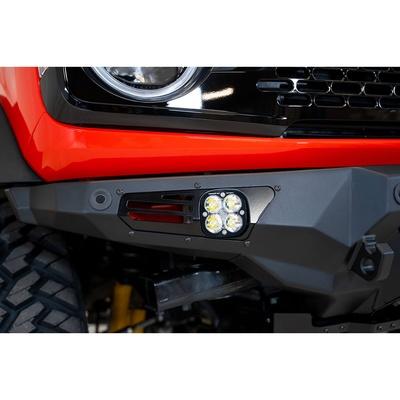

The center of the bumper is a satin black aluminum panel that frames three mounting points for Baja Designs LP4 lights, which are also available with Rigid lighting. The sides have mounting points for cube lights, framed by satin black aluminum panels. The steel is finished in hammer black powder coat.
The approach angle is improved over the factory bumper, and the design gives higher clearance. The OEM parking sensors are built into the bumper, and the tow hooks remain underneath it. Two heavily reinforced clevis mounts take 3/4-inch D-ring shackles for recovery.
An optional 3/16-inch vented aluminum skid plate gives more protection than the factory plastic skid plate. An Adaptive Cruise Control relocation bracket is also available, which keeps the cruise control feature fully working.
Key features
- Plate steel construction with hammer black powder coat
- Three mounting points for Baja Designs LP4 lights in the center
- Cube light mounts on both sides
- Two reinforced clevis mounts for 3/4-inch D-ring shackles
- Improved approach angle and higher clearance
- OEM parking sensors built into the design
- Optional 3/16-inch vented aluminum skid plate
- Adaptive Cruise Control relocation bracket available
Recovery mounts and clearance
Clevis mounts are built for recovery, but they still rely on the right shackles and a clean pull line. Use shackles sized for the mounts, pull as straight as possible, and avoid sharp jerks that load the bumper at odd angles. After a hard recovery, check the mounts, bolts and welds for cracks or movement before the next trip.
A tight-fitting bumper improves approach angle compared with many factory setups, but clearance still depends on tires, suspension and terrain. Keep the skid plate and bumper underside clear of mud and rock buildup, and clean the parking sensors after muddy drives so they keep reading correctly. Inspect the factory tow hook area as well, since it stays under the bumper.
- Use shackles rated for the mounts
- Inspect mounts and welds after recoveries
- Clean sensors after muddy drives
Specifications
| Brand | Addictive Desert Designs |
|---|---|
| Part number | |
| Product type | Front bumper |
| Material | Plate steel |
| Finish | Hammer black powder coat; satin black aluminum panels |
| Width | Full |
| Light mounts | Included: three center points for Baja Designs LP4 lights, cube mounts on each side |
| D-ring mount | Included: two clevis mounts for 3/4-inch D-rings |
| Winch mount | Not compatible |
| Hoop | Not included |
| Stinger | Not included |
| Receiver hitch | Not included |
| Fitment type | Direct fit |
Vehicle fitment
It is a direct-fit front bumper for the 2021–2022 Ford Bronco.
Later model years are not covered, and the Bronco Sport is not covered either. Make sure your truck’s year, model and trim match before ordering.
Installation notes
It is a fully bolt-on bumper. The optional aluminum skid plate and the Adaptive Cruise Control relocation bracket are separate choices, and choosing the aluminum skid plate replaces the factory plastic one.
What’s included
The bumper comes with the center light mounts, the side cube light mounts, the two clevis mounts and the hammer black powder coat finish.
Not included: The Baja Designs LP4 lights, the optional aluminum skid plate and the Adaptive Cruise Control relocation bracket are not included with the bumper.
