Overview

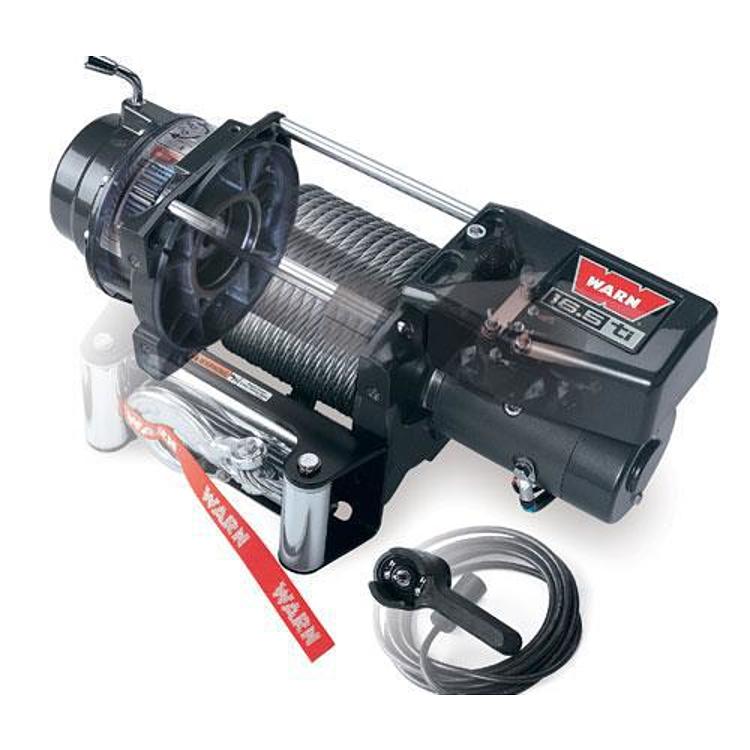

The WARN 16.5ti Thermometric self-recovery winch, part number 68801, is an electric winch rated for 16,500 lb line pull. It pairs a 4.6 HP motor with 90 ft. of 7/16 wire rope.
The winch is rated for 16,500 lb line pull, which suits heavy trucks and SUVs. Its Thermometric technology gives the operator feedback during a pull. It has a universal fit, so it is not matched to a specific model. Check year, model and trim against your vehicle before ordering.
Key features
- 16,500 lb rated line pull
- Thermometric technology for operator feedback
- 12V, 4.6 HP motor
- Gear ratio 315.1
- 90 ft. of 7/16 wire rope
- Roller fairlead
Before you buy an electric winch
An electric winch draws heavy current from the battery, so the charging system and wiring matter as much as the winch itself. Run the power feed with a fuse close to the battery, use cable sized for the load, and keep the connections clean and tight. Weak wiring causes slow pulls and overheating, which shortens motor life.
Wire rope needs regular attention. Spool it under tension, keep dirt and grit out of the layers, and check for kinks, broken strands and corrosion before each trip. A roller fairlead reduces wear as the rope runs out at an angle. A snatch block or tree strap can extend recovery options, but the rope and fairlead should be rated for the load you plan to pull.
- Check battery health before a long day on the trail
- Inspect the remote switch lead for cracks
- Retighten mounting bolts after the first few runs
Specifications
| Brand | Warn |
|---|---|
| Part number | 68801 |
| Model | 16.5ti Thermometric |
| Rated line pull | 16,500 lbs. |
| Voltage | 12V |
| Motor | 4.6 HP |
| Remote control | Remote switch, 12 ft. lead |
| Gear ratio | 315.1 |
| Size | 24.7 in. x 8.5 in. x 9.7 in. |
| Weight | 138 lbs. |
| Wire rope | 90 ft. of 7/16 |
| Fairlead | Roller |
| Line type | Cable |
| Type of winch | Electric |
| UPC | 1274868801 |
Vehicle fitment
No vehicle list is given for this winch. It carries a universal fit designation, so check mounting and clearance for your own truck or SUV.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A winch with a 4.6 HP motor draws heavy current, so use a fused power feed close to the battery.
What’s included
The winch with 90 ft. of 7/16 wire rope and a 12 ft. remote switch lead.
Not included: a bumper and mounting plate sized for this winch.
