Overview

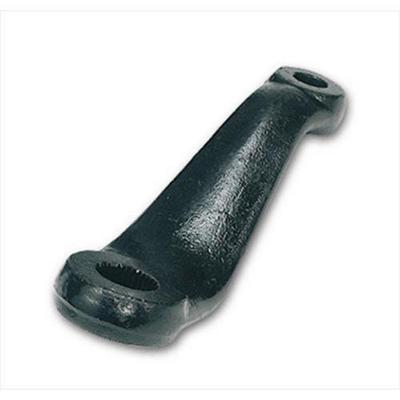

The Tuff Country 70504 is a front drop pitman arm for 6 inch lifts on the 2009-2010 Dodge Ram 2500 and 3500 and the 2011-2018 Ram 2500 and 3500, all with power steering. It drops 4 inches.
Tuff Country says its drop pitman arms correct steering geometry after lifting a vehicle, restoring the turning radius and ending bump steer while helping the steering parts last.
Key features
- Sized for 6 inch lift kits
- Drops 4 inches
- Front position
- Power steering application
- Restores steering geometry and turning radius
Steering on heavy-duty lifts
Heavy-duty trucks with a 6 inch lift run more angle through the steering linkage than lighter trucks, so the pitman arm works harder to keep geometry in check. A drop arm restores the steering geometry the lift changes, which supports the turning radius and helps limit bump steer under load. Towing and loaded beds add weight that puts extra stress on the steering system.
Larger lifts also change the relationship between the steering shaft and the drag link. Check the shaft joints and steering gear mounts once the truck is back on the ground, and watch for binding in the steering at full lock. Because these trucks often carry heavy loads, recheck the steering fasteners more often than on a stock truck.
- Steering shaft U-joints for play
- Drag link ends and tie rods
- Steering gear mounting bolts
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 70504 |
| Lift height | 6 inches |
| Amount of drop | 4 inches |
| Position | Front |
| Steering type | Power steering |
| Fit type | Direct fit |
Vehicle fitment
It fits the 2009-2010 Dodge Ram 2500 and 3500 and the 2011-2018 Ram 2500 and 3500.
Ram 1500 and pre-2009 Ram heavy-duty trucks are not on this list. Confirm your vehicle’s year, model and trim before ordering.
