Overview
The Tuff Country 14612KN is a lift kit with SX8000 shocks for the 1969–1972 Chevrolet K10 and K20 pickups, along with the Blazer, Jimmy and Suburban versions. The kit lifts the front 4 inches and the rear 5 inches, adding height and room for larger tires.

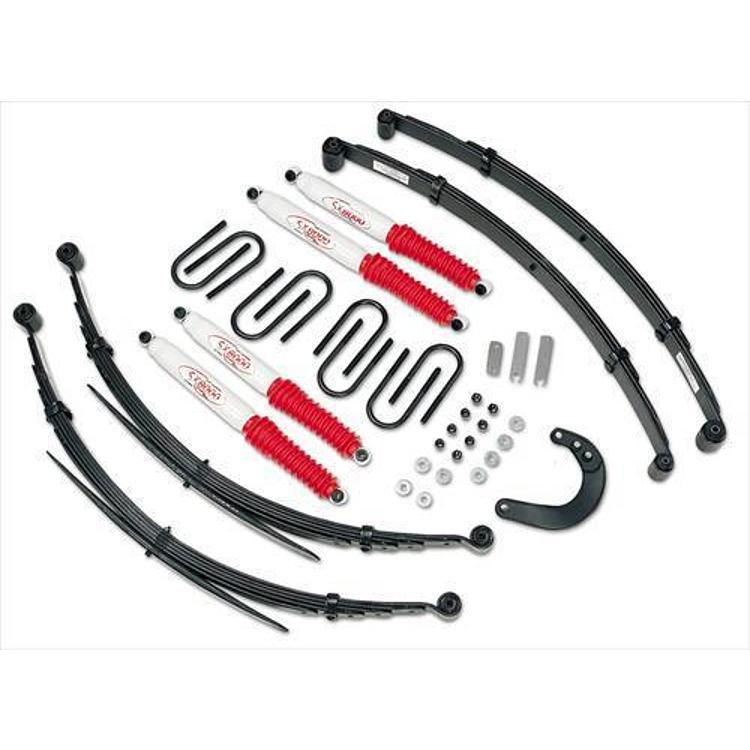

The package includes EZ-Ride front springs, 52 inch rear springs, a steering arm and U-bolts. The steering arm is part of the kit.
The lift height range is 3 to 4.99 inches. The kit gives a 4 inch front and 5 inch rear lift. Confirm the exact lift figures before ordering.
Key features
- SX8000 shocks included
- 4 inch front lift
- 5 inch rear lift
- EZ-Ride front springs
- 52 inch rear springs
- Steering arm and U-bolts included
- Brake line extension kit included
Steering and brake checks
A front lift changes steering geometry, and the difference between front and rear height changes the caster and the way the front end sits under load. After installation, a steering alignment check is the first step, followed by a look at the drag link, tie rod ends and steering stabilizer for stretch or play. Worn ball joints and steering components are often replaced while the front is apart, because it is easier and keeps the new geometry tight.
Brake lines must reach the calipers and the axle without tension at full droop and full compression, so the brake line extension should be fitted and checked during the install. Rear shocks and shock boots are also worth a quick inspection, as they work at a new angle after the lift. Recheck the U-bolts and leaf spring hardware after the first few drives, and watch tire wear across the front and rear.
Specifications
| Brand | Tuff Country |
|---|---|
| Part number | 14612KN |
| UPC | 698815010644 |
| Front lift | 4 inch |
| Rear lift | 5 inch |
| Suspension type | Leaf spring |
| Rear springs | 52 inch leaf springs |
| Shocks | SX8000, included |
Vehicle fitment
It fits the 1969–1972 Chevrolet Blazer (Base), Chevrolet K10 and K10 Suburban, Chevrolet K20 and K20 Suburban, the 1970–1972 GMC Jimmy, and the 1969–1973 GMC K15 and K25 pickups and Suburbans.
Trucks from other years and models fall outside this fit, so match your truck’s year and trim first.
Installation notes
A 4 inch front and 5 inch rear lift changes the steering and brake geometry, so check the steering alignment and the brake line length after installation. The kit includes a brake line extension kit.
What’s included
The kit includes EZ-Ride front springs, 52 inch rear springs, SX8000 shocks, a steering arm, U-bolts and a brake line extension kit.
