Overview

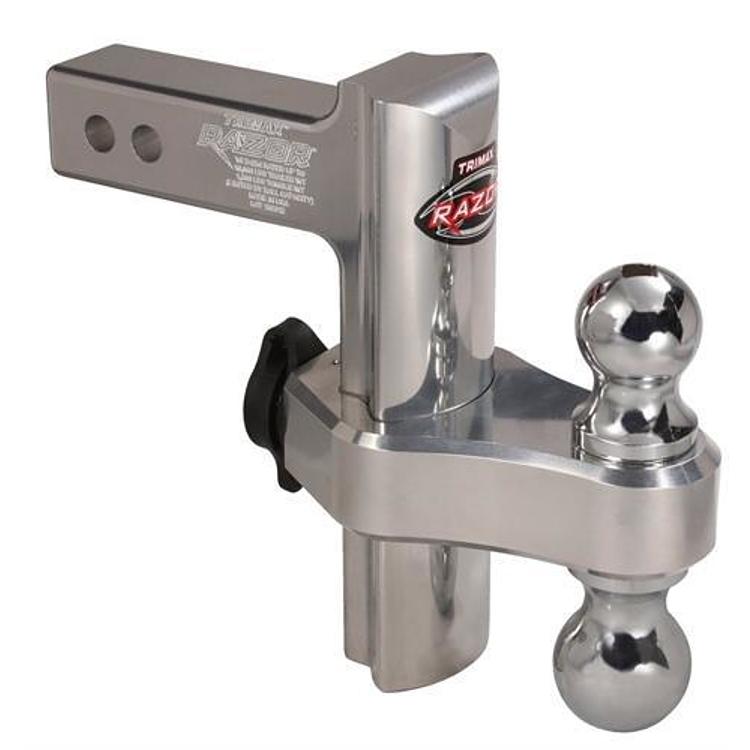

The Trimax Locks TRZ8AL-5 is an 8 inch premium aluminum adjustable receiver hitch for 2 Inches X 2 Inches rear receivers, rated Class III/IV. It is offered as a drop or rise hitch in 6 inch, 8 inch or 12 inch models, and the hitch can be flipped to change between the two.
The hitch adjusts in 1 inch increments and locks into place with a dual hitch ball and T3 receiver lock. It fits with a roll pan. Check the rear receiver size and weight class against your vehicle before choosing a configuration.
Key features
- Adjusts in 1 inch increments and locks into place
- Available in 6 inch, 8 inch or 12 inch drop/rise models
- Can be flipped to be used as a drop or rise hitch
- Dual hitch ball and T3 receiver lock
- Fits with roll pan
Choosing a configuration
An adjustable receiver hitch lets you set the ball height to match the trailer, which helps keep the trailer level. Start by measuring the trailer coupler height with the trailer parked on level ground, then compare it with your tow vehicle’s height. Drop and rise settings suit different setups, so the flip option can be useful if you change trailers.
Adjustment in small steps makes fine-tuning easier. After each change, check that the trailer sits level and that the lock holds the hitch firmly in place. A receiver lock helps keep the hitch from working loose or being removed, so keep its key where you can find it on every trip.
- Check the ball is tight before towing
- Recheck the lock after rough roads
- Keep spare pins and clips in the truck
- Store the unused ball when not in use
Specifications
| Brand | Trimax Locks |
|---|---|
| Part number | TRZ8AL-5 |
| UPC | 797824102606 |
| Material | Premium aluminum |
| Receiver size | 2 Inches X 2 Inches (rear) |
| Weight class | Class III/IV |
| Adjustment increment | 1 inch |
| Drop/rise models | 6 inch, 8 inch, 12 inch |
| Hitch ball | Dual hitch ball |
| Lock | T3 receiver lock |
Vehicle fitment
Match the 2 Inches X 2 Inches rear receiver and Class III/IV rating against your vehicle’s receiver before buying.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
It includes a dual hitch ball and a T3 receiver lock. Check the package contents against your setup before installing.
