Overview

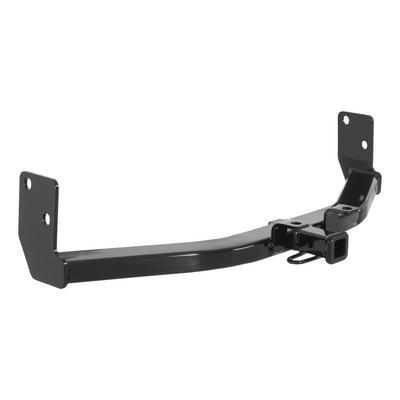

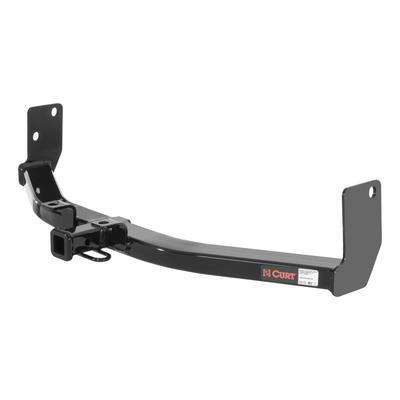

The Curt Manufacturing CRT12070 is a Class II receiver hitch with a 1-1/4-inch receiver, built for the 2010–2016 Cadillac SRX. Each custom hitch is designed for a specific vehicle application, which gives an integrated look on the SRX and a streamlined installation. Its design is developed with hands-on engineering for a precise fit, with real vehicles used to refine the hitch.
It is rated to tow up to 3,500 lbs. gross trailer weight with 350 lbs. tongue weight, suiting a small utility trailer, popup camper or boat trailer. It can also carry a hitch-mounted cargo carrier or bike rack. The hitch is tested to SAE J684 and finished with a co-curing process that covers it inside and out for rust, chip and UV protection.
Key features
- Rated 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
- 1-1/4-inch receiver tube opening accepts any ball mount or accessory with a 1-1/4-inch shank
- Tube cover can be fitted to keep the receiver clean and dry when not in use
- Stringently tested in-house at the Detroit, MI engineering facility to SAE J684
- Liquid Bonderite applied inside and out, then gloss black powder coat cured over it for rust, chip and UV resistance
- Made in the USA with a limited lifetime warranty
Choosing a ball mount
A ball mount is the piece that carries the trailer, so pick one with a shank that matches the 1-1/4-inch receiver and a ball rated for the load you tow. Check the ball diameter against your trailer coupler, and keep the ball’s rating in mind when choosing a drop or rise. A mount with the right rise keeps the trailer level, which reduces sway and tire wear.
Rated loads stack up. The receiver, the ball mount and the ball each have their own limit, and the lowest one sets the real limit. Weigh the trailer loaded, including cargo, and keep tongue weight within its rating. Re-check the pin, clip and hitch bolts after the first few trips, and look for cracks or bends in the receiver tube.
- Match the shank to the 1-1/4-inch opening
- Keep the receiver cover on when the hitch is empty
- Clean the tube before inserting the shank
- Check the trailer ball nut periodically
Specifications
| Brand | Curt Manufacturing |
|---|---|
| Part number | CRT12070 |
| Hitch class | Class II |
| Receiver size | 1-1/4 inches x 1-1/4 inches |
| Gross trailer weight rating | 3,500 lbs. |
| Tongue weight rating | 350 lbs. |
| Finish | Gloss black powder coat over liquid Bonderite |
| Testing standard | SAE J684 |
| Warranty | Limited lifetime |
| Made in | USA |
Vehicle fitment
It is built for the 2010–2016 Cadillac SRX in Base, Luxury, Performance and Premium trims.
Listed model years run from 2010 through 2016, so other SRX years and other Cadillac models are not covered. Confirm your vehicle’s year, model and trim before ordering.
What’s included

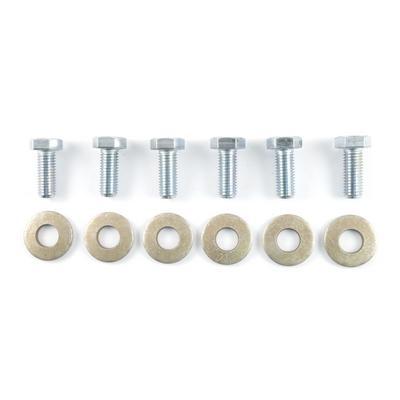

Check the packaging for included hardware before installing, and plan for any fasteners you still need.
Not included: a ball mount or other accessory with a 1-1/4-inch shank is needed to attach a trailer.
