Trail Gear Trail-Creeper T-Case Reduction Gear Kit – 105000-1-KIT

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Trail-Creeper 4.70:1 T-case reduction gear kit, 21 spline
  • For gear driven Toyota transfer cases
  • Replacement gears, gaskets and seals included
  • Fits 1980-1995 Toyota Pickup and 1984-1995 Toyota 4Runner models
  • Part number 105000-1-KIT

Description

Overview

The Trail Gear 105000-1-KIT is a Trail-Creeper T-case reduction gear kit with a 4.70:1 ratio and 21 spline gearing, made for gear driven Toyota transfer cases. It adds low gearing for rock crawling, where lower transfer case gears help keep the truck on track. It fits 1984-1995 Toyota 4Runner and 1980-1995 Toyota Pickup models.

Trail-Creeper gears are offered in 21 and 23 spline configurations; this kit is the 21 spline version, so match the spline count to your transfer case before buying.

Key features

  • 4.70:1 reduction ratio for gear driven Toyota transfer cases
  • 21 spline configuration
  • Input gears precision ground and micro-polished to remove surface imperfections from the forging
  • Kit includes replacement gears, gaskets and seals
  • Companion 23 spline version available

Inspecting gears during a rebuild

When a transfer case is opened for a reduction gear swap, the existing gears and bearings deserve a close look. Tooth faces should be smooth, without pitting, chipping or uneven wear patterns. Bearings should turn freely and quietly. Any part that shows damage should be replaced, because a worn gear can fail under the extra torque that low gearing places on the drivetrain.

Clean every component thoroughly before reassembly, and keep the parts in order so that the shafts and shift components go back where they came from. Gear mesh and backlash affect noise and wear, so the setup is best handled by someone experienced with gear driven cases. Plan a break-in period after the new gears are in service.

Specifications

Brand Trail Gear
Part number 105000-1-KIT
UPC 70000622797
Gear ratio 4.70:1
Spline count 21
Application Gear driven Toyota transfer case
Included Replacement gears, gaskets and seals

Vehicle fitment

The manufacturer fitment list covers the 1984-1995 Toyota 4Runner (DLX, SR5) and the 1980-1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo).

Toyota models and years outside this list are not covered. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Installation requires disassembly and modification of the transfer case, so professional setup is recommended. Plan for a break-in period once the new gears are in service.

What’s included

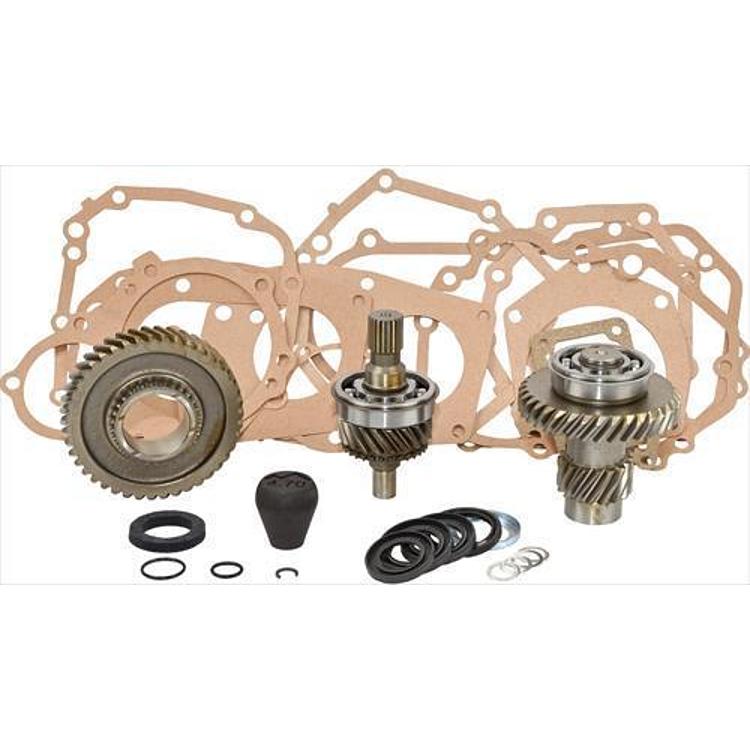

The kit includes replacement gears, gaskets and seals.

Not included: the transfer case itself, which must be disassembled and modified for the gears to fit.

SKU: TGI105000-1-KIT Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 19.00 × 13.00 × 8.00 in
brands

Fitment

VehicleYearsTrims
Toyota 4Runner1984–1995DLX, SR5
Toyota Pickup1980–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is this gear kit the 21 spline or 23 spline version?

It is the 21 spline version. Trail Gear also offers 23 spline Trail-Creeper gears under a separate part number, so match the spline count to your transfer case before ordering.

What ratio does the Trail-Creeper kit provide?

The kit provides a 4.70:1 reduction ratio for gear driven Toyota transfer cases. It includes replacement gears, gaskets and seals, and the transfer case must be disassembled and modified for installation.

Which Toyota trucks does the kit fit?

The kit fits 1984-1995 Toyota 4Runner (DLX, SR5) and 1980-1995 Toyota Pickup (Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo) models. Check your truck's year, model and trim against that list before buying.

What fluid care does a T-case gear kit need after installation?

Use the fluid type the transfer case calls for and refill to the correct level after the new gears have run in. Check the fluid again after the first few trail trips to spot debris or leaks early. Clean fluid helps the new gears wear in evenly.
